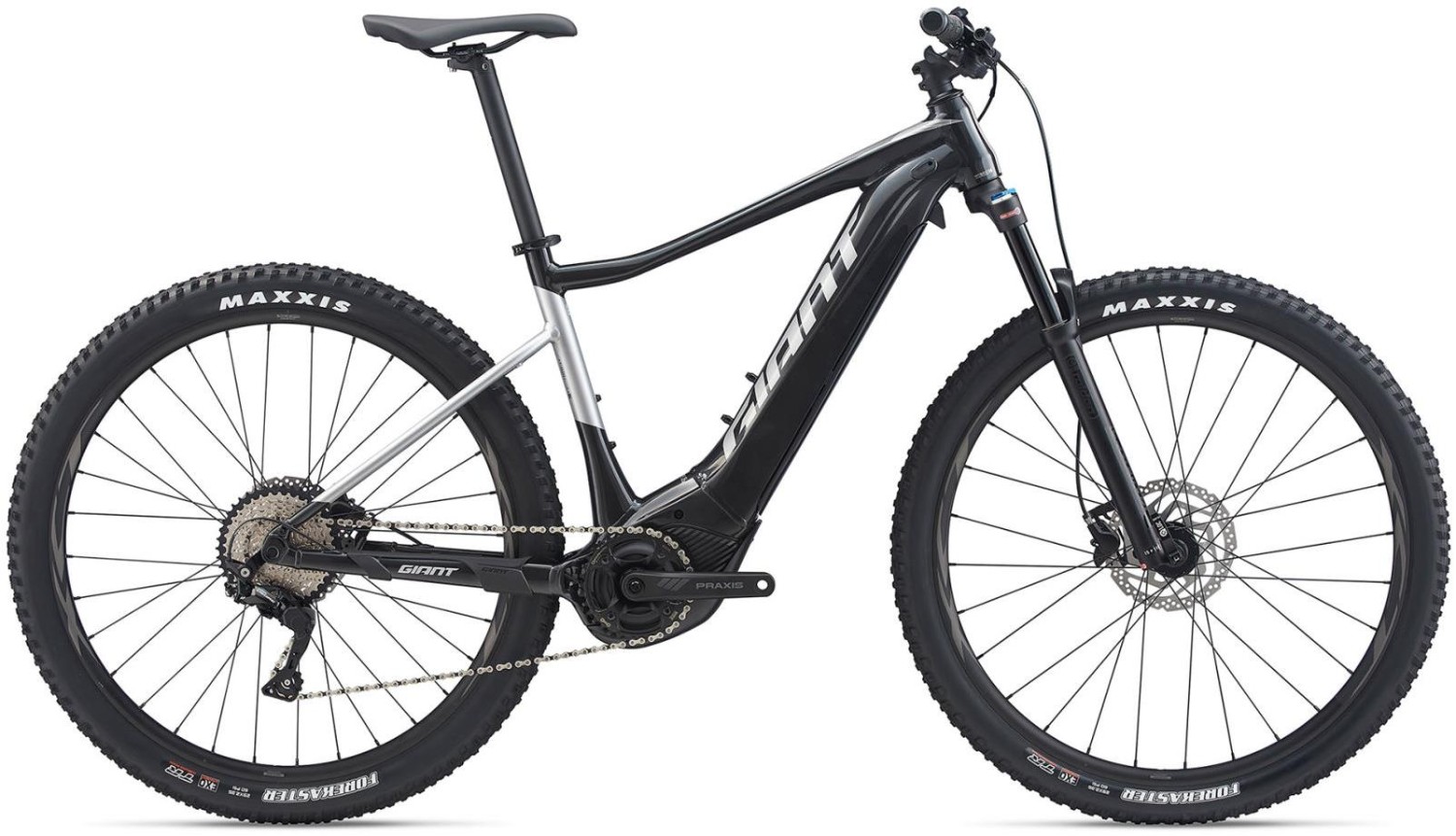

Giant Fathom E+ 2 Pro 29" 2020 - Electric Mountain Bike
Ride rough roads, paths or singletrack with power and control. The Giant Fathom E+ 2 Pro hardtail E-bike helps you conquer hills and challenging terrain in a whole new way.
Key Features:
- ALUXX alloy frame with neatly integrated battery pack
- Sr Suntour Raidon 32 fork offers 120mm of bump soaking suspension travel
- Shimano Deore 1x10 speed drivetrain for a wide gear range
- Shimano hydraulic disc brakes for powerful speed control
- Wheels: 29” with wide 2.35” Maxxis tubeless tyres
- Sizes: Small, Medium, Large, X Large
- Colour: Black
- The Giant Fathom E+ 2 Pro is available with 0% APR finance
Drive Information:
- Motor: Giant SyncDrive Pro, 80Nm powered by YAMAHA, 360% tuneable support
- Battery: Giant EnergyPak 500, 36V 11.3Ah Lithium-Ion Panasonic
- User interface/remote: Giant RideControl ONE, remote button
- Connectivity: Bluetooth & ANT+ connectable
The new Fathom E+ Pro 29er is built on a lightweight ALUXX SL aluminium frame with trail-friendly geometry and a 120mm fork. It has a 500Wh EnergyPak that’s integrated into the downtube and the new and improved RideControl ONE handlebar control buttons. Designed to ride on a variety of terrain, from mild XC to more challenging technical trails, it delivers responsive hardtail handling. The SyncDrive Pro motor technology gives you 360 percent tuneable power which can be adjusted via the Giant E-bike App which also connects you with health, fitness and navigation functions.
Highights:
- Integrated Design
500Wh EnergyPak is integrated into the downtube, and RideControl ONE handlebar control buttons connect with the Ride Control E-bike-specific App for health, fitness and navigation functions. - Total Control
SyncDrive Pro motor technology gives you 360 percent tuneable power so you can adjust your E-bike to ride just the way you like. - Responsive hardtail handling
Aluminium frame is designed for and fitted with a 120mm suspension fork for smooth off-road control.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminum, Overdrive 1½ - 1⅛" head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount |
| Fork | SR Suntour Raidon 32 Boost Air LOR 29, 120mm travel, Tapered 1½ - 1⅛" steerer, lockout |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x780mm |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Brake Lever | Shimano BL-MT200 |
| Rear Mech | Shimano Deore, 10-Speed, Shadow+ |
| Shifters | Shimano Deore |
| Speed | 10 |
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
| Front Hub | Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, 110x15 |
| Rear Hub | Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, 148x12mm Thru-axle, e-bike optimized |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Forekaster 29x2.35, foldable, 60 TPI, EXO, Tubeless Ready |
| Rear Tyre | Maxxis Forekaster 29x2.35, foldable, 60 TPI, EXO, Tubeless Ready |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Giant Sport |
| Chainset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
| Chain | KMC e.10 Sport, e-bike optimized |
| Cassette | Shimano HG50-10, 11-42T, 10-speed |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500wh |
| Motor | Giant |
| User Interface | Giant RideControl ONE |
Giant Fathom E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Fathom E 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 405 | 465 | 505 | 535 |
| SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (mm) | 575 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 105 | 115 | 125 | 140 |
| HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° | 68.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 101.1 | 101.1 | 101.1 | 101.1 |
| WHEELBASE (mm) | 1140 | 1166 | 1192 | 1218 |
| CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 |
| BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 | 45 |
| STACK (mm) | 617 | 626 | 635 | 649 |
| REACH (mm) | 386 | 408 | 430 | 451 |
| STAND OVER HEIGHT (mm) | 753 | 760 | 787 | 791 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Fathom E 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 465 | 505 | 535 |
| SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 115 | 125 | 140 |
| HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 95.7 | 95.7 | 95.7 |
| WHEELBASE (mm) | 1171 | 1197 | 1223 |
| CHAIN STAY LENGTH (mm) | 475 | 475 | 475 |
| BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 |
| STACK (mm) | 626 | 635 | 649 |
| REACH (mm) | 408 | 430 | 451 |
| STAND OVER HEIGHT (mm) | 760 | 787 | 791 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 170 | 170 | 170 |
| WHEEL SIZE | 29 | 29 | 29 |
