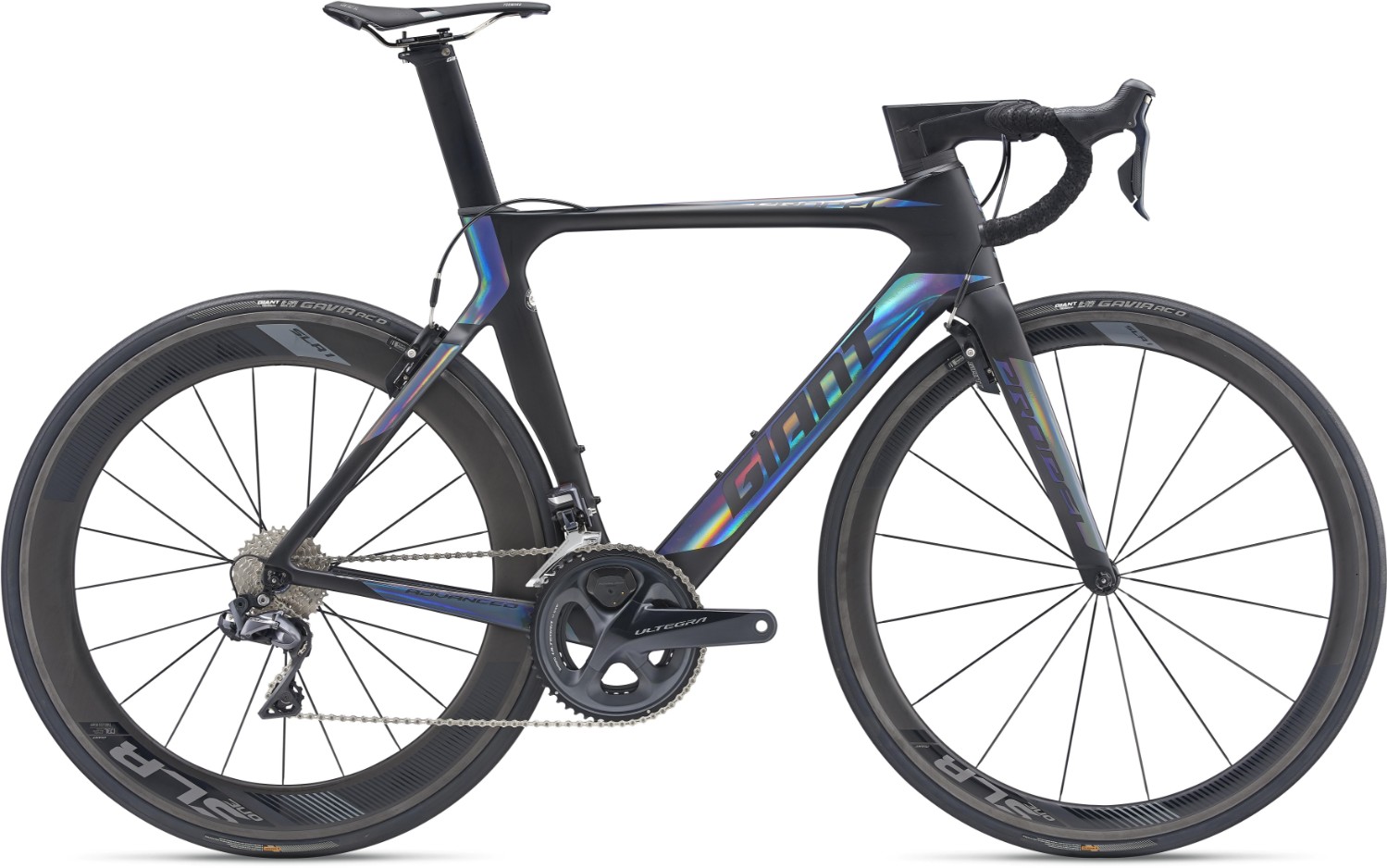

Giant Propel Advanced Pro 0 2019 - Road Bike

For a wind cheating aero advantage. The Giant Propel Advanced Pro 0 is an aero road bike that is built around a lightweight Advanced-Grade carbon frame and full carbon fork. With deep section carbon wheels and an aerodynamic cockpit, all designed as a part of a complete aero package, and dialled road bike handling the Propel will make best use of every watt of power you put down.
Key Features:
- Advanced grade carbon composite frame with cutting edge aero properties
- Full carbon fork is designed as crucial part of the integrated aerodynamic package
- Shimano Ultegra Di2 2x11 speed drivetrain for quick shifting precision
- Giant Speed SL control brakes for improved aerodynamic performance
- Giant SLR 1 carbon aero WheelSystem for more aero gains
- Sizes: Small, Medium, Medium/Large, Large, X Large
- Colours: Carbon/Iris
- The Giant Propel Advanced Pro 0 is available with 0% APR finance
The future of aero road. Lightweight, super-stiff and nearly invisible to the wind, this composite road machine offers a true advantage for sprinting and solo riding. Plus with its integrated disc brake technology, you have more control for chaotic sprints and descents.
Integrated aerodynamics: AeroSystem Shaping, a result of CFD analysis and dynamic wind tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse aerofoil tube shapes and Contact SLR/SL Aero cockpit help produce the best overall aero performance.
Total control: Integrated disc brakes deliver powerful stopping power and modulation for added control in variable weather. Flat mounts and thru-axles boost stiffness and improve overall handling and an integrated WheelSystem with a 65mm rear rim and shallower 42mm front rim optimises aerodynamics and control.
Unrivalled efficiency: Advanced-grade composite frameset features high-performance materials for optimised stiffness and the lowest weight in its category.
Advanced Composite Technology
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
AeroSystem Shaping Technology
Through CFD (Computational Fluid Dynamics) and wind tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.
OverDrive 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Vector Seatpost
This full-composite, lightweight and highly aerodynamic seatpost is engineered specifically for performance road riding.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-Grade Composite |
| Fork | Advanced-Grade Composite, Full-Composite OverDrive 2 Steerer |
| Stem | Giant Contact SL Aero, alloy |
| Bars | Giant Contact SLR Aero, composite |
| Front Brake | Giant SpeedControl SL |
| Rear Brake | Giant SpeedControl SL |
| Brake Lever | Shimano Ultegra Di2 |
| Front Mech | Shimano Ultegra Di2 |
| Rear Mech | Shimano Ultegra Di2 |
| Shifters | 22 speed Shimano Ultegra Di2 |
| Speed | 22 |
| Rims | [F] Giant SLR 1 42, Tubeless, Full Composite [R] Giant SLR 1 65, Tubeless, Full Composite |
| Front Hub | Giant SLR 1 DBL WheelSystem; Pawl driver, 16h |
| Rear Hub | Giant SLR 1 DBL WheelSystem; Pawl driver, 21h |
| Spokes | Giant SLR 1 DBL WheelSystem; Dynamic Balanced Lacing, bladed stainless |
| Front Tyre | Giant Gavia AC 0 Tubeless, 700x25, Folding |
| Rear Tyre | Giant Gavia AC 0 Tubeless, 700x25, Folding |
| Seat Post | Giant Vector Composite |
| Saddle | Giant Contact SL Forward |
| Chainset | Shimano Ultegra with Giant Power Pro Double Sided Power Meter, 52/36 |
| Bottom Bracket | Shimano Press Fit |
| Chain | KMC X11SL-1 |
| Cassette | Shimano Ultegra,11x30 |
| Pedals | Basic Resin Flat |
![]()
Giant Propel 2024 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| XS | 157 | 169 | 5'2" | 5'7" |
| S | 165 | 175 | 5'5" | 5'9" |
| M | 171 | 181 | 5'7" | 5'11" |
| M/L | 177 | 187 | 5'10" | 6'2" |
| L | 183 | 193 | 6'0" | 6'6" |
| XL | 189 | 199 | 6'2" | 6'6" |
Giant Propel 2024 Geometry
| XS | S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 465 | 500 | 520 | 545 | 575 | 595 |
| SEAT TUBE ANGLE | 74.5° | 73.5° | 73.0° | 73.0° | 73.0° | 72.0° |
| TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| HEAD TUBE LENGTH (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| HEAD TUBE ANGLE | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| TRAIL (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| WHEELBASE (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| BOTTOM BRACKET DROP (mm) | 70 | 68 | 68 | 65 | 65 | 65 |
| STACK (mm) | 517 | 529 | 545 | 562 | 581 | 595 |
| REACH (mm) | 372 | 378 | 383 | 398 | 402 | 412 |
| STAND OVER HEIGHT (mm) | 744 | 769 | 787 | 807 | 829 | 843 |
| HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
| STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
