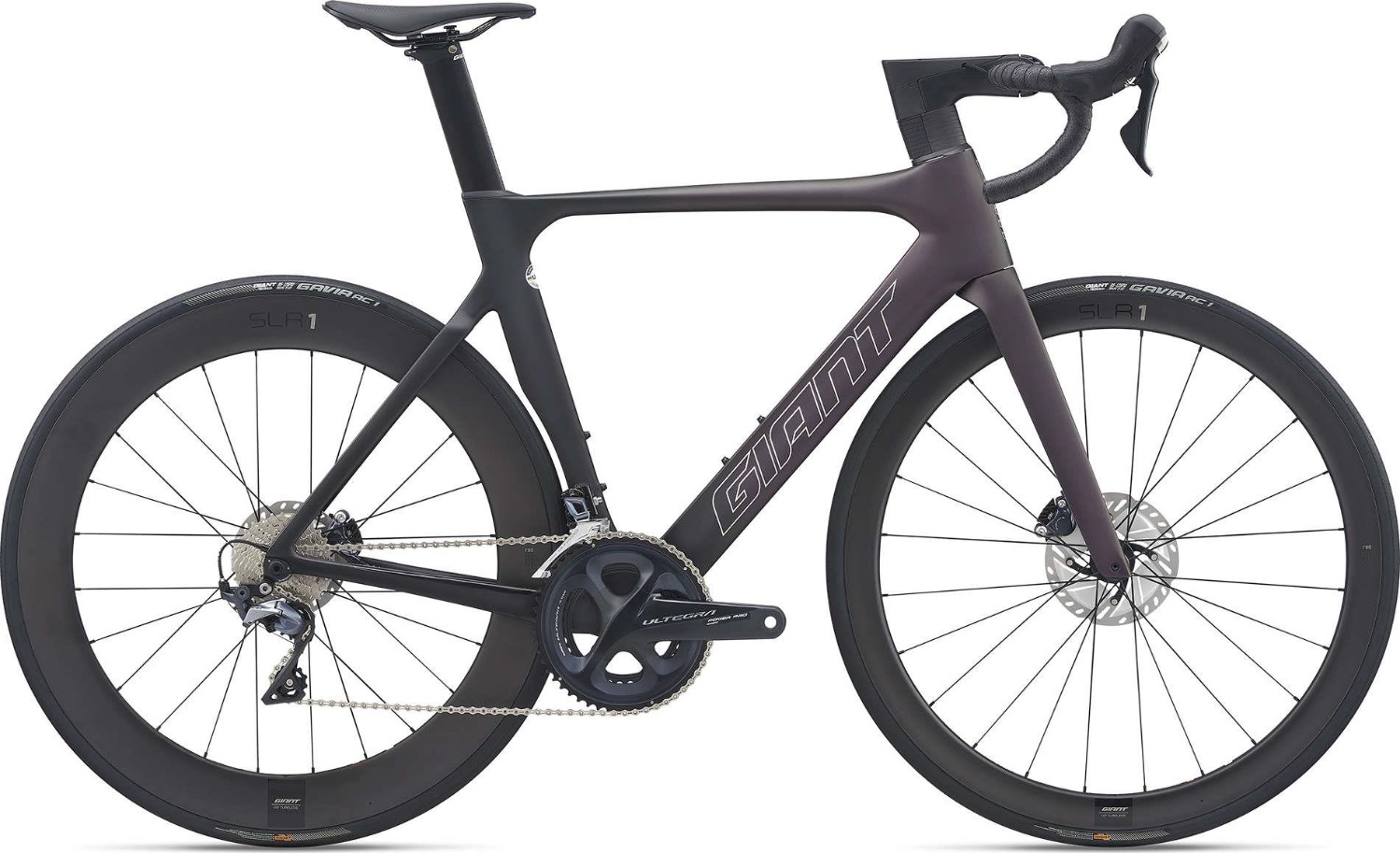

Giant Propel Advanced Pro 1 Disc 2021 - Road Bike
This composite road machine offers a true advantage for sprinting and solo riding. With its aero-engineered frameset, integrated WheelSystem and disc-brake technology, you have a new level of efficiency and road handling to help you aim for the podium.
Meticulously developed for best-in-class aero road performance, this razor-sharp road racer was born to sprint, chase or make your attack. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff with a responsive ride quality. The components are as integrated as they can possibly be, with smooth lines from the handlebar and stem, internal cable routing, and a WheelSystem that uses a 65mm deep rear rim for maximum aero performance and a shallower 42mm front for added control. Even the disc brakes are integrated into the frame, with flat-mount calipers and thru-axles designed to optimize the technology.
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SL Aero cockpit produce the best overall aero performance.
Total control
Integrated disc brakes deliver smooth, powerful control and modulation for added confidence in all conditions. Flat mounts and thru-axles boost stiffness and improve overall handling, and an integrated WheelSystem with a 65mm rear rim and shallower 42mm front rim optimises aerodynamics and control.
Unrivaled efficiency
Advanced-grade composite frameset features high-performance materials and Giant manufacturing processes for optimised stiffness and the lowest weight in its category.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-Grade Composite, disc |
Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
Stem | Giant Contact SL Aero |
Bars | Giant Contact SL Aero |
Front Brake | Shimano Ultegra Hydraulic |
Rear Brake | Shimano Ultegra Hydraulic |
Brake Lever | Shimano Ultegra hydraulic |
Front Mech | Shimano Ultegra |
Rear Mech | Shimano Ultegra |
Shifters | Shimano Ultegra |
Speed | 22 |
Rims | Giant SLR 1 Carbon Disc WheelSystem ( F:42mm, R:65mm) |
Front Hub | Giant SLR 1 Carbon Disc WheelSystem, 12mm thru-axle |
Rear Hub | Giant SLR 1 Carbon Disc WheelSystem, 12mm thru-axle |
Spokes | Giant SLR 1 Carbon Disc WheelSystem |
Front Tyre | Giant Gavia AC 1, tubeless,700x25c |
Rear Tyre | Giant Gavia AC 1, tubeless,700x25c |
Seat Post | Giant Vector, composite |
Saddle | Giant Fleet SL |
Chainset | Shimano Ultegra, 36/52 with Giant Power Pro power meter |
Bottom Bracket | Shimano, press fit |
Chain | KMC X11SL-1 |
Cassette | Shimano Ultegra, 11x30 |
Pedals | Resin Platform |
Weight | 8.1kg |
Giant Propel 2024 Size Chart
Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
XS | 157 | 169 | 5'2" | 5'7" |
S | 165 | 175 | 5'5" | 5'9" |
M | 171 | 181 | 5'7" | 5'11" |
M/L | 177 | 187 | 5'10" | 6'2" |
L | 183 | 193 | 6'0" | 6'6" |
XL | 189 | 199 | 6'2" | 6'6" |
Giant Propel 2024 Geometry
XS | S | M | M/L | L | XL | |
---|---|---|---|---|---|---|
SEAT TUBE LENGTH (mm) | 465 | 500 | 520 | 545 | 575 | 595 |
SEAT TUBE ANGLE | 74.5° | 73.5° | 73.0° | 73.0° | 73.0° | 72.0° |
TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
HEAD TUBE LENGTH (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
HEAD TUBE ANGLE | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
TRAIL (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
WHEELBASE (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
BOTTOM BRACKET DROP (mm) | 70 | 68 | 68 | 65 | 65 | 65 |
STACK (mm) | 517 | 529 | 545 | 562 | 581 | 595 |
REACH (mm) | 372 | 378 | 383 | 398 | 402 | 412 |
STAND OVER HEIGHT (mm) | 744 | 769 | 787 | 807 | 829 | 843 |
HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
