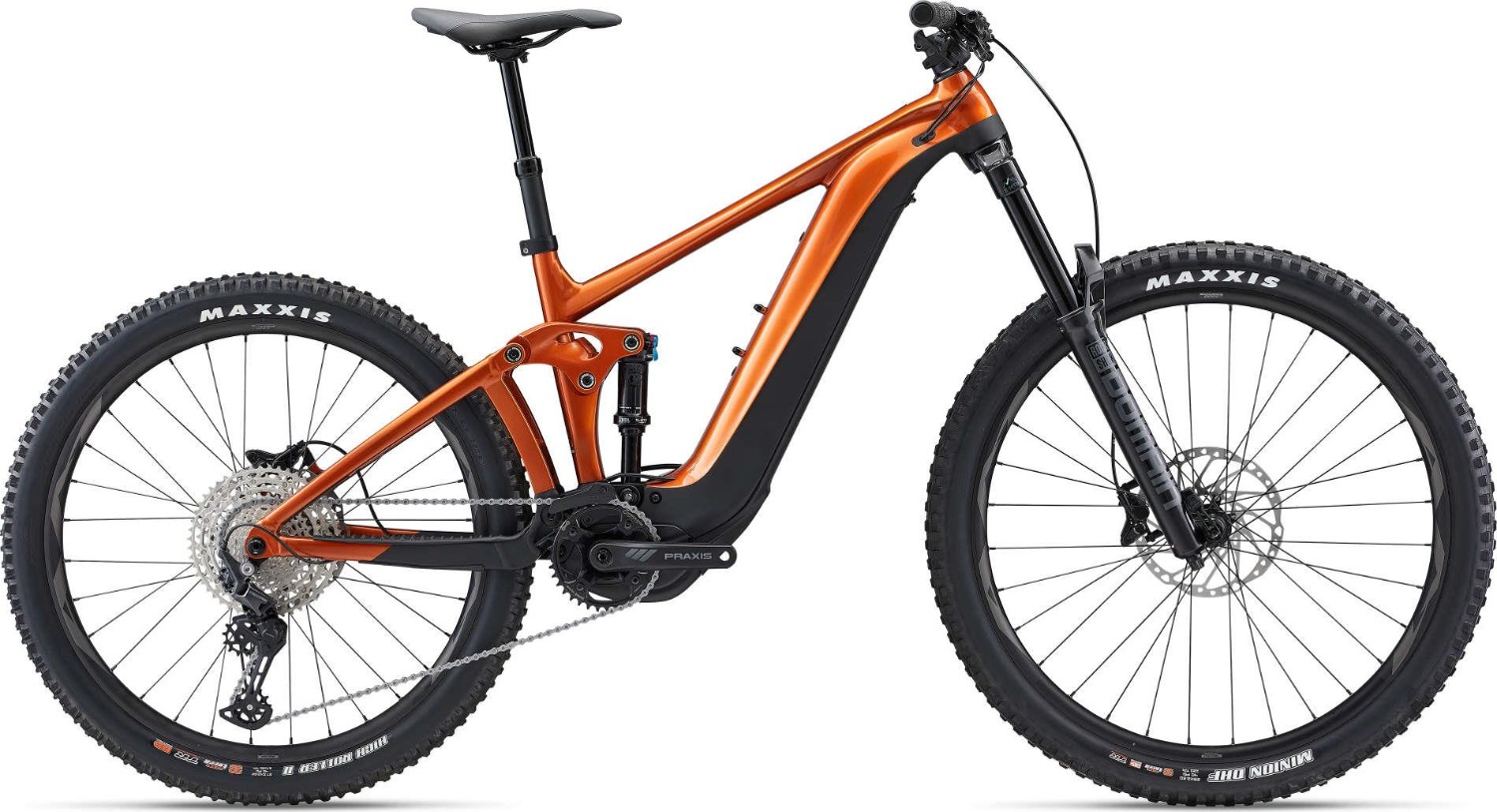

Giant Reign E+ 3 MX Pro 2023 - Electric Mountain Bike
Every trail, every steep climb, every thrilling descent. The Giant Reign E+ 3 MX Pro eMTB is tested and developed by giant’s e-bike enduro pros, this updated trail mountain bike ripper gives you the power to enjoy the best parts of the ride again and again.
Key Features:
- ALUXX SL-grade aluminum frame
- RockShox Domain Fork offers 170mm of plush suspension travel
- Fox Float DPS Performance Shock Controls the 160mm of rear wheel travel
- Shimano 12 speed drivetrain for slick shifting
- Sizes: S, M, L, XL
- Colours: Amber Glow / Black
- The Giant Reign E+ 3 MX Pro is available with 0% APR finance
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, UDHTM derrailleur hanger |
| Fork | RockShox Domain 29er, 170mm travel, Domain R, 15x110 Boost, Maxle Stealth |
| Rear Shock | Fox Float DPS Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact Trail, 35x800mm |
| Front Brake | Shimano Deore BR-M4120, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Shimano Deore BR-M4120, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Shimano Deore BL-M4100, I-spec EV |
| Front Mech | MRP 1X HD2 custom co-molded chain guide |
| Rear Mech | Shimano Deore 12-speed |
| Shifters | Shimano Deore |
| Speed | 12 |
| Rims | Giant AM 29"[F] 27.5"[R], Tubeless ready, 30mm inner width |
| Front Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [r] Race [f] |
| Front Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra |
| Rear Tyre | Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) |
| Saddle | Giant Romero Trail |
| Chainset | Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165) |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12-speed |
| Pedals | Flat pedal |
| Battery Size (WH) | EnergyPak Smart 625WhEnergyPak Plus range extender compatible |
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| User Interface | RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
