Giant Revolt 1 - Nearly New - M/L 2023 - Gravel Bike

Name: Giant Revolt 1 - Nearly New - M/L 2023 - Gravel Bike
Brand: Giant

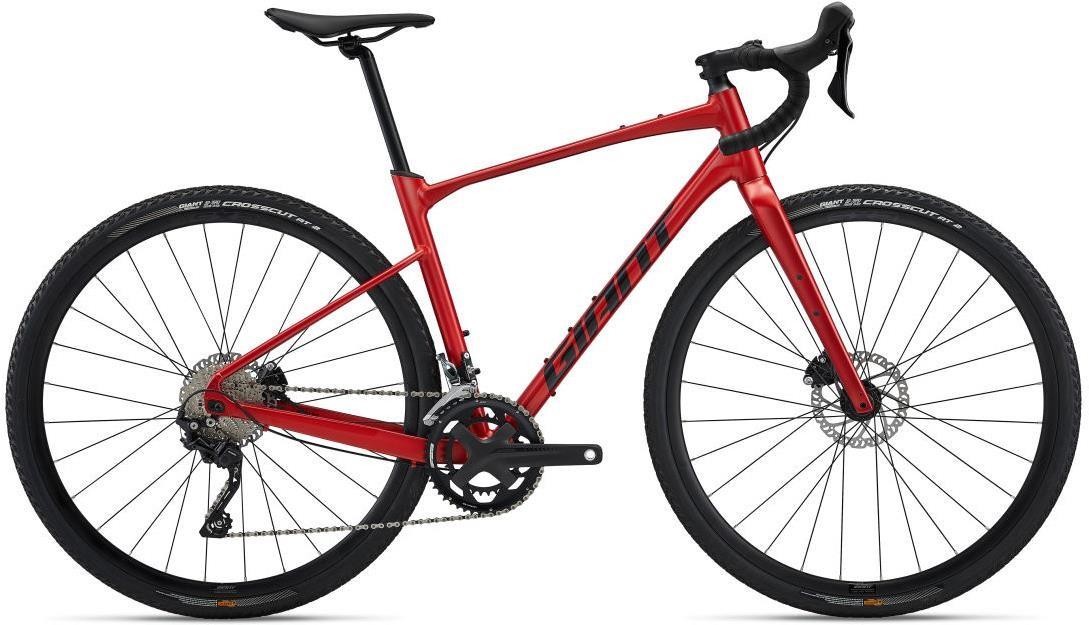

Giant Revolt 1 - Nearly New - M/L 2023 - Gravel Bike product image

This Revolt 1 - Nearly New - M/L gravel bike is rated the highest possible grade which reflects that the bike is in excellent condition and can be reasonably considered to be like new. Having never been ridden, the only minor cosmetic marks are on the seat wedge and seat tube.

To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.

Ride roads, gravel or dirt with this all-new aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork	Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Stem	Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Bars	Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Front Brake	Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Rear Brake	Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Lever	Shimano GRX RX-400 hydraulic
Front Mech	Shimano Tiagra
Rear Mech	Shimano GRX RX-400
Shifters	Shimano GRX RX-400, 2x10
Speed	20
Rims	Giant S-X2 Disc wheelset
Front Hub	Giant S-X2 Disc wheelset
Rear Hub	Giant S-X2 Disc wheelset
Spokes	Giant S-X2 Disc wheelset
Front Tyre	Giant CrossCut AT 2, 700x38c, tubeless
Rear Tyre	Giant CrossCut AT 2, 700x38c, tubeless
Seat Post	Giant D-Fuse, alloy, 14mm offset
Saddle	Giant Approach
Chainset	FSA Omega Adventure, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket	FSA Mega EXA, BSA
Chain	KMC X10 with Missing Link
Cassette	Shimano HG500, 11x34
Pedals	N/A

Typical Bike Size Chart

Height	Bike Size	Road Bike Size	Mountain Bike Size *
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.

Read our bike size guide for more information on sizing.
