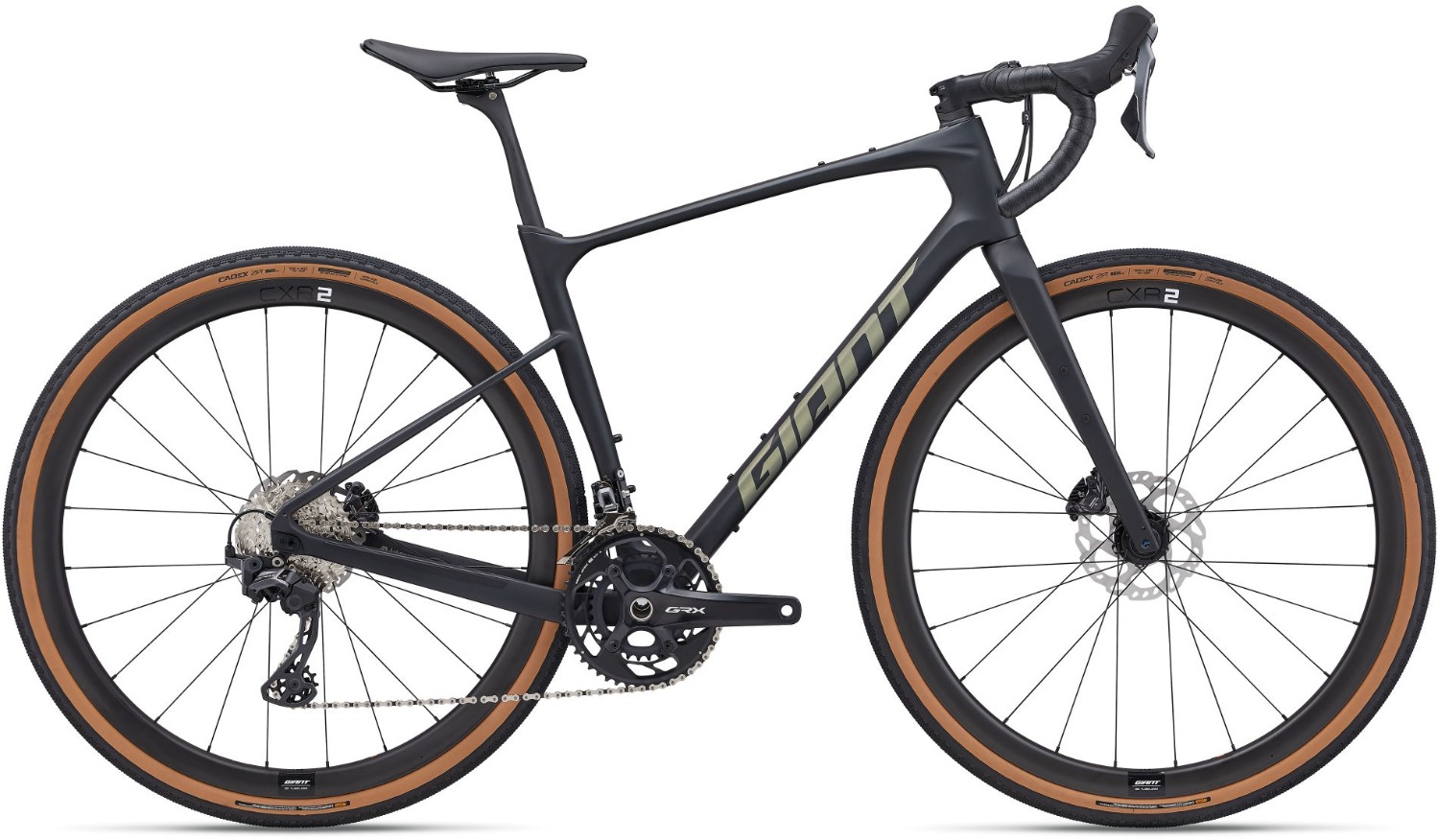

Giant Revolt Advanced 0 2024 - Gravel Bike

The Giant Revolt Advanced 0 is designed for performance and versatility on gravel roads and beyond. With its advanced composite frame and fork, tuned compliance features, and adaptable design, it delivers a responsive and comfortable ride experience in diverse conditions.
Key Features:
- Advanced Composite Frame: Lightweight and responsive, with a flip chip dropout for adjustable wheelbase and tyre clearance up to 53mm.
- Full-Composite Fork: Provides precise steering and control, enhancing stability on rough terrain.
- Efficient Drivetrain: Shimano GRX RX-820 2x12-speed drivetrain for smooth and reliable shifting performance.
- Hydraulic Disc Brakes: Shimano GRX RX-820 hydraulic disc brakes for confident stopping power in all conditions.
- Carbon Disc Wheelsystem: Giant CXR 2 carbon wheelsystem with 35mm rims for lightweight agility and durability.
- Tubeless Tyres: Cadex AR 700x40c tubeless tyres for improved traction and puncture resistance.
- Tuned Compliance Features: Dropped seatstays, D-Fuse handlebar, and seatpost absorb road vibrations without sacrificing stiffness.
- Adaptable Design: Flip chip dropout adjusts wheelbase for handling preference, while included D-Fuse seatpost enhances compliance.
The flip chip dropout allows riders to customize the bike's handling characteristics, whether they prefer nimble agility or stability at high speeds. With Shimano GRX RX-820 components delivering smooth and precise shifting, hydraulic disc brakes providing reliable stopping power, and tubeless tyres offering enhanced traction and durability, this bike is ready to tackle any adventure with confidence. Plus, its tuned compliance features, including dropped seatstays and D-Fuse components, ensure a smooth and comfortable ride over long distances.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Bars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Front Brake | Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm |
| Rear Brake | Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm |
| Brake Lever | Shimano GRX RX-820 hydraulic |
| Front Mech | Shimano GRX RX-820 |
| Rear Mech | Shimano GRX RX-820 |
| Shifters | Shimano GRX RX-820, 2x12 |
| Speed | 24 |
| Rims | Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm |
| Front Hub | Giant alloy, CenterLock, 12mm thru-axle |
| Rear Hub | Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle |
| Spokes | SAPIM Sprint |
| Front Tyre | CADEX AR, 700x40c, tubeless |
| Rear Tyre | CADEX AR, 700x40c, tubeless |
| Seat Post | Giant D-Fuse SL, composite, 14mm offset |
| Saddle | Giant Approach |
| Chainset | Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Chain | KMC X12L-1 |
| Cassette | Shimano CS-HG710, 12-speed, 11x36 |
| Pedals | Resin Platform |
See the table below to find the right size.
Gravel Bike Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
