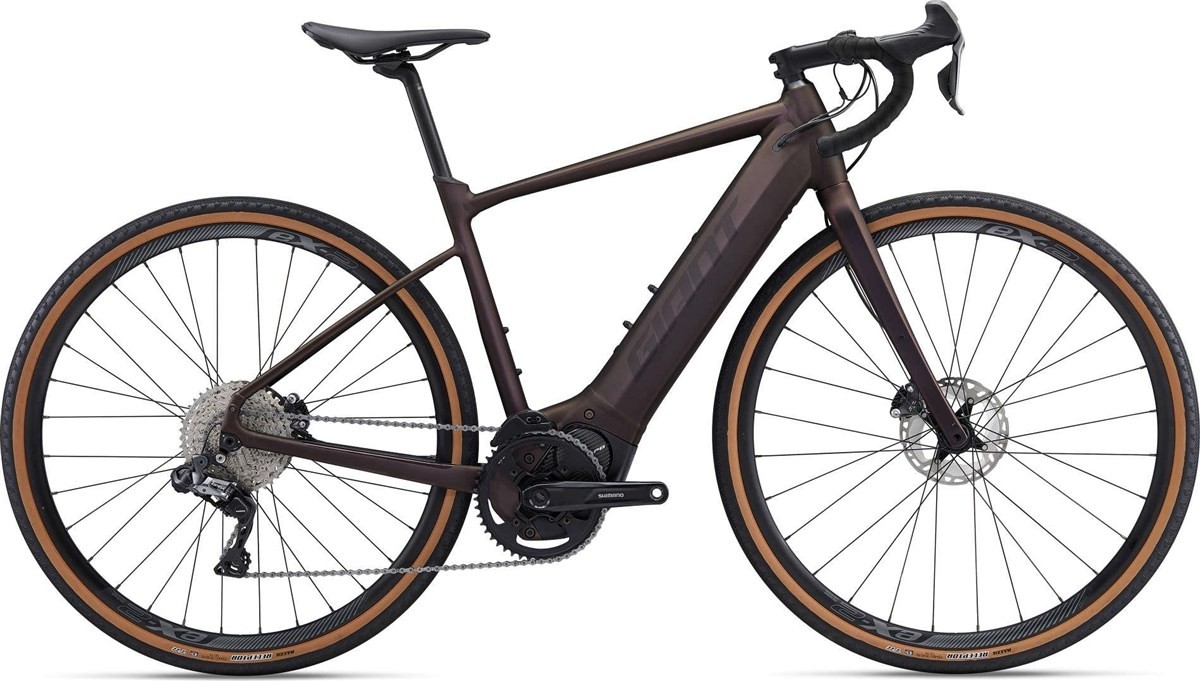

Giant Revolt E+ Pro XR 25km/h - Nearly New – L 2022 - Electric Gravel Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL aluminium |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer |
| Stem | Giant Contact |
| Bars | Giant Contact XR D-Fuse, 31.8mm, 5° back sweep, flared drop |
| Front Brake | Shimano BR-RX810, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-RX810, hydraulic disc, 180mm |
| Brake Lever | Shimano ST-RX815 hydraulic disc |
| Rear Mech | Shimano GRX Di2 RX817 (max 42T cassette size) |
| Shifters | Shimano GRX Di2 ST-RX815 1x11 speed |
| Speed | 11 |
| Rims | Giant eX 2, Tubeless Ready, 700c Aluminium |
| Front Hub | Giant Performance Tracker Road, Sealed Bearing, 12mm thru axle |
| Rear Hub | Giant Performance Tracker Road, Sealed Bearing, 12mm thru axle |
| Spokes | Sapim E-Lite |
| Front Tyre | Maxxis Receptor, EXO, Skinwall, 700x40mm, Tubeless |
| Rear Tyre | Maxxis Receptor, EXO, Skinwall, 700x40mm, Tubeless |
| Seat Post | Giant D-Fuse SL, composite |
| Saddle | Giant Approach |
| Chainset | Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring |
| Bottom Bracket | Integrated into motor |
| Chain | KMC e.11 Turbo, EcoProteq |
| Cassette | Shimano CS-M5100-11, 11-42, 11-speed |
| Pedals | Aluminum Platform |
| Battery Size (WH) | EnergyPak Compact 500Wh EnergyPak Plus range extender compatible |
| Motor | Shimano EP8, 85Nm, up to 400% asssistance |
| User Interface | RideControl GO top tube mounted, Assistance level can also be controlled by left hand STI buttons |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
