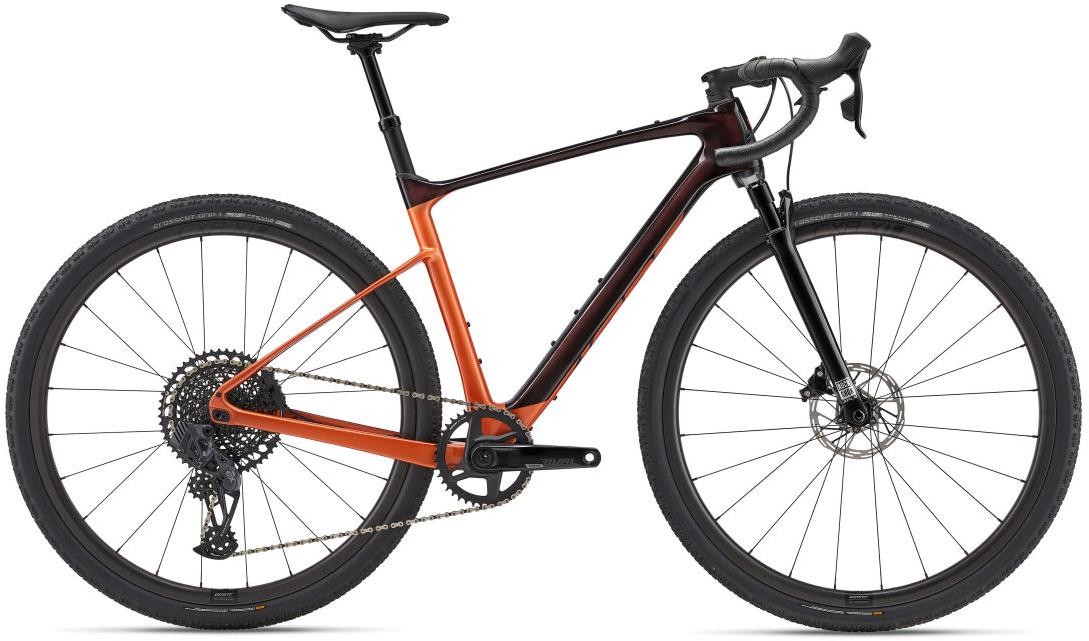

Giant Revolt X Advanced Pro 1 2023 - Gravel Bike
The Giant Revolt X Advanced Pro 1 redefines gravel riding with a purpose-built composite frameset designed for front suspension, delivering 40mm of travel with the Rockshox Rudy Ultimate XPLR fork. Tackling gravel is a breeze with this bike's unique tuned compliance, featuring lowered seatstays and a Contact SL XR D-Fuse handlebar for optimal shock absorption without compromising stiffness.
Key Features:
- Frame: Advanced-grade composite, 12x142mm thru-axle, disc, and flip chip dropout for adjustable wheelbase. Accommodates up to 53mm tyres.
- Suspension Fork: Rockshox Rudy Ultimate XPLR with 40mm travel and Charger Race Day damper for smooth control over rough terrain.
- Drivetrain: SRAM GX Eagle AXS rear mech, SRAM Rival eTap AXS shifters, and a SRAM Rival D1 Dub chainset ensure reliable and precise gear changes in any terrain.
- Brakes: SRAM Rival eTap AXS hydraulic disc brakes provide confident stopping power, complemented by SRAM Paceline rotors.
- Wheels: Giant CXR X1 Carbon Disc Wheelsystem with Sapim CX-Ray spokes for durability and performance.
- Tyres: Giant Crosscut Grip 1, 700x45c tubeless tyres ensure traction on varied surfaces.
- Available with 0% APR finance.
Embark on gravel escapades with confidence on the Giant Revolt X Advanced Pro 1. The innovative composite frameset, equipped with a flip chip dropout, allows you to tailor your wheelbase for either quick handling or enhanced stability at speed. The long setting accommodates larger diameter tyres up to 53mm, providing adaptability to diverse terrains. The included dropper/suspension seatpost adds versatility, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost. With a SRAM Rival eTap AXS drivetrain, SRAM Paceline rotors, and Giant CXR X1 carbon wheels, this bike promises an exhilarating gravel experience.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
Fork | RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle |
Stem | Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm |
Bars | Giant Contact SL XR D-Fuse, 16-degree flare S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm |
Front Brake | SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm |
Rear Brake | SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm |
Brake Lever | SRAM Rival eTap AXS hydraulic |
Rear Mech | SRAM Gx Eagle AXS |
Shifters | SRAM Rival eTap AXS, 1x12 |
Speed | 12 |
Rims | Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm |
Front Hub | [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
Rear Hub | [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
Spokes | SAPIM CX-Ray |
Front Tyre | Giant CrossCut Grip 1, 700x45c, tubeless |
Rear Tyre | Giant CrossCut Grip 1, 700x45c, tubeless |
Seat Post | Postmodern, dropper, 30.9mm with 25mm of suspension 415mm length / 100mm drop |
Saddle | Giant Approach SL |
Chainset | SRAM Rival D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | SRAM DUB, press fit |
Chain | SRAM GX Eagle |
Cassette | SRAM XG-1275, 12-speed, 10x52 |
Pedals | Resin Platform |
See the table below to find the right size.
Gravel Bike Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
Height |
Size |
|||||||
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
