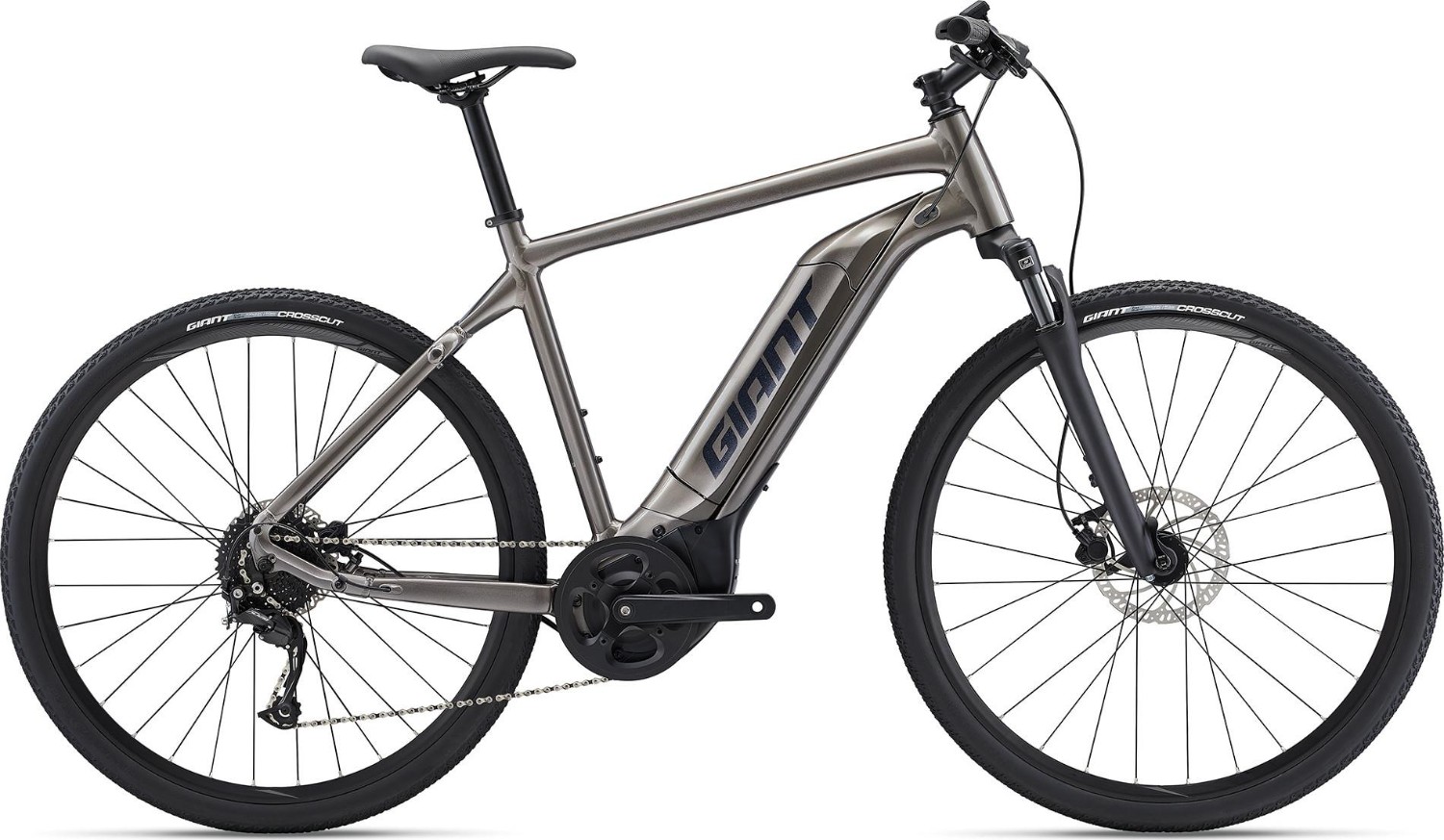

Giant Roam E+ GTS 2023 - Electric Hybrid Bike
Choose a route, any route. with its all-road capabilities and smooth, natural pedaling support, the Giant Roam E+ GTS Hybrid Electric bike is a versatile e-bike helps you ride smooth roads, rough roads, bike paths or trails.
Keay features:
- ALUXX Aluminium Hardtail frame
- SR Suntour NEX 63mm travel to smooth out any urban terrain
- Shimano 1x9 drivetrain gives a wide range and easy shifting
- Tektro hydraulic disc brakes for powerful speed control
- Sizes: S , M , L, XL
- Colours: Gloss Metal
- The Giant Roamd E+ GTS is available with 0% APR finance
Drive Information:
- Motor: Yamaha SyncDrive Core 50Nm Motor
- Battery: EnergyPak 400Wh
- User Interface: Giant RideControl Dash
- Connectivity: ANT+/Bluetooth wireless display
All-road capabilities
Powerful SyncDrive Core motor, light and durable ALUXX SL aluminum frame, and wider tires give you the ability to ride any road, any route.
Comfort and control
63mm suspension fork,wider tires and flat handlebar positioning improve comfort and stabilityon rough roads or paths.
Longer range
Long-lasting EnergyPak Smart 400 battery allows you to ride farther without running out of power.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount |
| Fork | SR Suntour NEX E25 63mm travel |
| Bars | Giant Connect Riser 31.8x620mm |
| Front Brake | Tektro HD-M275, hydraulic disc, 160/180mm |
| Rear Brake | Tektro HD-M275, hydraulic disc, 160/180mm |
| Brake Lever | Tektro HD-M275 |
| Rear Mech | Shimano Alivio, 9-speed |
| Shifters | Shimano Altus 1x9 speed |
| Speed | 9 |
| Rims | Giant GX03V, Aluminium |
| Front Hub | Giant eTracker, [F] 100x9mm QR [R] 135mm QR |
| Rear Hub | Giant eTracker, [F] 100x9mm QR [R] 135mm QR |
| Spokes | Stainless steel |
| Front Tyre | Giant Crosscut Gravel, 700x45c |
| Rear Tyre | Giant Crosscut Gravel, 700x45c |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Chainset | Forged Alloy minimal Q-factor, 42T |
| Chain | KMC e.9 Sport, e-bike optimised |
| Cassette | Shimano CS-HG200, 11-36T, 9-speed |
| Pedals | PP Pedal |
| Battery Size (WH) | EnergyPak 400Wh |
| Motor | SyncDrive Core, 50Nm, Powered by Yamaha |
| User Interface | ANT+ Wireless display compatible |
Giant Roam Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 4” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
5’ 8” |
|
|
|
S |
S |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
|
6’ 5” |
|
|
|
|
|
|
|
XL |
XL |
XL |
XL |
XL |
Giant Roam Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 420 | 460 | 510 | 550 |
| SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (mm) | 590 | 600 | 610 | 620 |
| HEAD TUBE LENGTH (mm) | 115 | 130 | 145 | 160 |
| HEAD TUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° |
| FORK RAKE (mm) | 45 | 45 | 45 | 45 |
| TRAIL (mm) | 78 | 78 | 78 | 78 |
| WHEELBASE (mm) | 1096 | 1107 | 1118 | 1128 |
| CHAIN STAY LENGTH (mm) | 455 | 455 | 455 | 455 |
| BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 |
| STACK (mm) | 596 | 611 | 625 | 639 |
| REACH (mm) | 408 | 413 | 419 | 425 |
| STAND OVER HEIGHT (mm) | 727 | 752 | 781 | 809 |
| HANDLEBAR WIDTH (mm) | 640 | 670 | 670 | 670 |
| STEM LENGTH (mm) | 90 | 100 | 110 | 110 |
| CRANK LENGTH (mm) | 170 | 172.5 | 172.5 | 175 |
| WHEEL SIZE | 700C | 700C | 700C | 700C |
