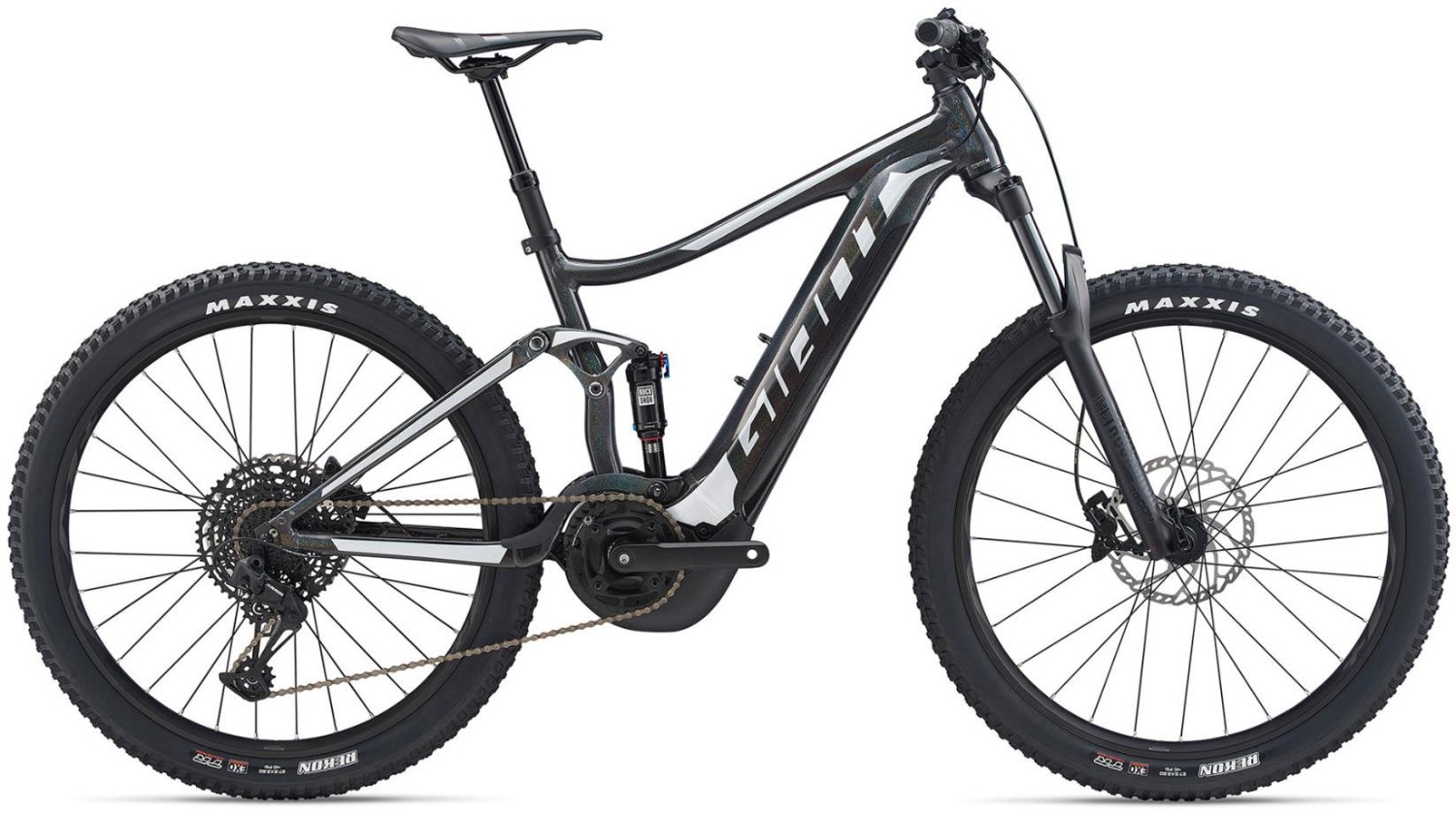

Giant Stance E+ 1 27.5" 2020 - Electric Mountain Bike

£3,299.00
Price Match
or £91.55 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Add to Basket

Cycle to Work

Product Description

Steep climbs, technical descents, longer days on the trail. With a powerful SyncDrive Sport motor, this full-suspension E-bike gives you the power and technology to ride the trails you dream about.

Designed with trail-friendly geometry, Stance E+ helps trail riders experience off-road E-bike riding at its best. Its lightweight, strong and stiff ALUXX SL aluminium frame with FlexPoint suspension makes tricky singletrack trails easier to ride. It features 120mm of rear suspension travel and 130mm up front, plus the stable, nimble ride quality of 27.5+ wheels. The SyncDrive Sport motor delivers 350 percent tuneable support ratios through the Giant E-bike App. The RideControl ONE integrated handlebar support buttons offer ergonomic control, and the EnergyPak 500Wh battery system lets you extend the ride.



Key Features:

  • Strong motor support
    The SyncDrive Sport motor with 70Nm of torque and 360 percent tuneable support helps you climb steep, rugged trails with ease.
  • Total control
    ALUXX SL aluminium frame with 120mm FlexPoint suspension and 27.5+ wheels produces a smooth, confident ride on technical trails. Giant E-bike App gives you navigation, health and fitness functions.
  • Efficient
    500Wh EnergyPak offers the longest possible range. The integrated battery pack is easy to charge and can charge up to 80% in just 60 minutes with new 6A Fast Charger.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:ALUXX SL-grade aluminum, 120mm FlexPoint suspension system
Fork:RockShox Recon RL, 130mm travel, Lockout, 110x15mm MaxleLite
Rear Shock:RockShox Monarch RT, High Volume, 184x44mm, custom tuned
Stem:Giant Contact
Bars:Giant Connect TR Riser 31.8x780mm
Front Brake:Shimano MT420, 4-piston brakes, 203mm
Rear Brake:Shimano MT420, 4-piston brakes, 203mm
Brake Lever:Shimano MT401 Hydraulic Disc
Rear Mech:SRAM SX Eagle 12-speed
Shifters:SRAM SX Eagle 12-speed
Speed:12
Rims:Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
Front Hub:Giant eTracker Sport, 15mm Thru-Axle
Rear Hub:Giant eTracker Sport, 141mm QR, e-bike optimized
Spokes:Stainless Steel
Front Tyre:Maxxis Rekon 27.5x2.6", Exo protect, Tubeless Ready
Rear Tyre:Maxxis Rekon 27.5x2.6", Exo protect, Tubeless Ready
Seat Post:Giant Contact Switch, dropper, 30,9mm
Saddle:Giant Contact, Neutral
Chainset:SRAM X-Sync Eagle 38T 104BCD chainring Forged Alloy minimal Q-factor, 38T Steel Direct Mount ring
Chain:SRAM SX Eagle PowerLock, 12-speed
Cassette:SRAM PG-1210, 11-50T, 12-Speed
Pedals:Not Included
Battery (Wh):500Wh
Motor:Giant
User Interface:Giant RideControl ONE

There are currently no customer reviews

Write your own review

Giant Stance E Sizing & Geometry

Giant Stance E Sizing & Geometry



Inside Leg (Inches) Vs Rider Height (Feet & Inches)

26”

27”

28”

29”

30”

31”

32”

33”

34”

35”

36”

37”

5’ 3”





S

S

S















5’ 4”

S

S

S

S

S















5’ 5”

S

S

S

S

S















5’ 6”



S

S

S

S

S













5’ 7”





S

S

S

M

M











5’ 8”







M

M

M

M

M









5’ 9”







M

M

M

M

M









5’ 10”









M

M

M

M

M







5’ 11”









M

M

M

M

M







6’ 0”











M

M

L

L

L





6’ 1”











L

L

L

L

L





6’ 2”













L

L

L

L

L



6’ 3”













L

L

L

L

L



6’ 4”















L

L

XL

XL

XL





Giant Stance 27.5 Geometry



 SMLXL
SEAT TUBE LENGTH (mm) 406 432 482 507
SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.5°
TOP TUBE LENGTH (mm) 580 600 625 650
HEAD TUBE LENGTH (mm) 100 110 120 135
HEAD TUBE ANGLE 67.0° 67.0° 67.0° 67.0°
FORK RAKE (mm) 46 46 46 46
TRAIL (mm) 106.9 106.9 106.9 106.9
WHEELBASE (mm) 1162 1183 1209 1236
CHAIN STAY LENGTH (mm) 465 465 465 465
BOTTOM BRACKET DROP (mm) 20 20 20 20
STACK (mm) 590 599 608 622
REACH (mm) 405 422 444 465
STAND OVER HEIGHT (mm) 731 746 778 781
HANDLEBAR WIDTH (mm) 780 780 780 780
STEM LENGTH (mm) 50 60 60 70
CRANK LENGTH (mm) 165 170 170 170
WHEEL SIZE 27.5+ 27.5+ 27.5+ 27.5+



Giant Stance 29 Geometry



 MLXL
SEAT TUBE LENGTH (mm) 432 482 507
SEAT TUBE ANGLE 73.5° 73.5° 73.5°
TOP TUBE LENGTH (mm) 600 625 650
HEAD TUBE LENGTH (mm) 110 120 135
HEAD TUBE ANGLE 67.0° 67.0° 67.0°
FORK RAKE (mm) 51 51 51
TRAIL (mm) 106.9 106.9 106.9
WHEELBASE (mm) 1183 1209 1236
CHAIN STAY LENGTH (mm) 465 465 465
BOTTOM BRACKET DROP (mm) 20 20 20
STACK (mm) 599 608 622
REACH (mm) 422 444 465
STAND OVER HEIGHT (mm) 746 778 781
HANDLEBAR WIDTH (mm) 780 780 780
STEM LENGTH (mm) 50 50 60
CRANK LENGTH (mm) 165 165 170
WHEEL SIZE 29" 29" 29"









Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
