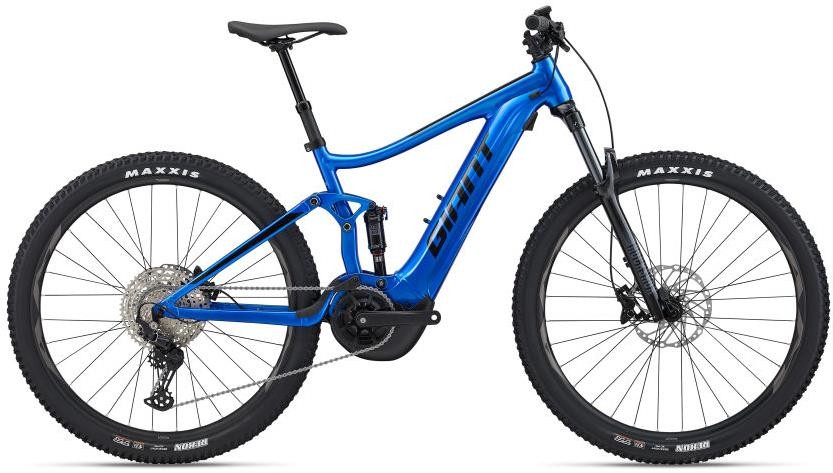

Giant Stance E+ 1 29" 2022 - Electric Mountain Bike
STEEP CLIMBS, TECHNICAL DESCENTS, LONGER DAYS ON THE TRAIL. WITH A SMOOTH SUSPENSION SETUP AND A SEAMLESS BOOST OF PEDALING SUPPORT, THIS E-BIKE GIVES YOU THE POWER AND TECHNOLOGY TO RIDE THE TRAILS YOU DREAM ABOUT.
KEY PERFORMANCE FACTORS
Strong Motor Support
The SyncDrive Sport motor with 70Nm of torque and 360 percent tunable support helps you climb steep, rugged trails with ease.
Total Control
ALUXX SL aluminum frame with 120mm FlexPoint suspension and 29-inch wheels produces a smooth, confident ride on technical trails. The Giant E-bike App gives you navigation, health and fitness functions.
Efficient
The EnergyPak Smart 625Wh & 500Wh offers long riding range. This integrated battery is easy to charge up to 80 percent in 2.5 hours with new 6A Fast Charger.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount |
Fork | RockShox Recon Silver RL, 130mm travel, Lockout, 110x15mm Boost, Maxle Lite, e-MTB optimised |
Rear Shock | RockShox Monarch RT, High Volume, 184x44mm, custom tuned |
Stem | Giant Contact |
Bars | Giant Connect TR Riser 31.8x780mm |
Front Brake | Tektro HD-M745, 4-piston, hydraulic disc, 203mm |
Rear Brake | Tektro HD-M745, 4-piston, hydraulic disc, 203mm |
Brake Lever | Tektro HD-M745 |
Rear Mech | Shimano Deore, 12-speed |
Shifters | Shimano Deore, 12-speed |
Speed | 12 |
Rims | Giant AM 29", Tubeless ready, 30mm inner width |
Front Hub | Shimano MT410 Boost / MT401, Center-Lock, [F] 110x15 |
Rear Hub | Shimano MT410 Boost / MT401, Center-Lock,[R] 141mm QR Micro-Spline Drive Body |
Spokes | Stainless steel |
Front Tyre | Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready |
Rear Tyre | Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready |
Seat Post | Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170) |
Saddle | Giant Sport |
Chainset | Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170) |
Chain | KMC e.12 Sport, e-bike optimised |
Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
Pedals | Aluminum Platform |
Battery Size (WH) | EnergyPak Smart 625Wh |
Motor | SyncDrive Sport, 70Nm, Powered by Yamaha |
User Interface | RideControl Dash, full color LCD screen |
Giant Stance E Sizing & Geometry
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Stance 27.5 Geometry
S | M | L | XL | |
---|---|---|---|---|
SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
FORK RAKE (mm) | 46 | 46 | 46 | 46 |
TRAIL (mm) | 106.9 | 106.9 | 106.9 | 106.9 |
WHEELBASE (mm) | 1162 | 1183 | 1209 | 1236 |
CHAIN STAY LENGTH (mm) | 465 | 465 | 465 | 465 |
BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
STACK (mm) | 590 | 599 | 608 | 622 |
REACH (mm) | 405 | 422 | 444 | 465 |
STAND OVER HEIGHT (mm) | 731 | 746 | 778 | 781 |
HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Stance 29 Geometry
M | L | XL | |
---|---|---|---|
SEAT TUBE LENGTH (mm) | 432 | 482 | 507 |
SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
HEAD TUBE LENGTH (mm) | 110 | 120 | 135 |
HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° |
FORK RAKE (mm) | 51 | 51 | 51 |
TRAIL (mm) | 106.9 | 106.9 | 106.9 |
WHEELBASE (mm) | 1183 | 1209 | 1236 |
CHAIN STAY LENGTH (mm) | 465 | 465 | 465 |
BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 |
STACK (mm) | 599 | 608 | 622 |
REACH (mm) | 422 | 444 | 465 |
STAND OVER HEIGHT (mm) | 746 | 778 | 781 |
HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
STEM LENGTH (mm) | 50 | 50 | 60 |
CRANK LENGTH (mm) | 165 | 165 | 170 |
WHEEL SIZE | 29" | 29" | 29" |
