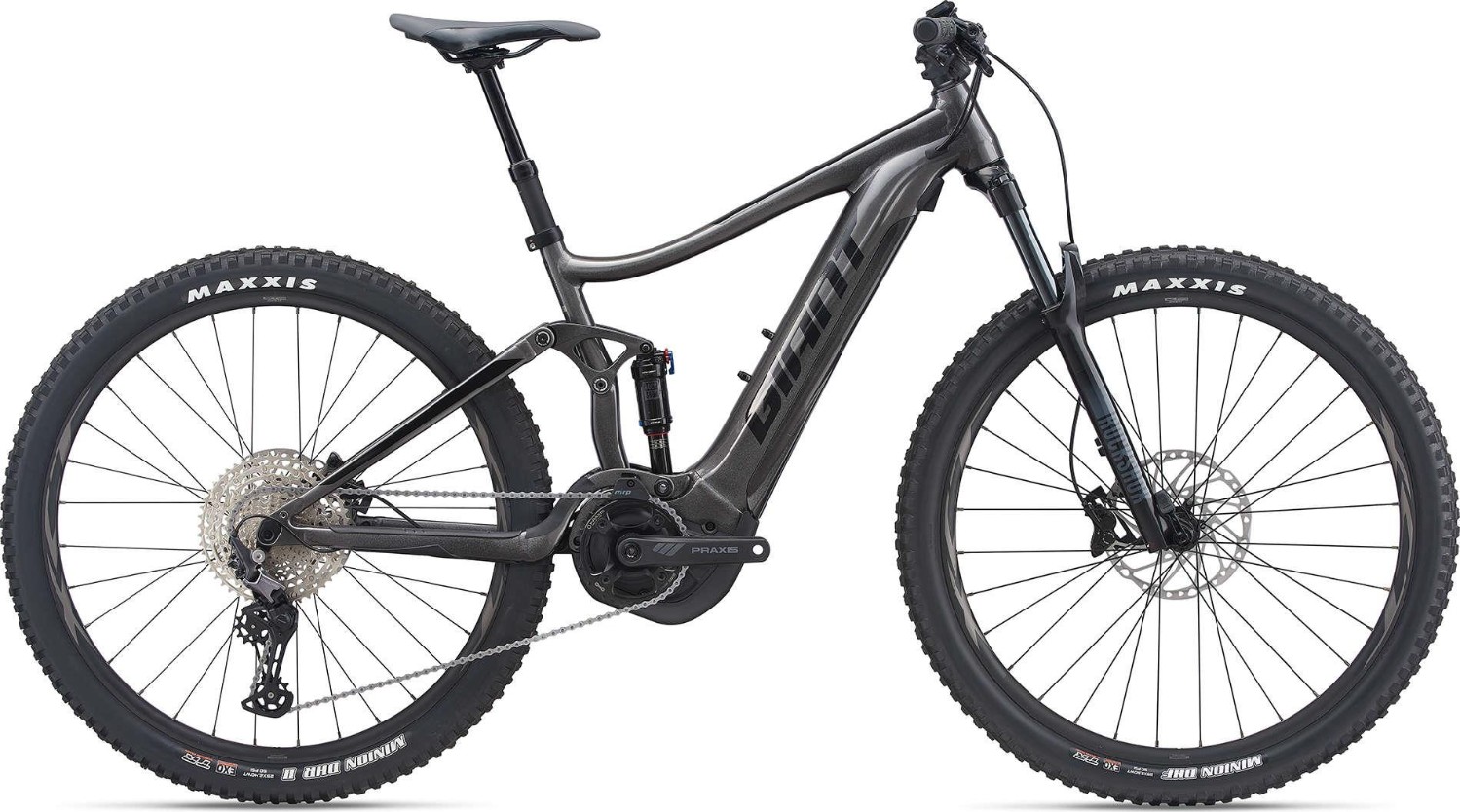

Giant Stance E+ 1 Pro 29er 2021 - Electric Mountain Bike
Experience trail riding like never before. With a powerful motor, smooth suspension and the added stability of 29-inch wheels, the Stance E+ Pro 29 helps you boost the fun factor on challenging terrain.
Designed with trail-friendly geometry, plush suspension and our most advanced motor technology, the new Stance E+ Pro 29 helps aspiring off-road riders tackle challenging trails with power and control. Its lightweight, strong and stiff ALUXX SL aluminium frame with FlexPoint suspension makes tricky singletrack trails easier to ride. It features 120mm of rear suspension travel and 130mm up front, plus the balanced, smooth-riding confidence of larger diameter 29-inch wheels. The new SyncDrive Pro motor delivers 80Nm of torque with 360 percent tunable support ratios through the Giant E-bike App. The new RideControl ONE with EVO display compatibility has integrated handlebar support buttons for improved ergonomic control. The EnergyPak 625 battery system lets you extend the ride and can now be charged up quickly with a newly designed smart charger.
Strong motor support
The SyncDrive Sport motor with 80Nm of torque and 360 percent tunable support helps you climb steep, rugged trails with ease.
Smooth, confident ride
ALUXX SL aluminium frame with 120mm FlexPoint suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
Efficient
625Wh EnergyPak offers the longest possible range. Integrated battery pack makes charging quick and easy.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminium, 120mm FlexPoint Suspension System |
| Fork | RockShox Recon Silver RL,130mm travel, Lock-out, Tapered Steerer,15x110mm Boost, MaxleLite, e-MTB optimised |
| Rear Shock | RockShox Monarch RT, High Volume, 184x44mm, custom tuned |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x780mm |
| Front Brake | Shimano BR-MT420, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Shimano BR-MT420, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Shimano Deore BL-M4100 i-spec EV |
| Front Mech | MRP 1X custom "V3" co-moulded TR chain guide |
| Rear Mech | Shimano Deore 12-speed |
| Shifters | Shimano Deore 12-speed i-spec EV |
| Speed | 12 |
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimised |
| Front Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimised |
| Front Tyre | Maxxis Minion DHF 29X2.5" 60TPI Foldable, TLR EXO |
| Rear Tyre | Maxxis Minion DHR II 29X2.40 60TPI Foldable TLR EXO |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170) |
| Saddle | Giant Romero Trail |
| Chainset | Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170) |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Giant EnergyPak Smart 625, 36V 17.3Ah integrated Lithium-Ion |
| Motor | Giant SyncDrive Pro |
| User Interface | Giant RideControl EVO |
Giant Stance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Stance 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1162 | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| STACK (mm) | 590 | 599 | 608 | 622 |
| REACH (mm) | 405 | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 731 | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Stance 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 |
| STACK (mm) | 599 | 608 | 622 |
| REACH (mm) | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 165 | 170 |
| WHEEL SIZE | 29" | 29" | 29" |
