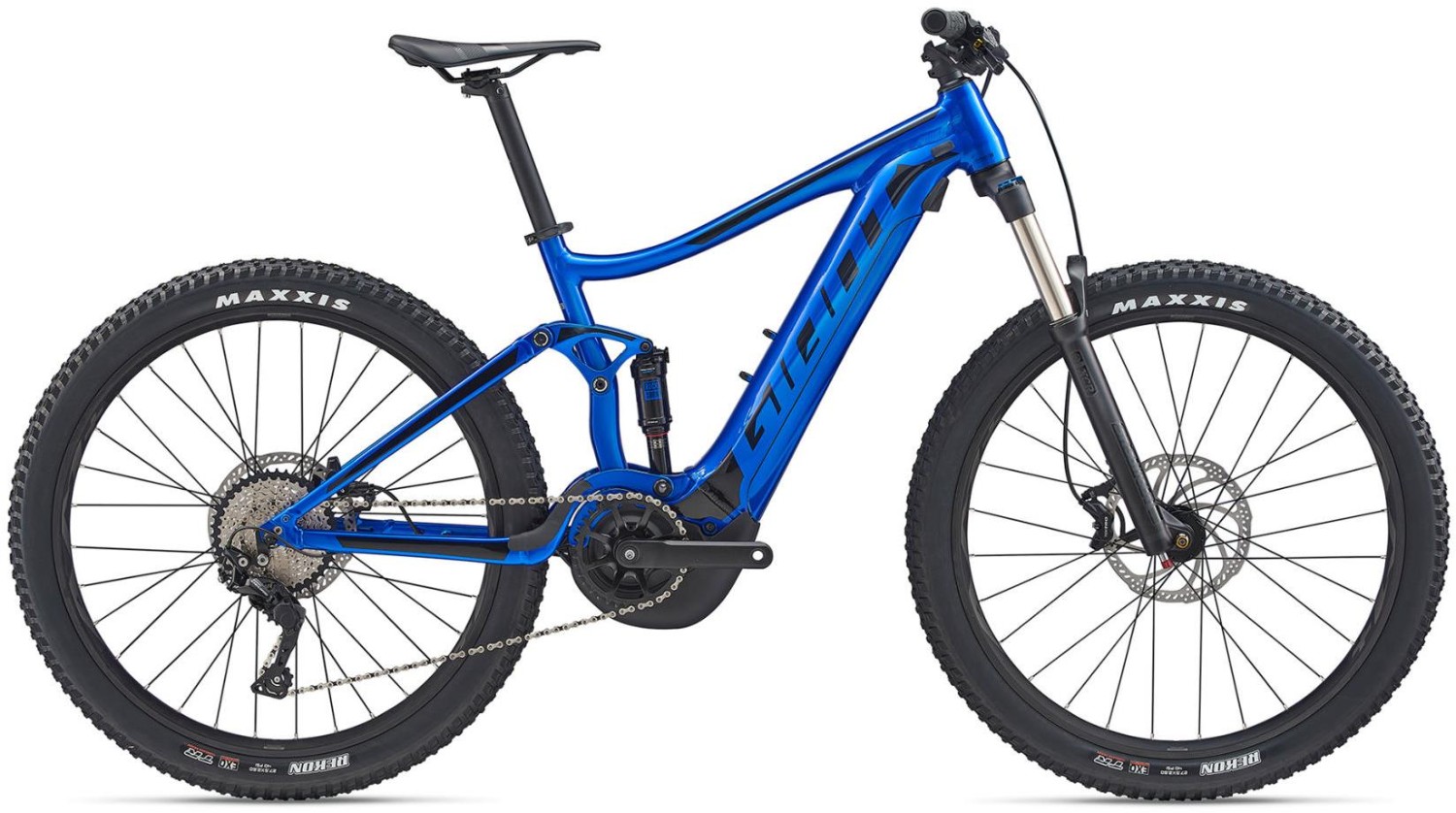

Giant Stance E+ 2 27.5" 2020 - Electric Mountain Bike
Steep climbs, technical descents, longer days on the trail. With a powerful SyncDrive Sport motor,the Giant Stance E+ 2 E-bike gives you the power and technology to ride the trails you dream about.
Key Features:
- ALUXX alloy frame with neatly integrated battery pack
- Sr Suntour XCR 34 fork offers 120mm of bump soaking suspension travel
- RockShox Monarch R shock controls the 120mm of rear wheel travel
- Shimano Deore 1x10 speed drivetrain for a wide gear range
- Tektro hydraulic disc brakes for powerful speed control
- Wheels: 27.5” with wide 2.6” Maxxis tubeless tyres
- Sizes: Small, Medium, Large, X Large
- Colour: Blue
- The Giant Stance E+ 2 Pro is available with 0% APR finance
Drive Information:
- Motor: Giant SyncDrive Sport, 70Nm powered by YAMAHA, 50-350% tuneable support
- Battery: Giant EnergyPak 400, 36V 11.3Ah Lithium-Ion Panasonic
- User interface/remote: Giant RideControl EVO, remote button
- Connectivity: Bluetooth & ANT+ connectable
Designed with trail-friendly geometry, Stance E+ helps trail riders experience off-road E-bike riding at its best. Its lightweight, strong and stiff ALUXX SL aluminium frame with FlexPoint suspension makes tricky singletrack trails easier to ride. It features 120mm of rear suspension travel and 130mm up front, plus the stable, nimble ride quality of 27.5+ wheels. The SyncDrive Sport motor delivers 350 percent tuneable support ratios through the Giant E-bike App. The RideControl ONE integrated handlebar support buttons offer ergonomic control, and the EnergyPak 500Wh battery system lets you extend the ride.
Highlights:
- Strong motor support
The SyncDrive Sport motor with 70Nm of torque and 360 percent tuneable support helps you climb steep, rugged trails with ease. - Total control
ALUXX SL aluminium frame with 120mm FlexPoint suspension and 27.5+ wheels produces a smooth, confident ride on technical trails. Giant E-bike App gives you navigation, health and fitness functions. - Efficient
400Wh EnergyPak offers the longest possible range. The integrated battery pack is easy to charge and can charge up to 80% in just 60 minutes with new 6A Fast Charger.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade aluminum, 120mm FlexPoint suspension system |
| Fork | SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 Quick-Loc thru-axle |
| Rear Shock | RockShox Monarch R, High Volume, 184x44mm, custom tuned |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x780mm |
| Front Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Tektro HD-M745 Orion |
| Rear Mech | Shimano Deore, 10-Speed, Shadow+ |
| Shifters | Shimano Deore |
| Speed | 10 |
| Rims | Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized |
| Front Hub | Giant eTracker Sport, 15mm Thru-Axle |
| Rear Hub | Giant eTracker Sport, 141mm QR, e-bike optimized |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 27.5x2.6", Exo protect, Tubeless Ready |
| Rear Tyre | Maxxis Rekon 27.5x2.6", Exo protect, Tubeless Ready |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Giant Contact, Neutral |
| Chainset | Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring |
| Chain | KMC e.10 Sport, e-bike optimized |
| Cassette | Shimano HG500-10, 11-42T, 10-Speed |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 400wh |
| Motor | Giant |
| User Interface | Giant RideControl ONE |
Giant Stance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Stance 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1162 | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| STACK (mm) | 590 | 599 | 608 | 622 |
| REACH (mm) | 405 | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 731 | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Stance 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 |
| STACK (mm) | 599 | 608 | 622 |
| REACH (mm) | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 165 | 170 |
| WHEEL SIZE | 29" | 29" | 29" |
