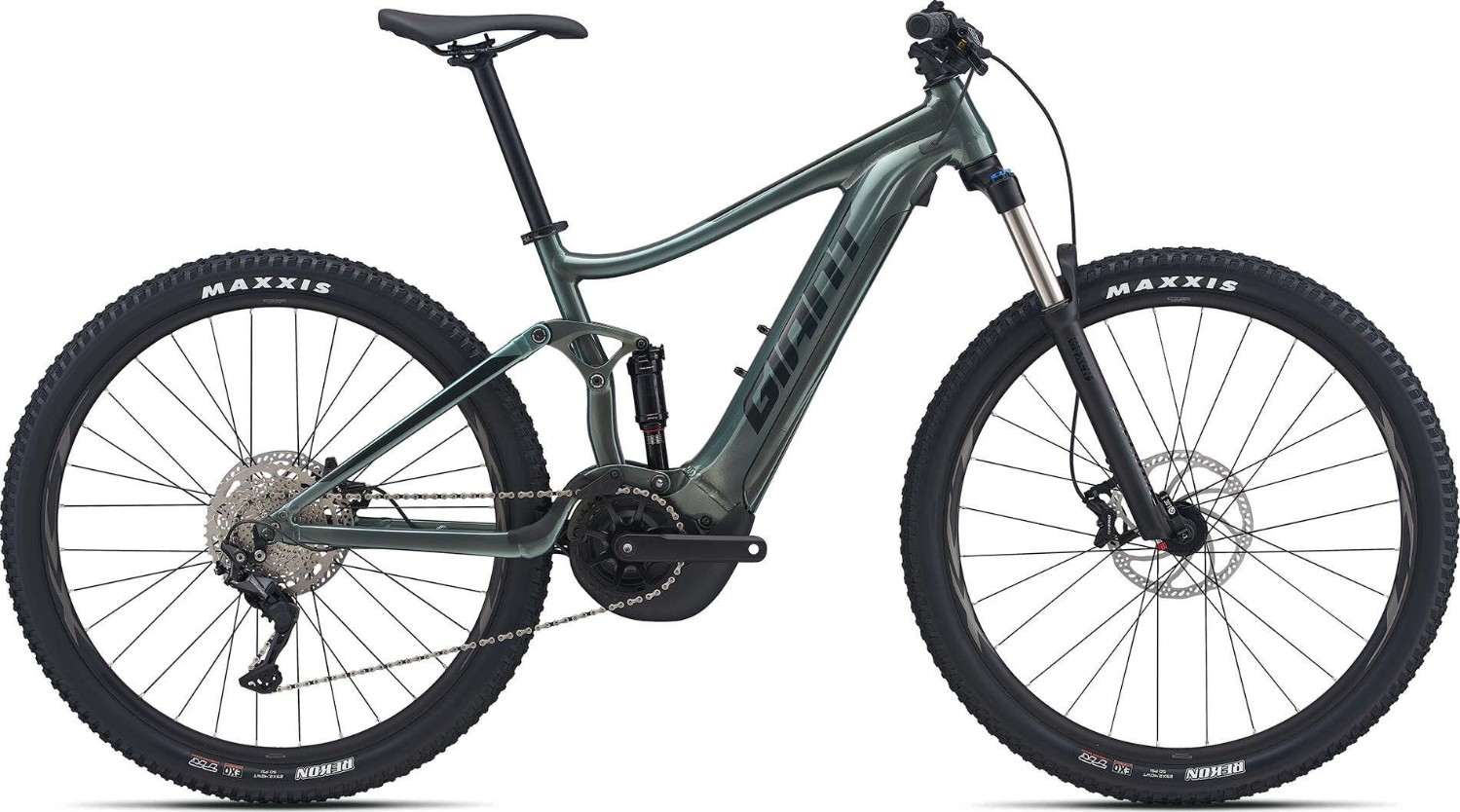

Giant Stance E+ 2 29er 2021 - Electric Mountain Bike
Steep climbs, technical descents, longer days on the trail. With a smooth suspension setup and a seamless boost of pedalling support, this E-bike gives you the power and technology to ride the trails you dream about.
Designed with trail-friendly geometry, Stance E+ helps beginner or intermediate trail riders experience off-road E-bike riding at its best. Its lightweight, strong and stiff ALUXX SL aluminium frame with FlexPoint suspension makes tricky singletrack trails easier to ride. It features 120mm of rear suspension travel and 130mm up front, plus the stable, nimble ride quality of 29-inch wheels. The SyncDrive Sport motor delivers 350 percent tunable support ratios through the Giant E-bike App. The new RideControl ONE with EVO display compatibility has integrated handlebar support buttons for improved ergonomic control. The EnergyPak battery system lets you extend the ride, and now you can charge it up quickly with a newly designed smart charger.
Strong motor support
The SyncDrive Sport motor with 70Nm of torque and 360 percent tunable support helps you climb steep, rugged trails with ease.
Total control
ALUXX SL aluminium frame with 120mm FlexPoint suspension and 29-inch wheels produces a smooth, confident ride on technical trails. The Giant E-bike App gives you navigation, health and fitness functions.
Efficient
EnergyPak offers a long range and is easy to charge up to 80 percent in 2.5 hours with new 6A Fast Charger.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminium, 120mm FlexPoint Suspension System |
| Fork | SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 Quick-Loc thru-axle |
| Rear Shock | RockShox Monarch R, High Volume, 184x44mm, custom tuned |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x780mm |
| Front Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Tektro HD-M745 Orion |
| Front Mech | MRP 1X CS custom |
| Rear Mech | Shimano Deore, 10-Speed, Shadow+ |
| Shifters | Shimano Deore |
| Speed | 10 |
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
| Front Hub | Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR |
| Rear Hub | Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready |
| Rear Tyre | Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Giant Sport |
| Chainset | Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170) |
| Chain | KMC e.10 Sport, e-bike optimized |
| Cassette | Shimano CS-M4100-10, 11-46T, 10-speed |
| Battery Size (WH) | Giant EnergyPak Smart 500, 36V Integrated Lithium-Ion |
| Motor | Giant SyncDrive Sport |
| User Interface | Giant RideControl Plus |
Giant Stance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Stance 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1162 | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| STACK (mm) | 590 | 599 | 608 | 622 |
| REACH (mm) | 405 | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 731 | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Stance 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 |
| STACK (mm) | 599 | 608 | 622 |
| REACH (mm) | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 165 | 170 |
| WHEEL SIZE | 29" | 29" | 29" |
