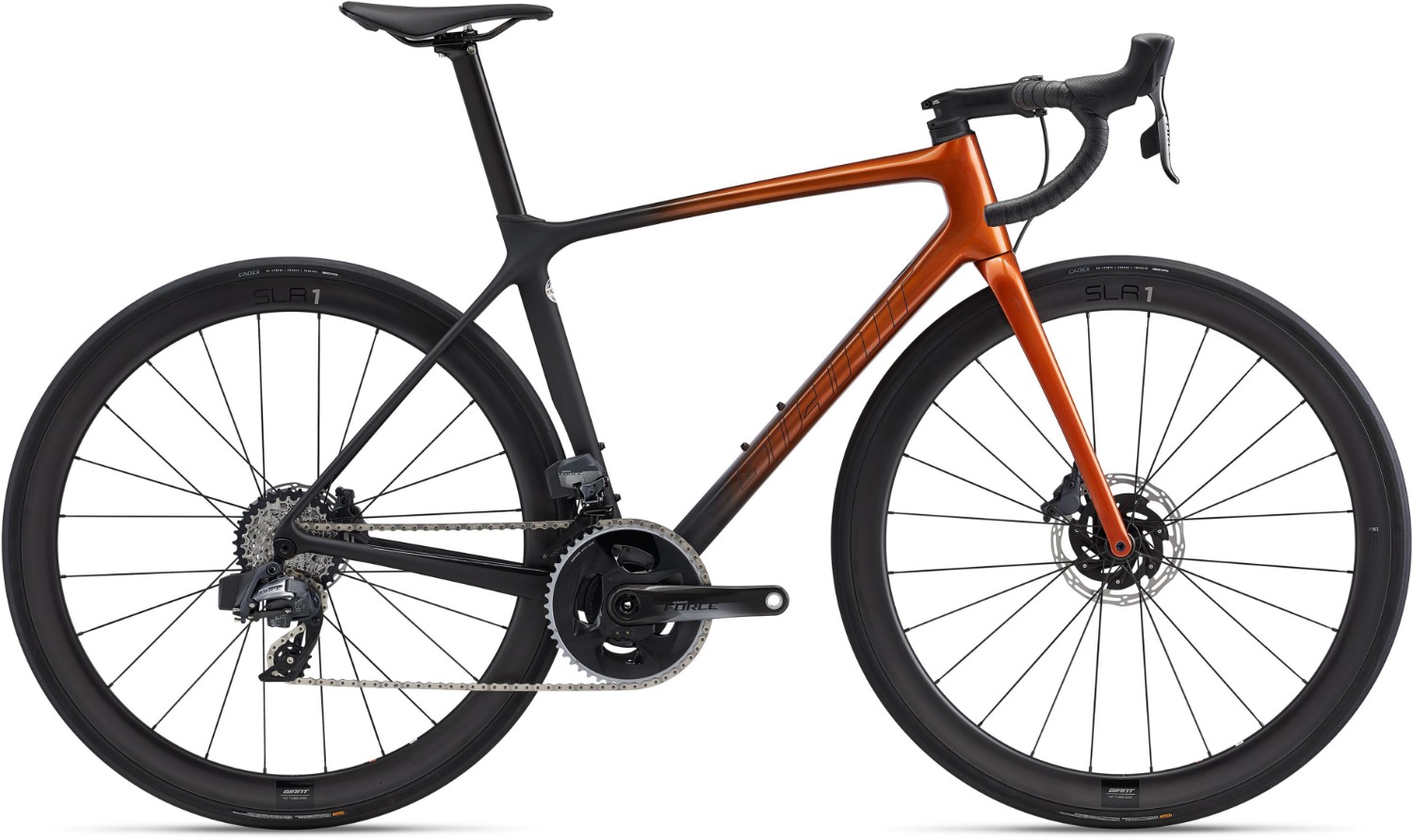

Giant TCR Advanced Pro Disc 0 AXS 2022 - Road Bike
Climb, corner and descend with unrivalled all-rounder performance. From the mountains to the flats, in all types of conditions, the new TCR Advanced Pro Disc AXS takes it to the next level with a lighter, stiffer frame and new aero-engineered tubing.
The all-new TCR Advanced Pro Disc AXS gives you the lightweight performance to score the KOM plus the confidence to push your limits on technical descents. This podium-seeking all-rounder is re-engineered with an Advanced-grade composite frame that boasts an outstanding stiff-to-weight ratio, along with new aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tyres up to 32mm, making it a versatile race machine for all types of road conditions. With its proven Compact Road geometry, OverDrive 2 front end, flat-mount disc-brake integration and smooth-riding Variant seatpost, this is a race-tuned performer that excels in all aspects of road riding.
Class-leading efficiency
With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up 32mm.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-Grade Composite, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Stem | Giant Contact SL |
| Bars | Giant Contact SLR |
| Front Brake | SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm |
| Rear Brake | SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm |
| Brake Lever | SRAM Force eTap AXS hydraulic |
| Front Mech | SRAM Force eTap AXS |
| Rear Mech | SRAM Force eTap AXS |
| Shifters | SRAM Force eTap AXS 2x12 |
| Speed | 24 |
| Rims | Giant SLR 1 42 Carbon Disc Hookless WheelSystem (19mm inner rim width) |
| Front Tyre | CADEX Race, tubeless, 700x25c (effective width 26.5mm), foldin |
| Rear Tyre | CADEX Race, tubeless, 700x25c (effective width 26.5mm), foldin |
| Seat Post | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Chainset | SRAM Force D1 DUB, 35/48with Power Halo power meter |
| Bottom Bracket | SRAM DUB, press fit |
| Chain | SRAM Force D1 |
| Cassette | SRAM Force, 12-speed, 10x33 |
| Pedals | Resin Platform |
Giant TCR Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
XS |
157 - 169 |
5’2” - 5’7” |
|
S |
165 - 175 |
5’5” - 5’9” |
|
M |
171 - 181 |
5’7” - 5’11” |
|
M/L |
177 - 187 |
5’10” - 6’2” |
|
L |
183 - 193 |
6’0” - 6’4” |
|
XL |
189 - 199 |
6’2” - 6’6” |
What size frame do I need if I am between sizes? - read here
