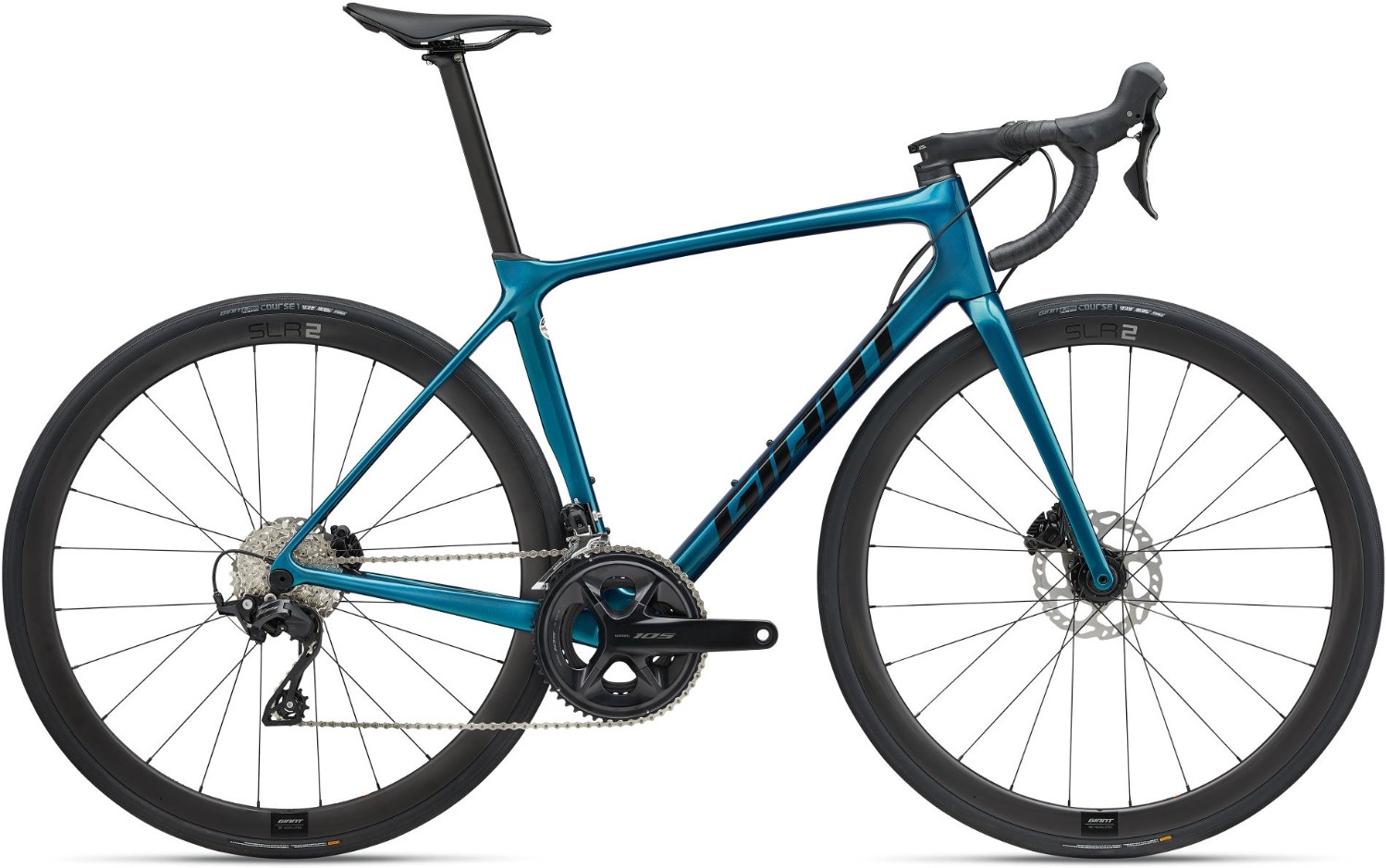

Giant TCR Advanced Pro Disc 2 2024 - Road Bike
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-Grade Composite, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Stem | Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Bars | Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Front Brake | Shimano 105 hydraulic, Shimano rotors [F]160mm, [R]140mm |
| Rear Brake | Shimano 105 hydraulic, Shimano rotors [F]160mm, [R]140mm |
| Brake Lever | Shimano 105 hydraulic |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105 |
| Shifters | Shimano 105 |
| Speed | 24 |
| Rims | Giant SLR 2 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm |
| Front Hub | Giant alloy, CenterLock, 12mm thru-axle [R |
| Rear Hub | Giant alloy, 3-pawl 30t driver, CenterLock, 12mm thru-axle |
| Spokes | SAPIM Sprint |
| Front Tyre | Giant Gavia Course 1, tubeless, 700x25c (28mm), folding |
| Rear Tyre | Giant Gavia Course 1, tubeless, 700x25c (28mm), folding |
| Seat Post | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Chainset | Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Chain | KMC X12L-1 |
| Cassette | Shimano Ultegra, 12-speed, 11x34 |
| Pedals | Resin Platform |
Giant TCR Advanced 2024 Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
XS |
157 - 169 |
5’2” - 5’7” |
|
S |
165 - 175 |
5’5” - 5’9” |
|
M |
171 - 181 |
5’7” - 5’11” |
|
M/L |
177 - 187 |
5’10” - 6’2” |
|
L |
183 - 193 |
6’0” - 6’4” |
|
XL |
189 - 199 |
6’2” - 6’6” |
What size frame do I need if I am between sizes? - read here
Giant TCR Advanced 2024 Geometry
| XS | S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| SEAT TUBE ANGLE | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| HEAD TUBE LENGTH (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| HEAD TUBE ANGLE | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| TRAIL (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| WHEELBASE (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| BOTTOM BRACKET DROP (mm) | 72 | 70 | 70 | 67 | 67 | 67 |
| STACK (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| REACH (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| STAND OVER HEIGHT (mm) | 706 | 725 | 747 | 773 | 800 | 816 |
| HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
| STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
