(no reviews)Product ID: 267161

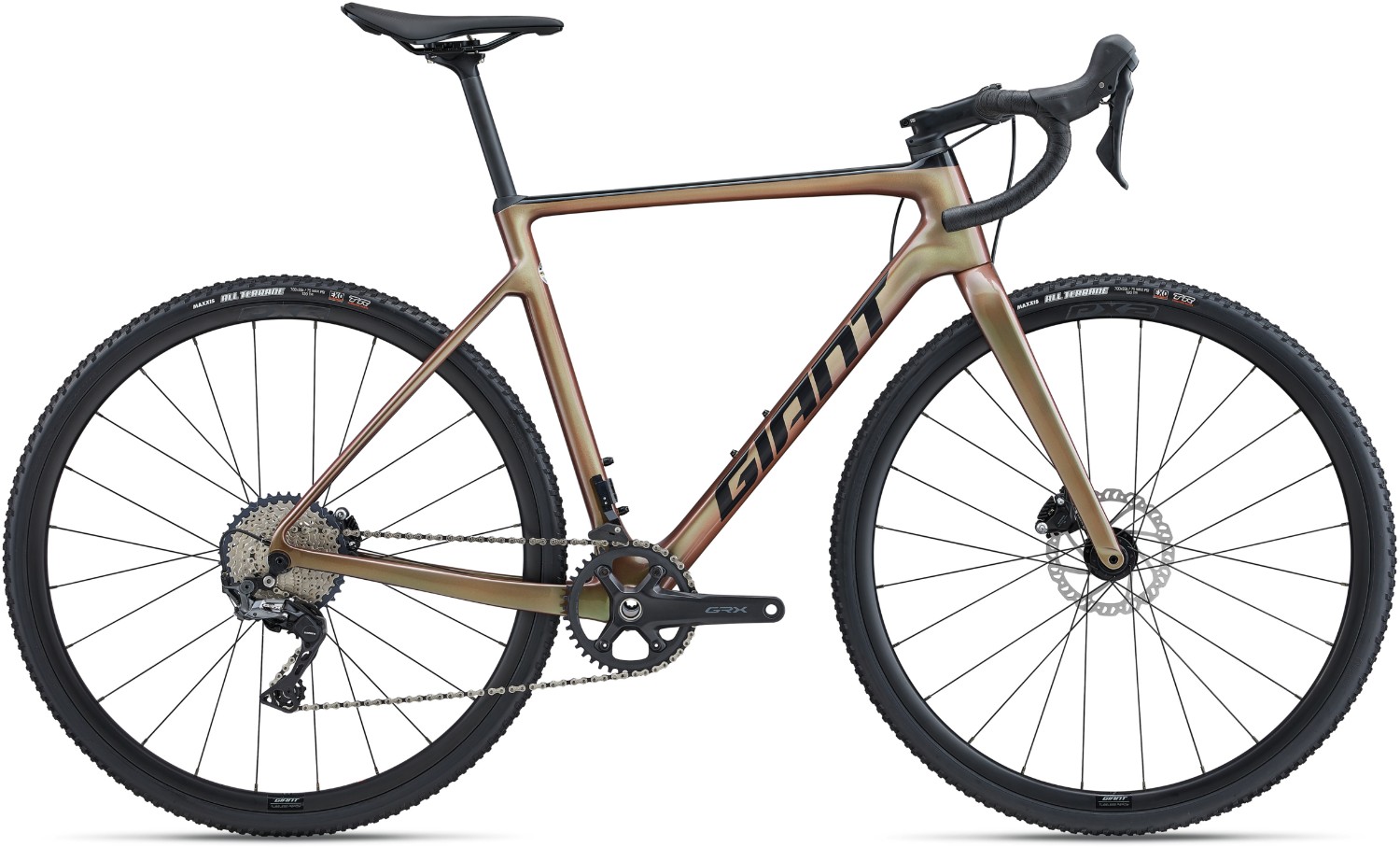

Giant TCX Advanced Pro 2 2023 - Cyclocross Bike
Elite level efficiency
Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedaling stiffness.
Total control
Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.
Smooth ride quality
D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-Grade Composite 12x142mm thru-axle, Disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, 12x100mm thru-axle, disc |
| Stem | Giant Contact SL 0 degree |
| Bars | Giant Contact SL |
| Front Brake | Shimano BR-RX400 HRD hydraulic discs, 160mm/140mm rotors |
| Rear Brake | Shimano BR-RX400 HRD hydraulic discs, 160mm/140mm rotors |
| Brake Lever | Shimano GRX RX-600 HRD |
| Rear Mech | Shimano GRX RX-812 |
| Shifters | Shimano GRX RX-600, 1x11 |
| Speed | 11 |
| Rims | Giant P-X2 Disc Wheelset (25mm inner rim width) |
| Front Hub | Giant alloy, 12mm thru-axle |
| Rear Hub | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Front Tyre | Maxxis All -Terrene 700x33c, 120tpi, folding , tubeless |
| Rear Tyre | Maxxis All -Terrene 700x33c, 120tpi, folding , tubeless |
| Seat Post | Giant D-Fuse Composite |
| Saddle | Giant Approach |
| Chainset | Shimano GRX FC RX-600-1 40T |
| Bottom Bracket | Shimano PressFit |
| Chain | KMC X11 |
| Cassette | Shimano CS-M7000-11x40 |
| Pedals | Resin Platform |
Giant TCX 2021 Sizing
|
Inside leg / Height |
26” / 66cm |
27” / 69cm |
28” / 71cm |
29” / 74cm |
30” / 76cm |
31” / 79cm |
32” / 81cm |
33” / 84cm |
34” / 86cm |
35" / 88CM |
36" / 90cm |
|
5’3” / 160cm |
XS | XS | XS | XS | XS | ||||||
|
5’4” / 163cm |
XS | XS | XS | XS | XS | ||||||
|
5’5” / 165cm |
XS | XS | S | S | S | ||||||
|
5’6” / 168cm |
|
S | S | S | S | S | |||||
|
5’7” / 170cm |
|
S | S | S | S | S | |||||
|
5’8” / 173cm |
|
S | S | S | S | S | |||||
|
5’9” / 175cm |
|
|
S | S | M | M | M | ||||
|
5’10” / 178cm |
|
|
M | M | M | M | M | ||||
|
5’11” / 180cm |
|
|
M | M | M | M | M | ||||
|
6’0” / 183cm |
|
|
M | M | M/L | M/L | M/L | ||||
|
6’1” / 185cm |
M/L |
M/L |
M/L |
M/L |
M/L |
||||||
| 6’2” / 188cm | M/L | M/L | L | L | L | ||||||
| 6’3” / 190cm | L | L | L | L | L | L | |||||
| 6’4” / 193cm | L | L |
Giant TCX 2021 Geometry
| XS | S | M | ML | L | |
|---|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 490 | 505 | 525 | 545 | 555 |
| SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (mm) | 515 | 530 | 545 | 560 | 575 |
| HEAD TUBE LENGTH (mm) | 118 | 133 | 148 | 163 | 178 |
| HEAD TUBE ANGLE | 70.7° | 71.0° | 71.5° | 72.0° | 72.5° |
| FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 |
| TRAIL (mm) | 70.3 | 68.3 | 65.1 | 61.8 | 58.6 |
| WHEELBASE (mm) | 1006 | 1014 | 1020 | 1030 | 1040 |
| CHAIN STAY LENGTH (mm) | 430 | 430 | 430 | 430 | 430 |
| BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 | 60 |
| STACK (mm) | 525 | 540 | 556 | 572 | 589 |
| REACH (mm) | 365 | 370 | 375 | 385 | 395 |
| STAND OVER HEIGHT (mm) | 775 | 788 | 807 | 826 | 832 |
| HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 |
| STEM LENGTH (mm) | 70 | 80 | 90 | 100 | 100 |
| CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
