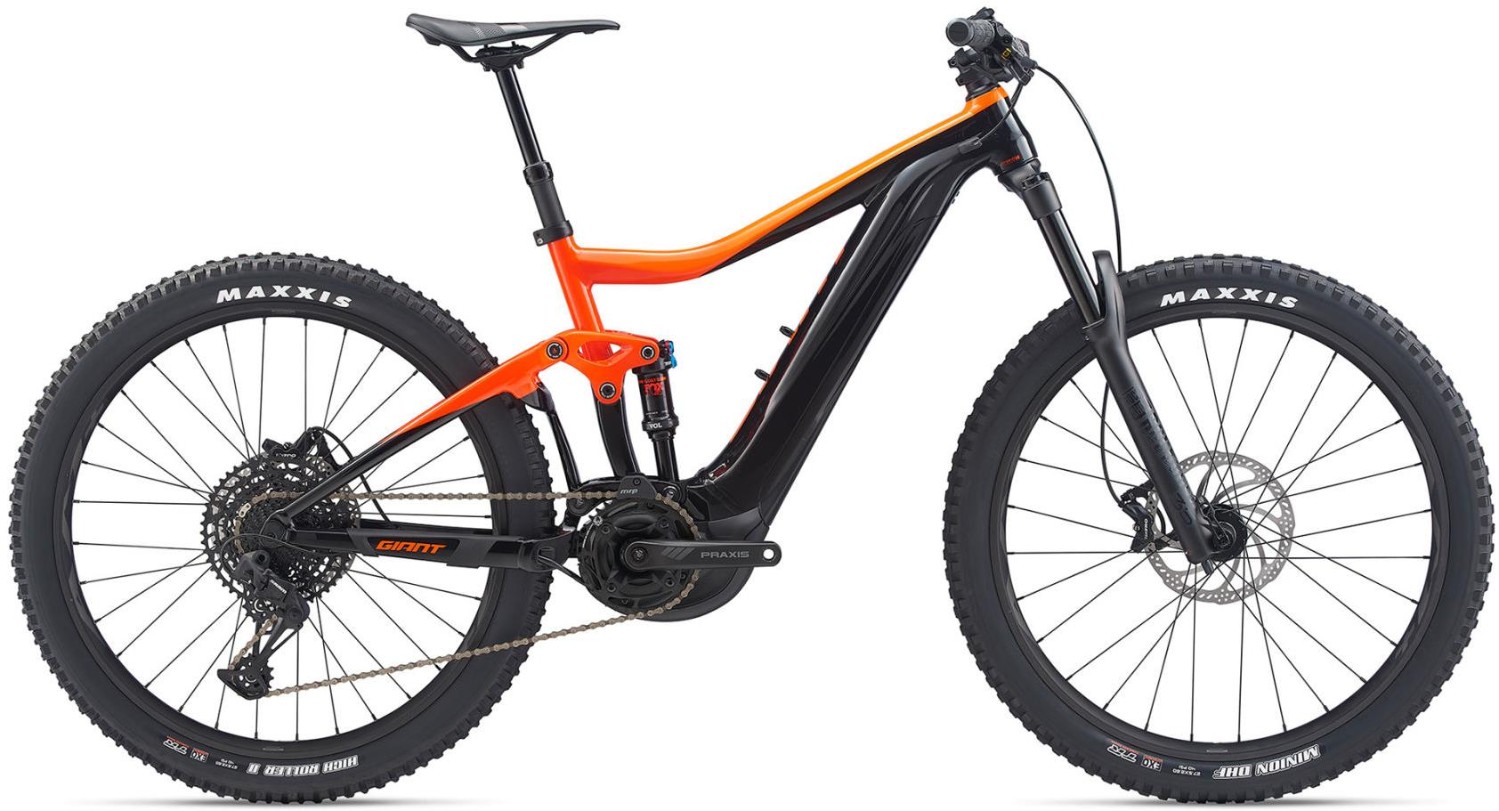

Giant Trance E+ 3 Pro 27.5" 2020 - Electric Mountain Bike
Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the power and freedom to extend your trail-riding adventures with the Giant Trance E+ Pro 27.5.
Key Features:
- ALUXX SL-Grade alloy frame with neatly integrated battery pack
- Fox Float DPS shock controls the 140mm of Maestro rear wheel travel
- RockShox 35 Gold RL fork offers 150mm of bump soaking suspension travel
- SRAM SX Eagle 12-speed drivetrain for a very wide gear range
- Tektro four piston hydraulic disc brakes for powerful speed control
- 5” wheels with wide 2.6” Maxxis tubeless tyres
- Sizes: Small, Medium, Large, X Large
- Colour: Red
- The Giant Trance E+ 3 Pro is available with 0% APR finance
Drive Information:
- Motor: Giant SyncDrive Pro, 80Nm powered by YAMAHA, 360% tuneable support
- Battery: Giant EnergyPak 500, 36V 11.3Ah Lithium-Ion Panasonic
- User interface/remote: Giant RideControl ONE, remote button
- Connectivity: Giant E-Bike smart phone app
The SyncDrive Pro motor gives the Trance E+ Pro a massive 80Nm of torque and 360 percent tuneable support, all controlled by the new Giant E-bike App. This lets you enjoy every aspect of E-bike riding, whether you want to ride with full power or tune it less aggressively. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm in the front, and frame geometry that’s designed for 27.5 wheels, this is a whole new way to tackle technical singletrack trails. The EnergyPak 500 is cleanly integrated into the downtube of the lightweight ALUXX SL aluminium frame. Plus, the new RideControl ONE centre gives you navigation, health and fitness tracking capabilities via the Ride Control app.
Highlights:
- Total control
ALUXX SL aluminium frameset, 27.5 wheels, and 140mm of smooth Maestro suspension travel give you superior control for riding technical terrain. - Powerful motor
High-performance SyncDrive Pro motor with 80Nm of torque and tuneable support ratios up to 360 percent lets you ride further and master all terrain. - Smart technology
Equipped with smart features including the integrated RideControl ONE that when hooked up with the E-Bike app provides navigation, health and fitness tracking capabilities.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Rock Shox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, MaxleLite |
| Rear Shock | Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail, 35x780mm |
| Front Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Tektro HD-M745 Orion |
| Front Mech | MRP 1X CS custom |
| Rear Mech | SRAM SX Eagle 12-speed |
| Shifters | SRAM SX Eagle 12-speed |
| Speed | 12 |
| Rims | Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized |
| Front Hub | Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, 110x15 |
| Rear Hub | Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, 148x12mm Thru-axle, e-bike optimized |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimized |
| Front Tyre | Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound |
| Rear Tyre | Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound |
| Seat Post | Giant Contact Switch, dropper, 30,9mm |
| Saddle | Giant Contact, Neutral |
| Chainset | SRAM X-Sync Eagle 38T 104BCD chainring Praxis e-Cadet+ custom forged crankarm set |
| Chain | SRAM SX Eagle PowerLock, 12-speed |
| Cassette | SRAM PG-1210, 11-50T, 12-Speed |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500wh |
| Motor | Giant |
| User Interface | Giant RideControl ONE |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
