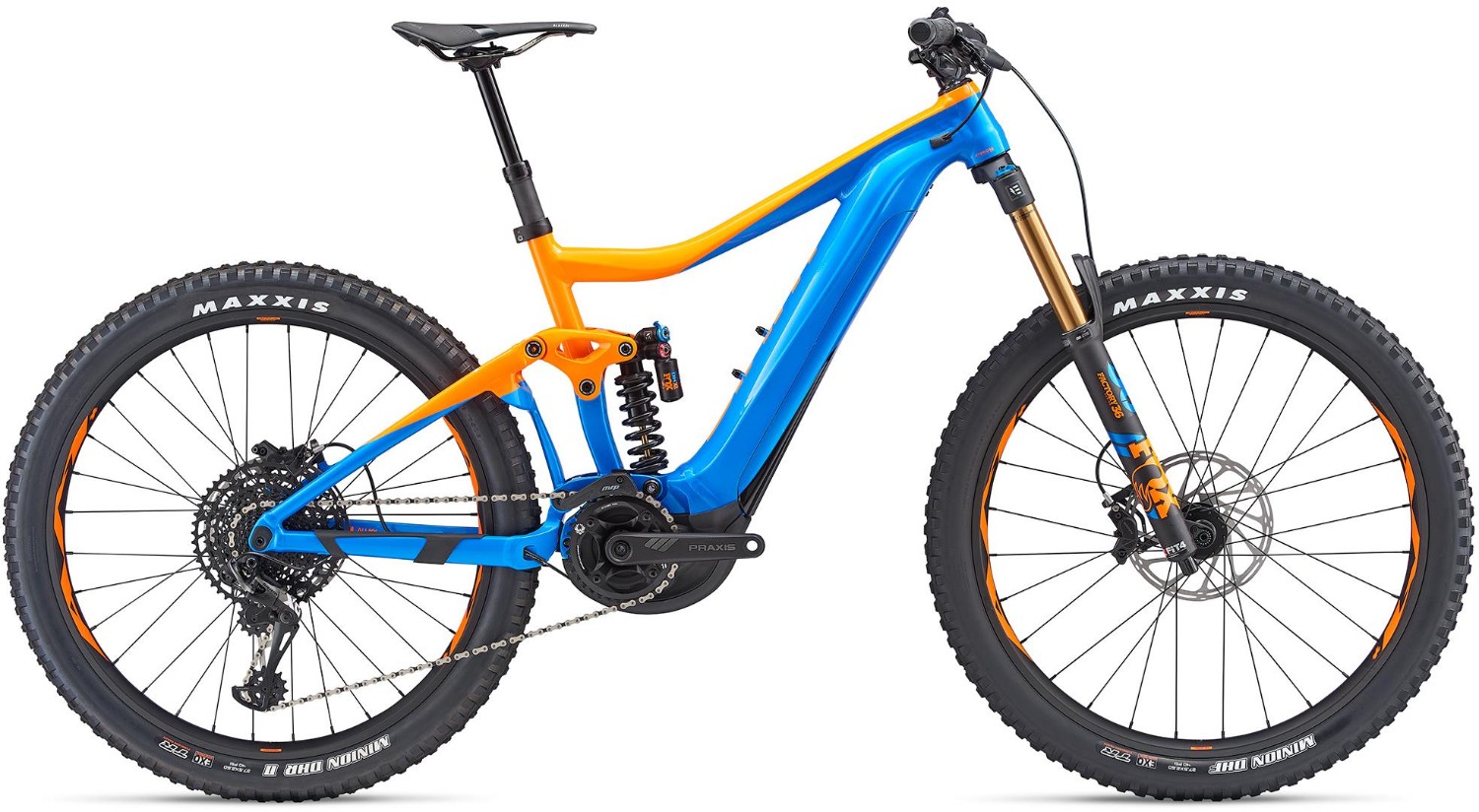

Giant Trance SX E+ 0 Pro 27.5"+ 2019 - Electric Mountain Bike
- ShowProduct Information Ride more challenging trails with less effort. The Giant Trance SX E+ 0 Pro is an electric mountain ... read more
- Show Customer Reviews (2)
- Show Sizing
- Show Electric MTB Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
Ride more challenging trails with less effort. The Giant Trance SX E+ 0 Pro is an electric mountain bike with a powerful pedal assist motor combined with a dialled full suspension trail MTB chassis and a hard-hitting component spec. With a 160mm travel Fox 36 Factory shock and coil sprung DHX2 shock, this is an e bike that offers a little more capability on technical trails.
- ALUXX SL-Grade alloy frame with neatly integrated battery pack
- Fox Float DHX2 Coil shock controls the 140mm of Maestro rear wheel travel
- Fox 36 Float Factory fork for 160mm of bump soaking suspension travel
- SRAM GX Eagle 1x12 speed drivetrain for a 500% gear range
- SRAM Code four piston hydraulic disc brakes for powerful speed control
- 27.5” wheels with wide 2.6” Maxxis tubeless tyres
- Sizes: Small, Medium, Large, X Large
- Colour: Black/Orange
- The Giant Trance E+ 1 Pro is available with 0% APR finance
- Motor: Giant SyncDrive Pro, 80Nm powered by YAMAHA, 360% tuneable support
- Battery: Giant EnergyPak 500, 36V 11.3Ah Lithium-Ion Panasonic
- User interface/remote: Giant RideControl ONE, remote button
- Connectivity: Giant E-Bike smart phone app
Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the power and freedom to extend your trail-riding adventures.
Total control: ALUXX SL frameset, 27.5 wheels and 140mm of smooth Maestro suspension travel give you superior control for riding technical terrain.
Powerful motor: High-performance SyncDrive Pro motor with 80Nm of torque and adjustable support ratios (up to 360 percent) lets you ride further and master all terrain.
Smart technology: Equipped with smart features including the integrated RideControl ONE with navigation, health and fitness tracking capabilities.
ALUXX SL Aluminium Technology
This high-performance level, state-of-the-art Aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
SyncDrive Pro: SyncDrive Pro is tuned to deliver a powerful, performance-oriented riding style. The lightweight and compact motor is updated for 2019 with the possibility to tune it just the way the rider wants. With a predictable output that reacts to human input, the motor produces linear support to give you more control while riding.
The 80Nm power output offers superior torque and support ratios up to 360 percent. This means that, in the Power mode, 100 percent of human torque input offers 360 percent pedal-assist. This offers more freedom in how the E-bike rides and handles.
Made for performance minded riders, this motor offers 80Nm of powerful support with up to 120 max rpm in the three upper support modes (Active, Sport, Power). The rider experiences no power loss while reaching higher levels of cadence, which makes steep climbs more accessible and comfortable. At the two entry support modes, the rider is rewarded with 110 max rpm and 80Nm of motor torque.
SyncDrive Pro is tuned to give quick and direct response to pedalling, delivering 100% of motor torque in less than 190 milliseconds. Both the ISIS bottom bracket interface and clutch have been updated to provide a quicker, more direct response. Backlash of the ratchet mechanism is reduced by one third and a hollow axle shaft creates a quicker, more direct response. With the narrowest Q-factor of 168mm, SyncDrive Pro makes performance riding even more natural.
SUPERIOR POWER OUTPUT: Giant’s most powerful motor technology with a massive 80Nm of torque for steep climbs and a 360 percent support ratio.
TUNEABLE PERFORMANCE: The rider can adjust the support ratios for a more dynamic ride experience that matches every rider’s individual needs.
LIGHTWEIGHT & COMPACT: A lighter, more compact motor package with a narrow Q-factor delivers the ultimate cycling experience.
RideControl ONE: Takes your E-bike riding experience to new levels with integrated button controls and a clean handlebar free of any display. The E-bikes equipped with RideControl ONE can connect with the Giant E-bike App* to function as your E-bike display.
Small, integrated buttons let you shift through support modes with ease. The buttons are designed to use in all conditions. They are more robust and designed with a pattern for added grip. The controls are thoughtfully designed with LED lighting that shows your battery level and support mode while you are riding. The RideControl ONE has a minimalist design, displaying the essential information needed to help riders perform their best.
SMART INTEGRATION: Smart, minimalist technology and design featuring integrated control buttons.
EASY HANDLING: With only a few button controls and indicators, it offers simple control of your E-bike
PedalPlus 4: Giant’s PedalPlus 4-sensor technology precisely measures the amount of force a rider is applying to the pedals so that the motor delivers a seamless power boost. The system uses speed and torque sensors along with motor and pedal rotation sensors to produce even power across the entire gear range. The result is predictable power that feels totally natural in any gear and makes riding the bike feel smooth and powerful on all types of terrain.
TORQUE SENSOR TECHNOLOGY: The torque sensor reacts to pedal pressure. The more pressure you apply to the pedals, the more support you get from the motor. It precisely measures this force so that the motor can deliver a seamless power boost.
SPEED SENSOR TECHNOLOGY: The speed sensor works independently from the pressure you are putting on the pedals. It precisely measures the speed the rider is travelling.
MOTOR AND PEDAL ROTATION SENSORS: Allows the motor to run as smoothly and seamlessly as possible
NATURAL FEELING: The torque sensor measures the amount of power the rider is applying to the pedals so that the motor can replicate the natural riding style, adding assistance when needed.
EFFICIENCY: The PedalPlus 4-sensor technology maximises energy efficiency for both the rider and the battery system.
Instant Support: The combination of the sensor technology and the instantaneous response of the SyncDrive motor creates a smooth and powerful riding experience.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
|Frame:||ALUXX SL-grade aluminum, 140mm Maestro suspension system, 'Boost' 148x12QR|
|Fork:||Fox 36 Factory 27,5+ 160mm, EVOL, Fit4 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized|
|Rear Shock:||Fox Factory DHX2 Coil, 2-position lever, 185x52.5mm Trunnion mount|
|Stem:||Giant Contact SL 35|
|Bars:||Giant Contact SL 35 Trail, 800mm|
|Front Brake:||SRAM Code R, hydraulic disc, 200mm|
|Rear Brake:||SRAM Code R, hydraulic disc, 200mm|
|Brake Lever:||SRAM Code R|
|Front Mech:||MRP 1X V3 custom full-size HD upper|
|Rear Mech:||SRAM XO1 Eagle|
|Shifters:||SRAM XO1 Eagle 1x12|
|Rims:||Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized|
|Front Hub:||Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized|
|Rear Hub:||Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized|
|Spokes:||Sapim E-Lite [r] Race [f], e-bike optimized|
|Front Tyre:||Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO protect, Dual Compound|
|Rear Tyre:||Maxxis Minion DHR II 27.5x2.6" foldable, Tubeless, EXO, Dual Compound|
|Seat Post:||Giant Contact Switch, dropper, 30,9mm, under bar remote lever|
|Saddle:||Giant Contact SL, Neutral|
|Chainset:||SRAM X-Sync Eagle 36T 104BCD chainring Praxis e-Cadet+ custom forged crankarm set|
|Chain:||SRAM GX Eagle PowerLock|
|Cassette:||SRAM PG-1230, 11-50T|
|Battery (Wh):||500 Wh|
|User Interface:||Giant RideControl One|
