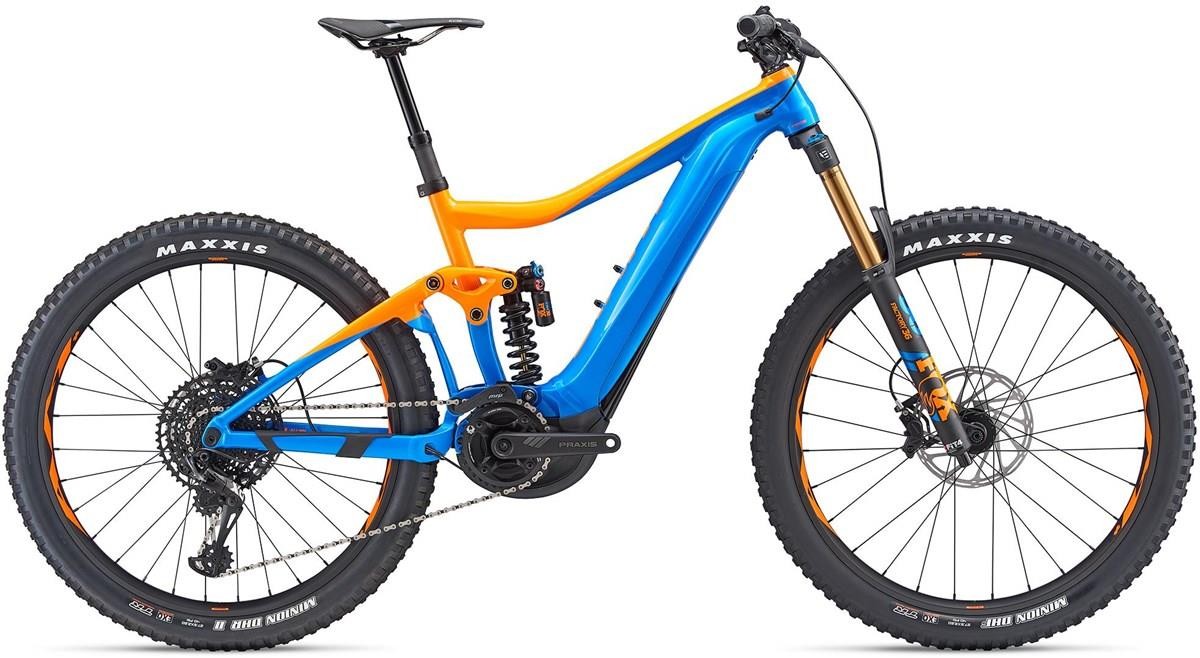

Giant Trance SX E+ 0 Pro 27.5"+ - Nearly New - M 2019 - Electric Mountain Bike
This Giant Trance electric mountain bike is in great condition. However, having been lightly used, there are 11 miles of demo use on the bike. Cosmetically, the bike also has some damage on the rear triangle, head tube, down tube and fork.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12 month Tredz warranty, plus any additional manufacturer warranty which may apply.
Ride more challenging trails with less effort. The Giant Trance SX E+ 0 Pro is an electric mountain bike with a powerful pedal assist motor combined with a dialled full suspension trail MTB chassis and a hard-hitting component spec. With a 160mm travel Fox 36 Factory shock and coil sprung DHX2 shock, this is an e bike that offers a little more capability on technical trails.
Key Features:
• ALUXX SL-Grade alloy frame with neatly integrated battery pack
• Fox Float DHX2 Coil shock controls the 140mm of Maestro rear wheel travel
• Fox 36 Float Factory fork for 160mm of bump soaking suspension travel
• SRAM GX Eagle 1x12 speed drivetrain for a 500% gear range
• SRAM Code four piston hydraulic disc brakes for powerful speed control
• 27.5” wheels with wide 2.6” Maxxis tubeless tyres
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade aluminum, 140mm Maestro suspension system, 'Boost' 148x12QR |
| Fork | Fox 36 Factory 27,5+ 160mm, EVOL, Fit4 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized |
| Rear Shock | Fox Factory DHX2 Coil, 2-position lever, 185x52.5mm Trunnion mount |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact SL 35 Trail, 800mm |
| Front Brake | SRAM Code R, hydraulic disc, 200mm |
| Rear Brake | SRAM Code R, hydraulic disc, 200mm |
| Brake Lever | SRAM Code R |
| Front Mech | MRP 1X V3 custom full-size HD upper |
| Rear Mech | SRAM XO1 Eagle |
| Shifters | SRAM XO1 Eagle 1x12 |
| Speed | 12 |
| Rims | Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized |
| Front Hub | Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized |
| Rear Hub | Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimized |
| Front Tyre | Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO protect, Dual Compound |
| Rear Tyre | Maxxis Minion DHR II 27.5x2.6" foldable, Tubeless, EXO, Dual Compound |
| Seat Post | Giant Contact Switch, dropper, 30,9mm, under bar remote lever |
| Saddle | Giant Contact SL, Neutral |
| Chainset | SRAM X-Sync Eagle 36T 104BCD chainring Praxis e-Cadet+ custom forged crankarm set |
| Chain | SRAM GX Eagle PowerLock |
| Cassette | SRAM PG-1230, 11-50T |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500 Wh |
| Motor | Giant |
| User Interface | Giant RideControl ONE |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
