(2)Product ID: 261678

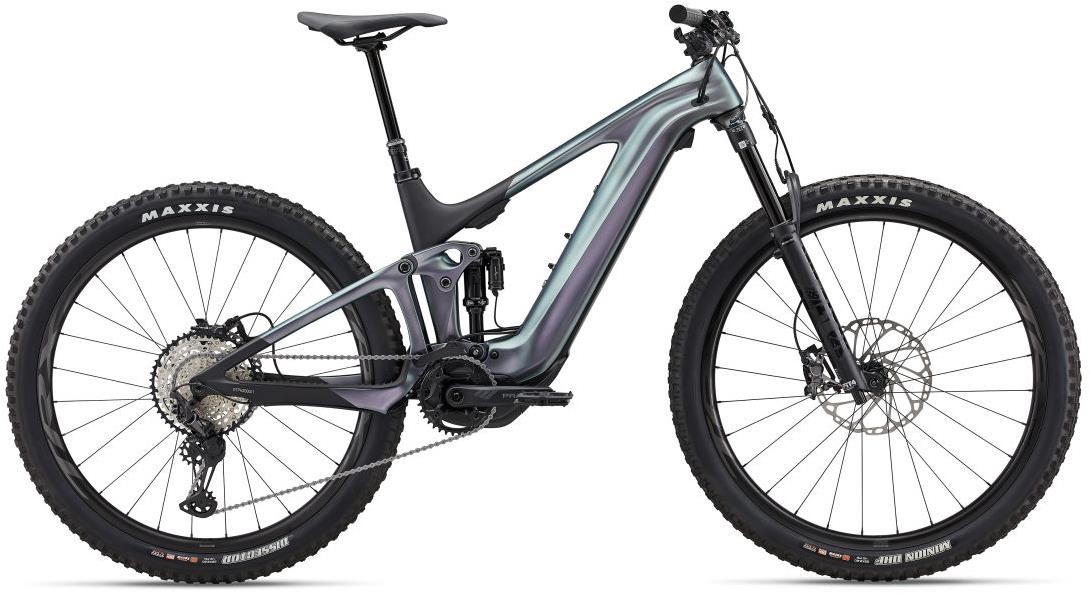

Giant Trance X Advanced E+ 1 2025 - Electric Mountain Bike
The Trance X Advanced E 1 represents a new generation of trail e-bikes, blending power, control and versatility into one package. Its Advanced-grade composite frame keeps weight low while maintaining the stiffness needed for confident handling on technical terrain. The Maestro suspension system, paired with 150mm front and 140mm rear travel, delivers a balanced ride that absorbs rough trails while remaining efficient on climbs.
Key Features
- Advanced-grade composite frame with Maestro suspension and adjustable geometry flip chip
- Fox 36 Performance Elite Live Valve fork, 150mm travel, adaptive electronic suspension
- Fox Float X Live Valve rear shock, 140mm travel, responsive electronic control
- Shimano Deore XT 12-speed drivetrain with wide-range 10-51T cassette
- Shimano Deore XT 4-piston hydraulic disc brakes with 220mm rotors
- 29” e-TRX carbon wheels with Maxxis Minion DHF & Dissector 2.6” tyres
- Live Valve electronic suspension system for automatic terrain adjustment
- Available with 0% APR finance
Drive Information
- SyncDrive Pro2 motor delivering up to 85Nm of torque
- Giant EnergyPak 800Wh battery, range extender compatible
- RideControl GO integrated LED console with Ergo 3 remote control
A standout feature is the Fox Live Valve electronic suspension system, which automatically adapts to the trail in real time. This smart system helps keep the bike composed over changing terrain, improving both efficiency and control without the need for manual adjustment.
Power comes from Giant’s SyncDrive Pro2 motor, delivering 85Nm of torque for strong, responsive assistance, even at lower cadences. The large 800Wh EnergyPak battery supports longer rides, and compatibility with a range extender offers even more distance when needed.
The adjustable geometry flip chip allows you to tailor the bike’s handling to suit your riding style or terrain. Set it low for aggressive descending and stability at speed, or switch to the high position for a more upright, efficient climbing position.
Giant has also focused on cockpit simplicity, with the RideControl GO button integrated neatly into the top tube and the Ergo 3 remote providing intuitive control. Combined with high-performance components like Shimano Deore XT gearing and powerful 4-piston brakes, this is a capable and well-rounded e-MTB ready for serious trail riding.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible |
| Fork | Fox 36 Performance Elite Live Valve E-Tuned, 29er, 150mm travel, 44mm offset, Fit4 damper, Kabolt-X 110, electronic adaptive suspension, e-bike integrated |
| Rear Shock | Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact SL 35, 35x780mm |
| Front Brake | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm |
| Rear Brake | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm |
| Brake Lever | Shimano Deore XT, I-spec EV |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore XT, 12-Speed, Shadow+ |
| Shifters | Shimano Deore XT |
| Speed | 12 |
| Rims | e-TRX Hookless Carbon Composite Clincher, 29", 30mm inner width |
| Front Hub | e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle |
| Rear Hub | e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle |
| Front Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Rear Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Seat Post | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
| Saddle | Giant Romero, Neutral |
| Chainset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160mm, M/L: 165mm, XL:170mm) |
| Bottom Bracket | Integrated |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M7100, 10-51T, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible |
| Motor | Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology |
| User Interface | Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
