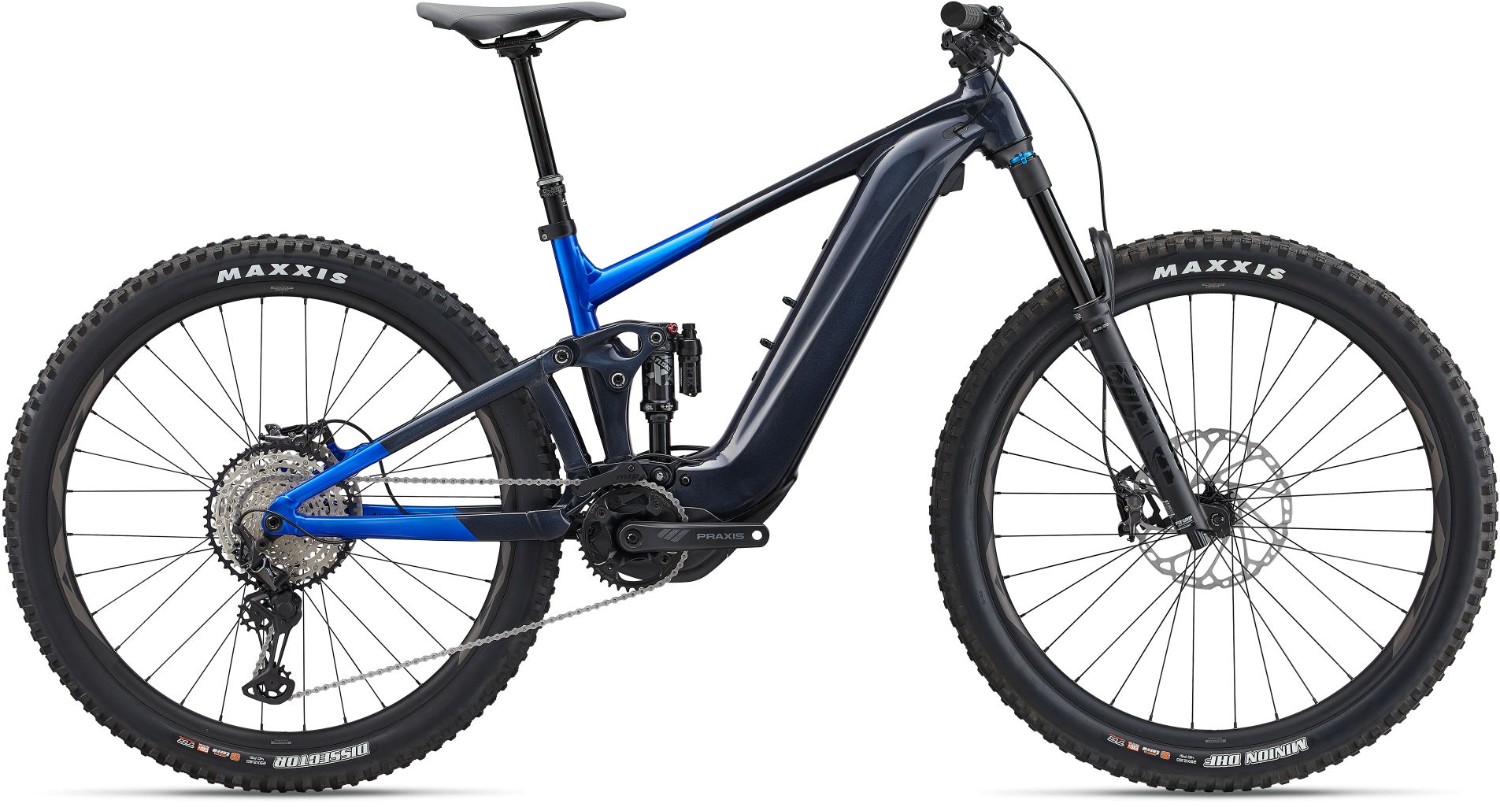

Giant Trance X E+ 1 2024 - Electric Mountain Bike
The Giant Trance X E+ 1 is a true powerhouse for the adventurous rider. Crafted with an Aluxx SL-grade aluminium frame and an advanced forged composite linkage, it incorporates a 140mm Maestro suspension system for seamless performance. The Fox 36 Float Performance E-tuned fork and Fox Float X Performance rear shock deliver 150mm of travel, providing a balanced and stable ride. With a 12-speed Shimano Deore XT drivetrain, powerful Shimano Deore XT hydraulic disc brakes, and Giant AM 29" rims with Maxxis Minion and Dissector tyres, this e-bike ensures superior control and traction on any terrain.
Key Features:
- Frame: Aluxx SL-grade aluminium, Advanced Forged Composite Linkage, 140mm Maestro Suspension
- Front Suspension: Fox 36 Float Performance E-tuned, 29er, 150mm Travel
- Rear Suspension: Fox Float X Performance, 140mm Travel
- Drivetrain: Shimano Deore XT 12-speed
- Brakes: Shimano Deore XT BR-M8120, 4-Piston, Hydraulic Disc, 220mm
- Wheels: Giant AM 29", Tubeless Ready, 30mm Inner Width, Sapim E-Lite Spokes
- Finance: Available with 0% APR finance
Drive Information:
- Motor: Giant SyncDrive Pro2, 85Nm Torque
- Battery: Giant EnergyPak 800Wh, EnergyPak Plus 250 Range Extender Compatible
- User Interface: Giant RideControl Go, Frame Integrated LED Console, Optional Wireless ANT+ Display
Immerse yourself in a ride like never before with the key performance factors of the Trance X E+ 1. The SyncDrive Pro2 motor with 85Nm of torque ensures powerful and smooth support, while the optimised Maestro suspension delivers 140mm rear and 150mm front travel for trail-riding control. The adaptable flip chip feature allows you to fine-tune handling, adapting to varying trail conditions and individual riding styles. With 0% APR finance options, the Trance X E+ 1 is not just an e-bike; it's a trail companion, ready to conquer any terrain with precision and confidence.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible |
| Fork | Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110 |
| Rear Shock | Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail, 35x780mm |
| Front Brake | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm |
| Rear Brake | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm |
| Brake Lever | Shimano Deore XT, I-spec EV |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore XT, 12-Speed, Shadow+ |
| Shifters | Shimano Deore XT 1x12 |
| Speed | 12 |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Front Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimised |
| Front Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Rear Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Seat Post | Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
| Saddle | Giant Romero |
| Chainset | Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M7100-12, 10-51T, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminiuim casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible |
| Motor | Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
| User Interface | Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
