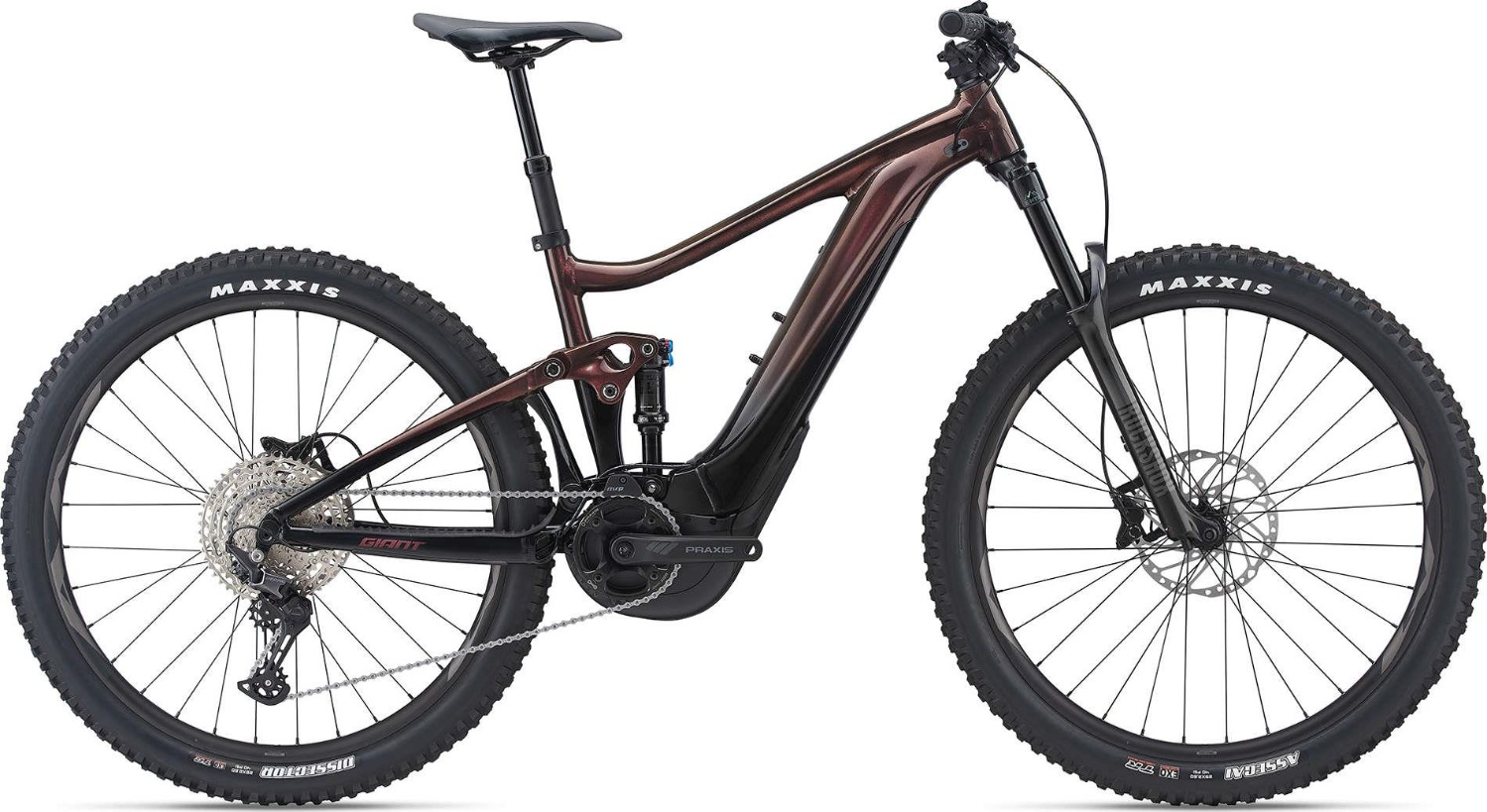

Giant Trance X E+ 3 Pro 29" 2021 - Electric Mountain Bike

£4,699.00
Price Match
or £130.41 / month
Finance Options
Ask a question
Sizing
Select a size
Colour
Add to Basket

Cycle to Work

Product Description

Faster up the climbs, longer loops, more singletrack fun on any given day with the Giant Trance X E+ 3 Pro 29. Give yourself the freedom to extend your trail-riding adventures with this powerful, smooth-riding 29er.

Key Features:

  • ALUXX SL-grade Aluminium frame with fully integrated battery and internal cable routing
  • Fox Float DPS Performance Shock Controls the 140mm of rear-wheel travel
  • RockShox 35 Gold RL DebonAir Fork gives 150mm of plush suspension travel
  • Shimano Deore 12-speed drivetrain for slick shifting
  • Sizes: S, M, L, XL
  • Colours: Chameleon Mars
  • The Giant Trance X E+ 3 Pro 29" 2021 is available with 0% APR finance

Drive Information:

  • Motor: Giant SyncDrive Pro 80Nm
  • Battery: Giant EnergyPak Smart 625Wh
  • Interface: Giant RideControl Ergo
  • Connectivity: Bluetooth & ANT+, Smartphone App



The SyncDrive Pro motor gives the new Trance X E+ Pro 29 a massive 80Nm of torque and 360 per cent tunable support, all controlled by the new Giant E-bike App. This gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedalling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm upfront, and progressive frame geometry that’s designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails. The EnergyPak 625Wh battery is cleanly integrated into the downtube of the lightweight ALUXX SL frame.



KEY PERFORMANCE FACTORS

Smooth, powerful support

SyncDrive Pro motor delivers 80Nm of torque and tunable support ratios up to 360 per cent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.



29er confidence and control

Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.



Adjustable Frame Geometry

Flip-chip lets you change the headtube and seat tube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.8/76.0 head/seat tube angle and 30mm BB drop) for faster, open terrain or high (66.5/76.7 head/seat tube angle and 20mm drop) for slower, tighter singletrack.



How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.



ENERGYPAK 625 / SYNCDRIVE PRO Range

  • Extreme: 32 miles
  • Good: 65 miles
  • Ideal: 111 miles



All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)





Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, 'Boost' 148x12QR, ISS, Giant EnergyPak Plus Range Extender Compatible
Fork:RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised
Rear Shock:Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
Stem:Giant Contact SL 35
Bars:Giant Contact 35 Trail, 35x780mm
Front Brake:Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Rear Brake:Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Lever:Shimano Deore BL-M4100 I-spec EV
Front Mech:MRP 1X custom "V3" co-molded TR chain guide
Rear Mech:Shimano Deore 12-speed
Shifters:Shimano Deore 12-speed I-spec EV
Speed:12
Rims:Giant AM 29", Tubeless ready, 30mm inner width
Front Hub:Shimano MT410 Boost, Center-Lock, 110x15
Rear Hub:Shimano MT410 Boost, Center-Lock, 148x12mm Micro-Spline Drive Body Thru-axle
Spokes:Sapim E-Lite
Front Tyre:Maxxis Assegai 29x2.6" foldable, Tubeless, EXO
Rear Tyre:Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+
Seat Post:Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
Saddle:Giant Romero Trail
Chainset:Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
Chain:KMC e.12 Turbo, EcoProteq, e-bike optimized
Cassette:Shimano CS-M6100-12, 10-51T, 12-speed
Pedals:Resin Platform
Battery (Wh):Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion
Motor:Giant SyncDrive Pro
User Interface:Giant RideControl Ergo

Giant Trance E Sizing & Geometry

Giant Trance E Sizing & Geometry



Inside Leg (Inches) Vs Rider Height (Feet & Inches)

26”

27”

28”

29”

30”

31”

32”

33”

34”

35”

36”

37”

5’ 3”





S

S

S















5’ 4”

S

S

S

S

S















5’ 5”

S

S

S

S

S















5’ 6”



S

S

S

S

S













5’ 7”





S

S

S

M

M











5’ 8”







M

M

M

M

M









5’ 9”







M

M

M

M

M









5’ 10”









M

M

M

M

M







5’ 11”









M

M

M

M

M







6’ 0”











M

M

L

L

L





6’ 1”











L

L

L

L

L





6’ 2”













L

L

L

L

L



6’ 3”













L

L

L

L

L



6’ 4”















L

L

XL

XL

XL





Giant Trance E Geometry



 SMLXL
SEAT TUBE LENGTH (mm) 406 445 482 507
SEAT TUBE ANGLE 74.0° 74.0° 74.0° 74.0°
TOP TUBE LENGTH (mm) 585 610 630 655
HEAD TUBE LENGTH (mm) 95 100 110 130
HEAD TUBE ANGLE 66.5° 66.5° 66.5° 66.5°
FORK RAKE (mm) 46 46 46 46
TRAIL (mm) 109 109 109 109
WHEELBASE (mm) 1184 1210 1231 1259
CHAIN STAY LENGTH (mm) 470 470 470 470
BOTTOM BRACKET DROP (mm) 15 15 15 15
STACK (mm) 579 584 593 611
REACH (mm) 418 442 460 479
STAND OVER HEIGHT (mm) 739 740 772 792
HANDLEBAR WIDTH (mm) 780 780 780 780
STEM LENGTH (mm) 40 50 50 60
CRANK LENGTH (mm) 165 170 170 170
WHEEL SIZE 27.5+ 27.5+ 27.5+ 27.5+















Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview. This electric bike buying guide is here to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs





Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs






Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette
 Shimano LogoSRAM Logo
Professional
11
XTR Di2
12
XX1 AXS Eagle
AXS Eagle

12
X01 AXS Eagle
AXS Eagle

12
XTR
11
XX1

11
X01

11
XT Di2

Enthusiast
12
XT

11
SLX
10
GX

10
Deore
11
NX
Entry
9
Alivio
12
SX Eagle
Eagle

9
Acera
9-10
X9

9
Altus
9-10
X7

7
Tourney
7-10
X5





Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.


Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)

Finance

How do I apply for finance?

Spend £99 or more at Tredz and you can spread the cost. Pay monthly over 6-48 months, interest free (dependent on repayment terms and amount).

1Fill your basket with everything you want from Tredz and go to the checkout.

2During checkout, select the finance option you want as your method of payment.

3You will be sent to our finance provider's secure server to complete your application.

4Finance providers PayPal & V12 will use the information provided to make a decision and complete checkout if you are approved.

Read more about buying on finance

Flexible finance options

Choose your deposit.

Choose your term.

£4,699.00 Your basket + this product

Lowest £0 deposit / 0% interest

£130.53 0% APR

per month

for 36 months

Popular 0% finance

£117.48 0% APR

per month

for 36 months

+ deposit of £469.90
Open Finance Calculator
V12 Representative Example: If total purchase price is £1,399.00 with a deposit of £139.90 (10%) and your selected term is 36 months Classic Credit 15.9% APR Representative (interest rate 8.17% fixed), you would pay £43.55 per month. Total amount of credit will be £1259.10 with a cost of credit of £308.70 after a deposit of £139.90. Total amount payable is £1707.70, subject to terms and status.
PayPal Credit Representative Example: Representative 21.9% APR (variable), Purchase interest rate 21.9% p.a. (variable), Assumed credit limit £1,200.00.

Delivery & Guarantee

UK Delivery Information

International Deliveries – Temporarily Suspended 11/11/20

Note: We are still offering deliveries to the Isle of Man, Scottish Highlands, Scottish Islands, Channel Islands, Isle of Wight, Jersey and Guernsey.

Courier Delivery update: Due to the COVID19 situation, we are currently experiencing some delays with deliveries. Our couriers are working around the clock to get your order to you as soon as possible but there is a potential delay of up to 48 hours . Please check your tracking on track your order here.

Please download the TNT Track and Trace App for iOS here and Android here so you can keep an eye on your delivery and any further updates.

Please note on the TNT tracking app it may show your delivery status as ‘Collecting’ (as per image below). This means your delivery has left our warehouse and is currently held at TNT main depot and there could be up to a 48 hour delay.

tnt delivery

Please keep checking the TNT tracking for further updates. On behalf of TNT we apologise for any delay and inconvenience this may cause.

We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE in the UK, regardless of the size and on all orders over £20.

Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.

Please note that Pre-Order dates can sometimes change due to updated stock information.

Click here for more UK and international delivery information.

Returns & Warranty

It's easy to return a product with our 365 day, hassle free returns.

We will give you a full refund on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).

Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.

If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.

For more information please visit our Returns & Warranty page.

What's In The Box

What's In The Box

As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.

Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

What's in the box
  • Basic setup instructions
  • 16 point quality control checklist
  • Free tredz multitool
  • Free tred pedal spanner
  • Free basic pedals
  • Free drawstring kit bag
  • Free bike insurance voucher

All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.

  • Basic bike setup instructions
  • Free ‘basic’ pedals
  • Free Tredz pedal spanner
  • Free Tredz 9-key trail tool
  • Free Tredz drawstring bag
  • Free 8 weeks insurance voucher
  • 16 point, quality control check sheet

Tredz Service:

Tredz bikes are fully built & set up to ride
Read our bike setup guide.

Free UK delivery, on a date that suits you
We will ring to choose a suitable day. Find out more
  • Tredz bikes are fully checked & tested by Cytech qualified mechanics
  • 0% APR finance available on any basket over £99
  • 365 day 'no hassle' returns
  • Free UK delivery, on a date that suits you

Show finance options for:

Available finance options:

Months / APR Per month

Finance provider options available
