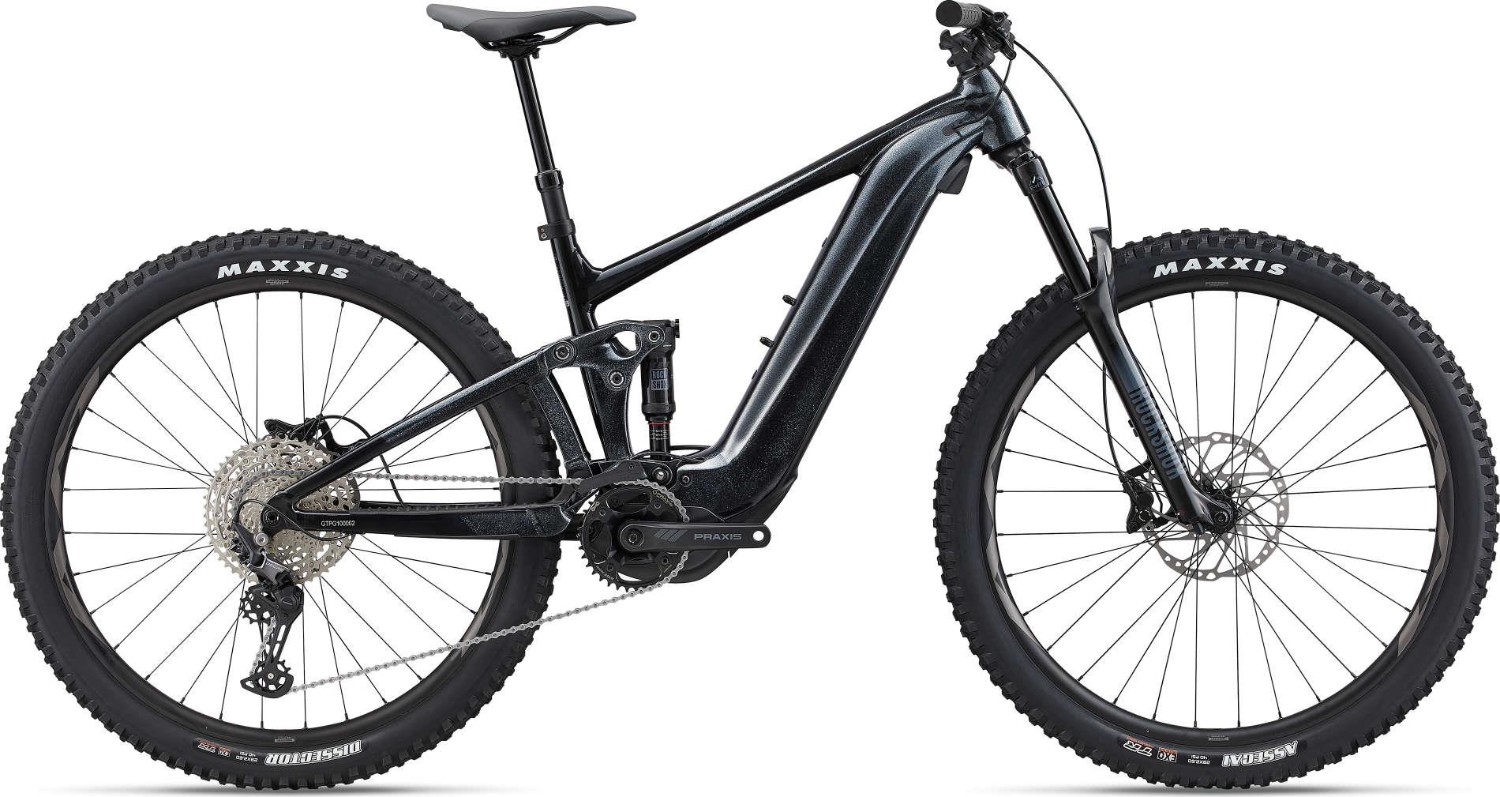

Giant Trance X E+ 3 Pro 29er 2022 - Electric Mountain Bike
Faster up the climbs, longer loops, more singletrack fun on any given day. With the Giant Trance X E+ 3 Pro eMTB free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding mountain e-bike.
Key Features:
- ALUXX SL-Grade Aluminum frame
- RockShox 35 Gold Fork offers 150mm of plush suspension travel
- Rock Shox Deluxe R controls the 140mm of rear wheel travel
- Shimano brakes give you all the stopping you need no matter the weather
- Shimano 12 speed drivetrain for slick shifting
- Sizes: S, M, L, XL
- Colours: Black Diamond
- The Giant Trance X E+ Pro is available with 0% APR finance
Drive Information:
- Motor: SyncDrive Pro powered by Yamaha
- Battery: EnergyPak Smart 625Wh
- Interface: RideControl GO, frame integrated LED display
Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control
Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain
New flip chip feature lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible |
| Fork | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControlTM rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised |
| Rear Shock | Rock Shox Deluxe R, 185x52.5mm Trunnion mount, custom tuned |
| Headset | N/A |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail, 35x780mm |
| Front Brake | Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Shimano Deore BL-M4100, I-spec EV |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore 12-speed, Shadow+ |
| Shifters | Shimano Deore |
| Speed | 12 |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Front Tyre | Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R] |
| Rear Tyre | Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R] |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) |
| Saddle | Giant Romero Trail |
| Chainset | Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170) |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Pedals | Resin Platform Pedals |
| Battery Size (WH) | EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible |
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| User Interface | RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
