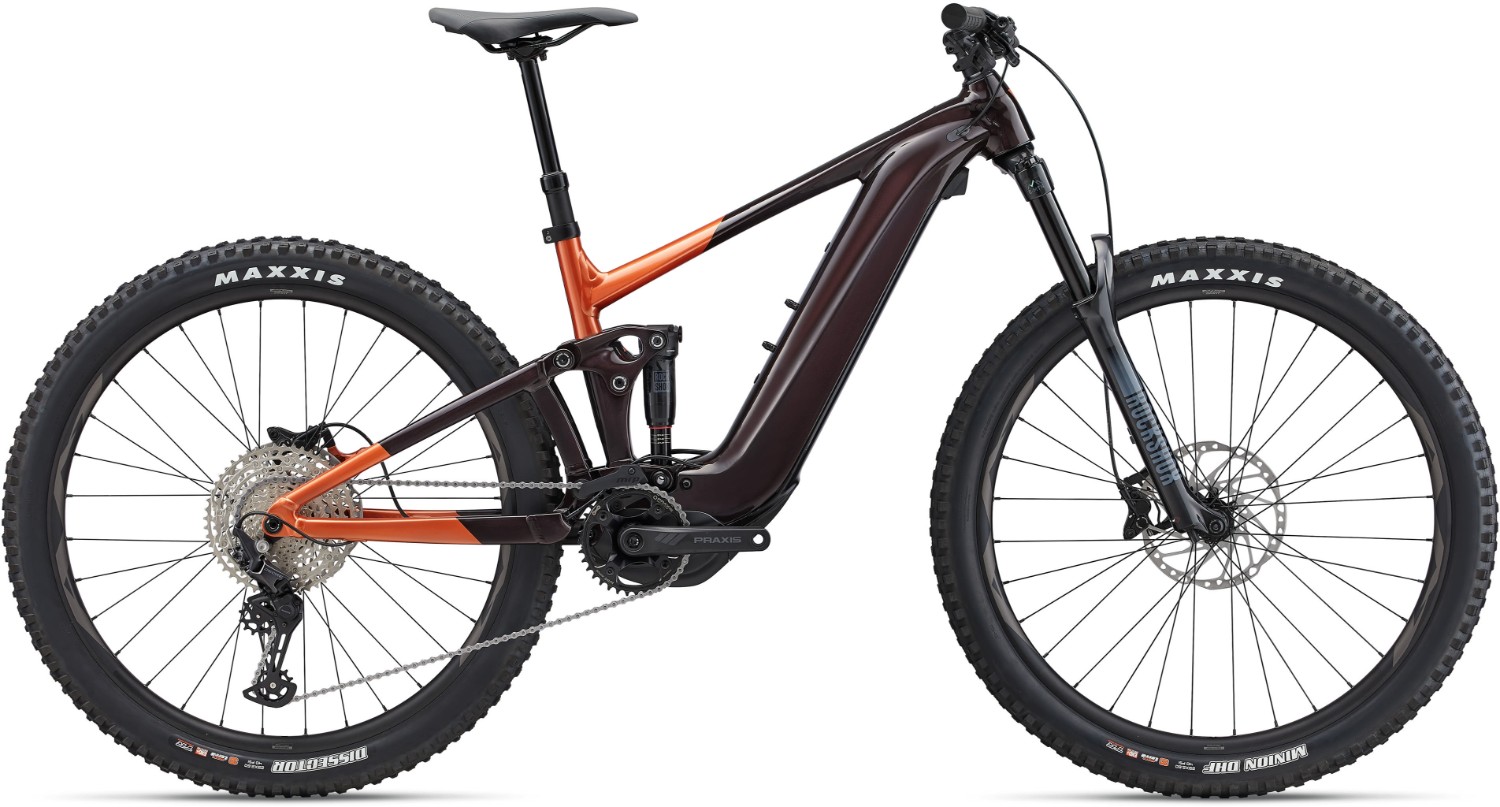

Giant Trance X E+ 3 2024 - Electric Mountain Bike
The Giant Trance X E+ 3 is built for serious trail exploration, blending a powerful SyncDrive Pro motor with Giant's Maestro suspension system for ultimate performance. With 150mm front and 140mm rear travel, flip-chip adjustability, and tubeless-ready wheels, it adapts easily to changing terrains and rider preferences.
Key Features
- Frame: ALUXX SL-grade Aluminium, Maestro suspension, 140mm rear travel
- Fork: RockShox 35 Gold RL, 150mm travel, e-MTB optimised
- Rear Suspension: RockShox Deluxe Select R, 140mm travel, custom-tuned
- Drivetrain: Shimano Deore 1x12, smooth and reliable 12-speed shifting
- Brakes: Shimano BR-M420 hydraulic disc, 203mm rotors for strong stopping power
- Wheels: Giant AM 29", tubeless-ready, 30mm inner width
- Trail Adaptability: Flip chip allows geometry adjustment to suit terrain
- Finance Option: Available with 0% APR finance
Drive Information
- Motor: Giant SyncDrive Pro2, 85Nm torque
- Battery: Giant EnergyPak 750Wh, with optional 250Wh range extender
- User Interface: Giant RideControl GO, LED console with optional ANT+ display
Designed for adventure, the Trance X E+ 3 pairs a powerful SyncDrive Pro motor, offering up to 400% tunable support, with Smart Assist for a smooth, responsive boost exactly when you need it. Its Maestro suspension, tailored for 29” wheels, delivers balance and stability across challenging terrain, while the RockShox fork and shock provide a plush yet controlled ride over technical features. With adjustable geometry via the flip chip, you can tune the bike’s handling to your preference—aggressive or stable. This e-MTB’s 750Wh battery ensures ample range for long rides, and the option to add a 250Wh range extender means the adventure doesn’t have to stop.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible |
| Fork | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControlTM rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised |
| Rear Shock | Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail, 35x780mm |
| Front Brake | Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Shimano Deore, I-spec EV |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore, 12-speed |
| Shifters | Shimano Deore 1x12 |
| Speed | 12 |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Front Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimised |
| Front Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Rear Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (S:125mm, M:150mm, L/XL:170mm) |
| Saddle | Giant Romero |
| Chainset | Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Giant EnergyPak 750Wh, Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible |
| Motor | Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
| User Interface | Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
