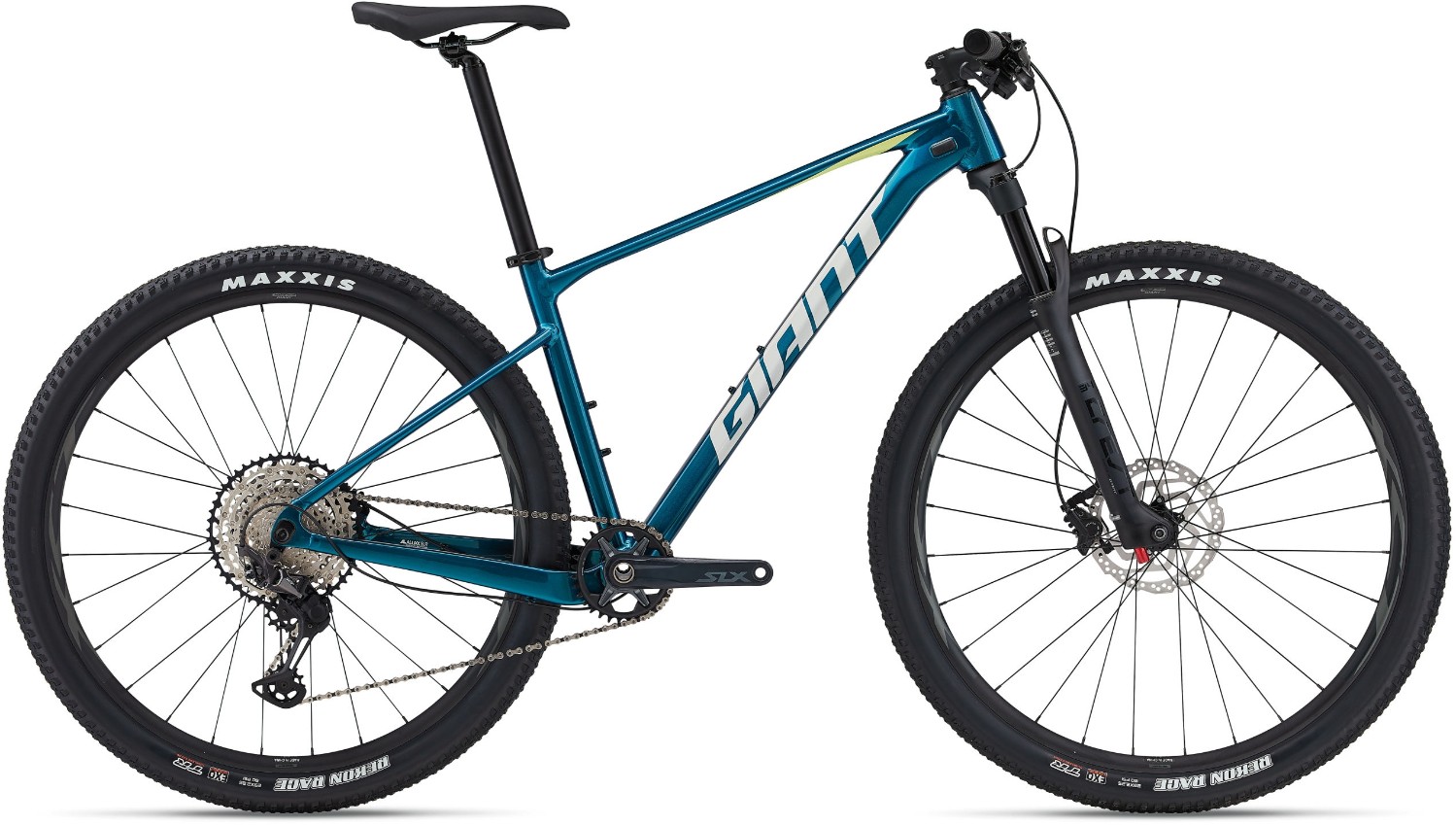

Giant XTC SLR 29 1 Mountain Bike 2024 - Hardtail MTB
The Giant XTC SLR 29 1 with its lightweight Aluxx SLR-grade aluminium frame ensures swift climbs and agile handling. With a Giant Crest 34 RRL fork providing 100mm of travel and remote lockout, this bike excels on technical terrain while maintaining control and stability.
Key Features:
- Frame: Aluxx SLR-grade aluminium, crafted for optimal stiffness and agility
- Front Suspension: Giant Crest 34 RRL fork with 100mm travel and remote lockout
- Drivetrain: Shimano SLX 1x12 speed for precise shifting and efficient power transfer
- Brakes: Shimano BR-MT500 hydraulic disc brakes for reliable stopping power in any conditions
- Wheels: Giant XCT 29 rims with 25mm inner width, paired with Maxxis Recon Race 29x2.25 tires for traction and control
- Confidence and Control: 29-inch wheels provide balance and stability over rough terrain, boosting confidence on climbs and descents
- Finance Options: Available with 0% APR finance for convenient purchasing
Paired with the confidence-inspiring 29-inch wheels, this bike offers the perfect blend of agility and stability, allowing riders to tackle technical climbs with ease and fly through fast descents with confidence.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SLR-Grade Aluminium |
| Fork | Giant Crest 34 RRL, 100mm, 15x110, remote lockout |
| Stem | Giant Contact |
| Bars | Giant Connect XC, 740x31.8mm |
| Front Brake | Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
| Rear Brake | Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
| Brake Lever | Shimano BR-MT501 |
| Rear Mech | Shimano Deore XT M-8100 |
| Shifters | Shimano SLX M-7100, 1x12 |
| Speed | 12 |
| Rims | Giant XCT 29, 25mm inner width |
| Front Hub | Shimano C500, sealed |
| Rear Hub | Shimano C500, sealed |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless |
| Rear Tyre | Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless |
| Seat Post | Giant Connect, 30.9mm S:375mm, M:375mm, L:400mm, XL:400mm |
| Saddle | Giant Sport |
| Chainset | Shimano SLX, 32t |
| Bottom Bracket | Shimano, press fit |
| Chain | KMC X-12 |
| Cassette | Shimano SLX, 10x51 |
| Pedals | Resin Platform |
Giant XTC Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 7” |
|
|
|
|
M |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant XTC Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 431 | 475 | 525 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 614 | 635 | 665 |
| HEAD TUBE LENGTH (mm) | 95 | 105 | 115 |
| HEAD TUBE ANGLE | 69.5° | 70.0° | 70.0° |
| FORK RAKE (mm) | 43 | 43 | 43 |
| TRAIL (mm) | 94.9 | 94.9 | 94.9 |
| WHEELBASE (mm) | 1106 | 1128 | 1159 |
| CHAIN STAY LENGTH (mm) | 425 | 425 | 425 |
| BOTTOM BRACKET DROP (mm) | 58 | 58 | 58 |
| STACK (mm) | 604 | 613 | 632 |
| REACH (mm) | 435 | 435 | 477 |
| STAND OVER HEIGHT (mm) | 764 | 791 | 829 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 70 | 80 | 90 |
| CRANK LENGTH (mm) | 175 | 175 | 175 |
| WHEEL SIZE | 29" | 29" | 29" |
