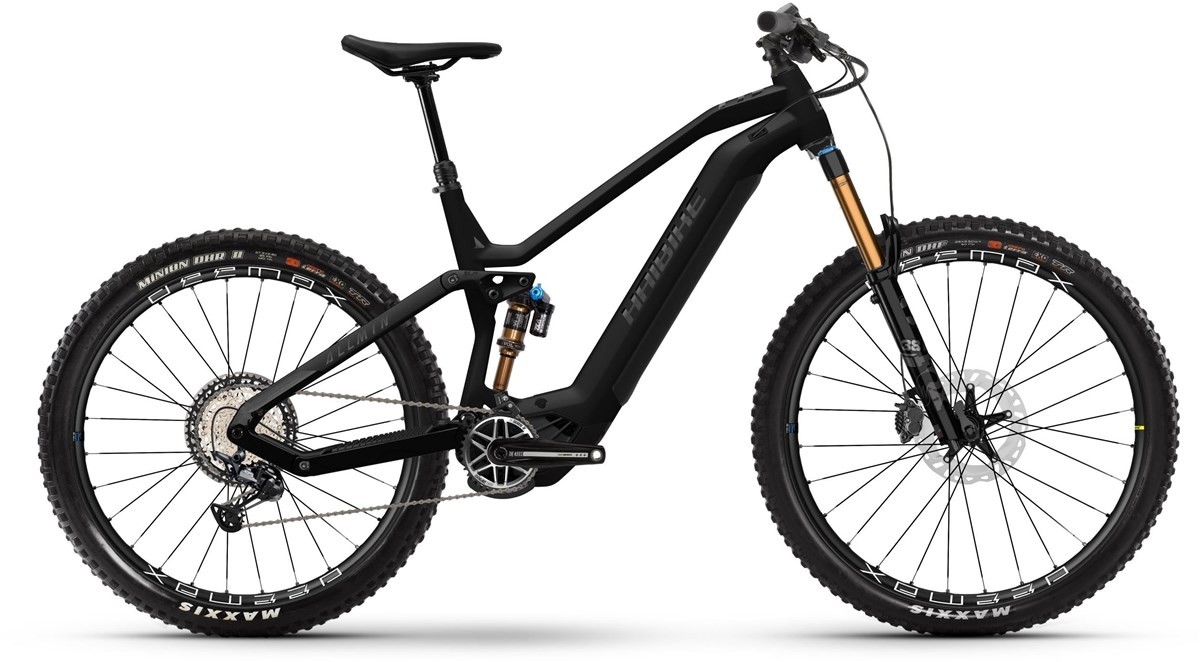

Haibike AllMtn 10 - Nearly New - M 2023 - Electric Mountain Bike
This AllMtn 10 - Nearly New - M electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the grips and front rim.
With our new AllMtn 10, no mountain is too high and no descent too difficult. The 29" front tyre offers precision and comfortable rollover downhill, while the 27.5" rear tyre gives the new lighter and even more powerful Yamaha PW-X3 motor the perfect traction to conquer even the steepest climbs. With 720Wh battery power, you have enough reserves for even extensive tours, that you can also increase by 360 Wh with the optional Range Extender. Fine parts such as the 160 mm FOX 38 Factory Kashima air suspension fork and Shimano Deore XT gear and brake components ensure smooth riding pleasure, even when the ground gets a little less comfortable.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | FOX 38 Factory Kashima, air, Travel: 160mm |
| Rear Shock | FOX Float X Factory EVOL LV, air |
| Headset | Acros BlockLock |
| Stem | Haibike Components TheStem +++, Bar bore: 31.8mm |
| Bars | Haibike Components TheBar +++ 780mm |
| Front Brake | Shimano Deore XT M8120, 203mm |
| Rear Brake | Shimano Deore XT M8120, 203mm |
| Brake Lever | Shimano Deore XT M8100, aluminium |
| Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
| Shifters | Shimano Deore XT M8100, trigger switch |
| Speed | 12 |
| Rims | Mavic E-Deemax Wheelset |
| Front Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584 |
| Rear Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584 |
| Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
| Saddle | fi'zi:k Terra Aidon X5-160 |
| Chainset | Haibike Components, The Crank ++, Aluminium, Haibike Components, Aluminium, 36 teeth |
| Bottom Bracket | UIntegrated |
| Chain | Shimano SLX M7100 |
| Cassette | Shimano M6100, 10-51 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Motor | Yamaha PW-X3, 250W, 85Nm, 25km/h |
| User Interface | Yamaha Interface - X |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
