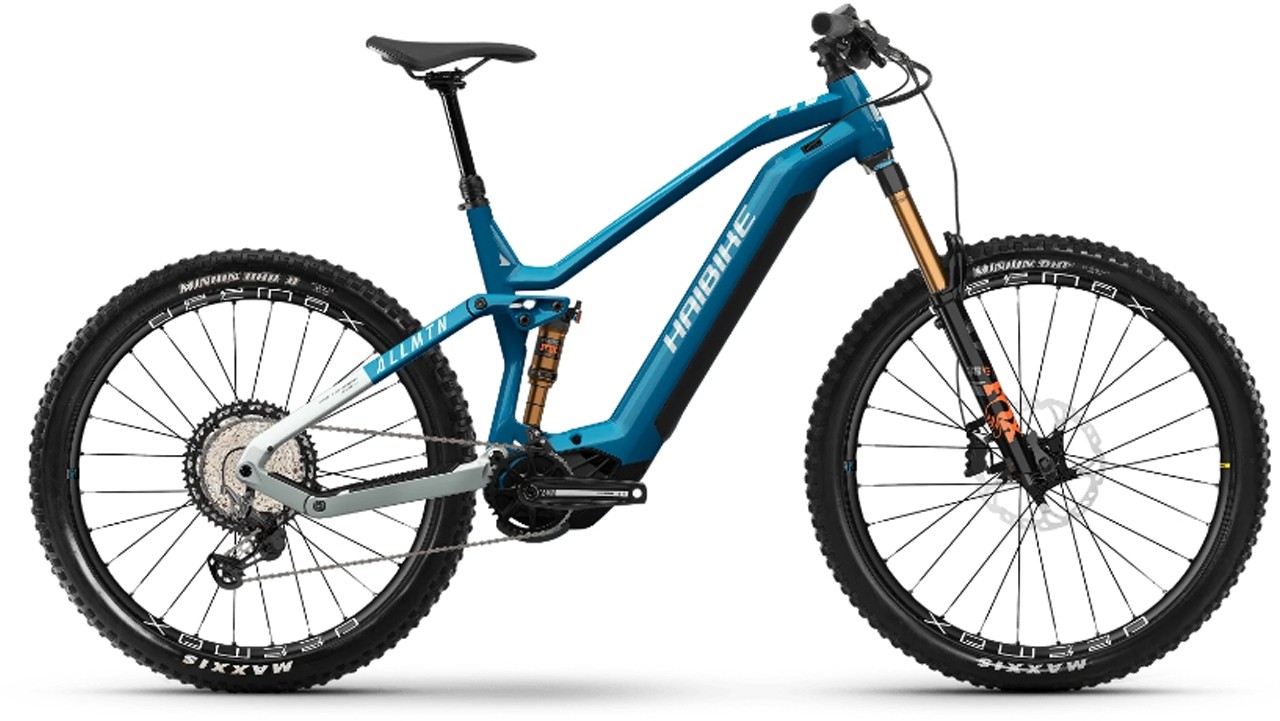

Haibike AllMtn 10 2024 - Electric Mountain Bike
The Haibike AllMtn 10 is an epitome of conquering mountains effortlessly. The full Aluminium frame, paired with the Yamaha PW-X3 85Nm motor and Intube 720Wh battery, ensures relentless power on every ascent. With a FOX 38 Factory Kashima 160mm fork, FOX Float X Factory EVOL LV rear shock, and Mavic E-Deemax wheelset, this e-bike combines strength and agility. Shimano Deore XT M8100 components, including brakes and drivetrain, deliver precision and reliability.
Key Features:
- Frame: Aluminium, 160mm travel, 148mm thru-axle
- Front Suspension: FOX 38 Factory Kashima, 160mm travel
- Rear Suspension: FOX Float X Factory EVOL LV, air
- Drivetrain: Shimano Deore XT M8100, 12-speed
- Brakes: Shimano Deore XT M8120, 203mm
- Wheels: Mavic E-Deemax
- Standout Feature: Yamaha PW-X3 85Nm motor and 0% APR finance availability
Drive Information:
- Motor: Yamaha PW-X3, 250W, 85Nm, 25km/h
- Battery: Intube 720Wh
- User Interface: Yamaha Interface-X with 1.7" LCD 7-function display and remote switch.
Whether ascending or descending, this e-bike, with its cutting-edge components, guarantees an exhilarating trail experience.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, through axle M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | FOX 38 Factory Kashima, air, Travel: 160mm |
| Rear Shock | FOX Float X Factory EVOL LV, air |
| Headset | Acros BlockLock |
| Stem | Haibike Components TheStem +++ |
| Bars | Haibike Components TheBar +++ 780mm |
| Front Brake | Shimano Deore XT M8120, 203mm |
| Rear Brake | Shimano Deore XT M8120, 203mm |
| Brake Lever | Shimano Deore XT M8100, aluminium |
| Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
| Shifters | Shimano Deore XT M8100, trigger switch |
| Speed | 12 |
| Rims | Mavic E-Deemax |
| Front Hub | Mavic E-Deemax |
| Rear Hub | Mavic E-Deemax |
| Front Tyre | Maxxis Minion DHF, 65-622 |
| Rear Tyre | Maxxis Minion DHR II, 66-584 |
| Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
| Saddle | fi'zi:k Terra Aidon X5-160 |
| Chainset | aluminium, Haibike Components, 36 |
| Bottom Bracket | Integrated |
| Chain | Shimano SLX M7100 |
| Cassette | Shimano M6100, 10-51 teeth |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | InTube 720 |
| Motor | Yamaha PW-X3, 250W, 85Nm, 25km/h |
| User Interface | Yamaha Interface - X |
Haibike AllMtn Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 44cm |
170 – 175 |
5’3” – 5’9” |
|
L / 47cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 49cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
