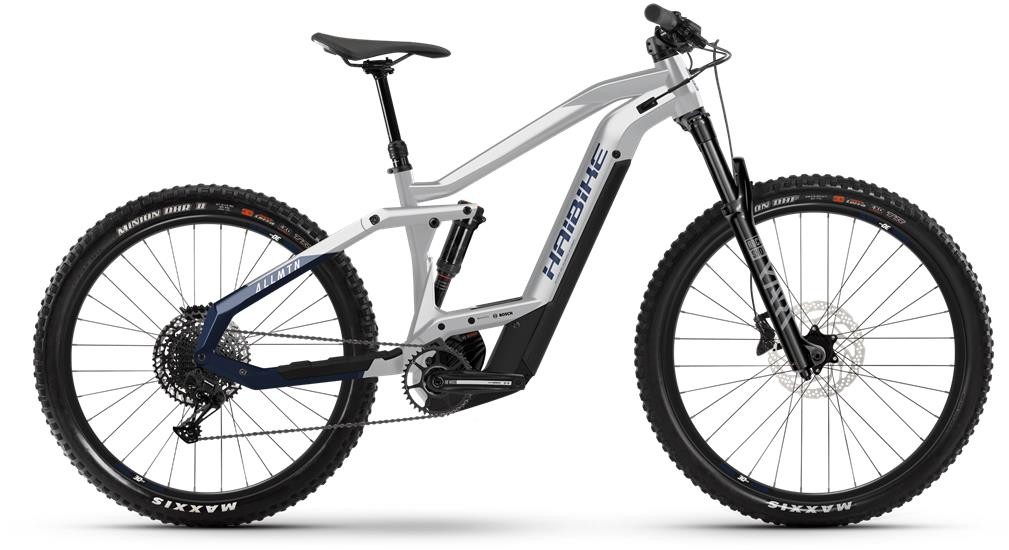

Haibike AllMtn 3 2021 - Electric Mountain Bike
- Drive unit - Bosch Performance CX GEN4, 85Nm, 25km/h
- Battery - Bosch PowerTube 625Wh
- Fork - RockShox Yari RC, Travel: 160mm
- Mixed wheel sizes - 27.5" / 29"
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium 6061, Integrated Motor, SkidPlate, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | RockShox Yari RC, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | A-Head Tapered |
| Stem | Haibike Components TheStem 2, A-head, Bar bore: 31.8mm |
| Bars | Haibike Components TheBar +++ Gravity 780mm |
| Front Brake | Shimano MT420, aluminium, 203mm |
| Rear Brake | Shimano MT420, aluminium, 203mm |
| Brake Lever | Shimano MT401, aluminium |
| Front Mech | N/A |
| Rear Mech | SRAM SX Eagle, 12-speed |
| Shifters | Sram SX Eagle, trigger switch |
| Speed | 12 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Front Tyre | Maxxis Minion DHF II, 65-622 / Maxxis Minion DHR II, 71-584 |
| Rear Tyre | Maxxis Minion DHF II, 65-622 / Maxxis Minion DHR II, 71-584 |
| Seat Post | Haibike Components TheSeatpost ++, 31.6mm, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | SRAM SX Eagle |
| Bottom Bracket | Integrated in the motor |
| Chain | SRAM SX Eagle |
| Cassette | SRAM Eagle PG1210 (11-50T) |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 625Wh |
| Motor | Bosch Performance CX GEN4, 250W, 85Nm, 25km/h |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
