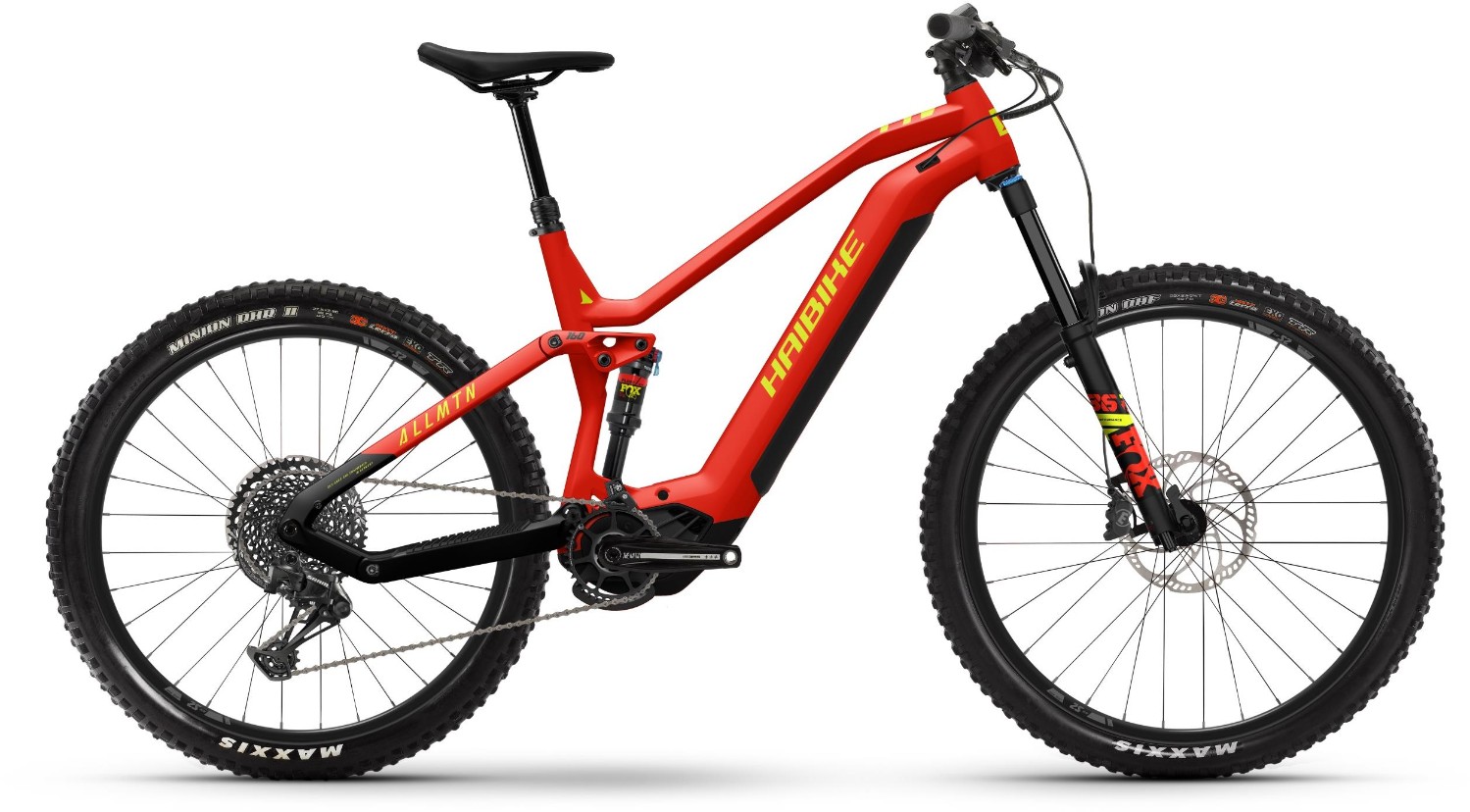

Haibike AllMtn 7 2023 - Electric Mountain Bike
Key Features:
- FORK: FOX 36 Float Performance, Travel: 160mm
- BATTERY: InTube 720 Wh
- DRIVE UNIT: Yamaha PW-X3, 85Nm, 25km/h
- MIXED WHEEL SIZES: 27.5" / 29"
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm |
Fork | FOX 36 Float Performance Luft 160 Lockout, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
Rear Shock | FOX Float DPS Performance EVOL LV Trunnion, air |
Headset | Acros BlockLock |
Stem | Haibike Components TheStem +++, Bar bore: 31.8mm |
Bars | Haibike Components TheBar +++ 780mm |
Front Brake | Magura MT7, 203mm |
Rear Brake | Magura MT7, 203mm |
Brake Lever | Magura MT7 HC-lever, aluminium |
Rear Mech | SRAM GX Eagle, 12-speed |
Shifters | Sram GX Eagle, trigger switch |
Speed | 12 |
Rims | WTB ST i30 TCS, double-walled rim |
Front Hub | Haibike Components The Hub ++ Steckachse 15x110mm |
Rear Hub | Haibike Components TheHub ++ Steckachse 12x148 |
Spokes | Sapim Race, black |
Front Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584 |
Rear Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584 |
Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
Saddle | fi'zi:k Terra Aidon X5-160 |
Chainset | Haibike Components, The Crank ++, Aluminium, Sram, 38 teeth |
Bottom Bracket | Integrated |
Chain | SRAM SX Eagle |
Cassette | Sram Eagle PG1230, 11-50 teeth |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | Intube PW X3 720 |
Motor | Yamaha PW-X3, 250W, 85Nm, 25km/h |
User Interface | Yamaha Interface - X |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike AllMtn 7 2023 - Electric Mountain Bike.
This product is no longer available.
