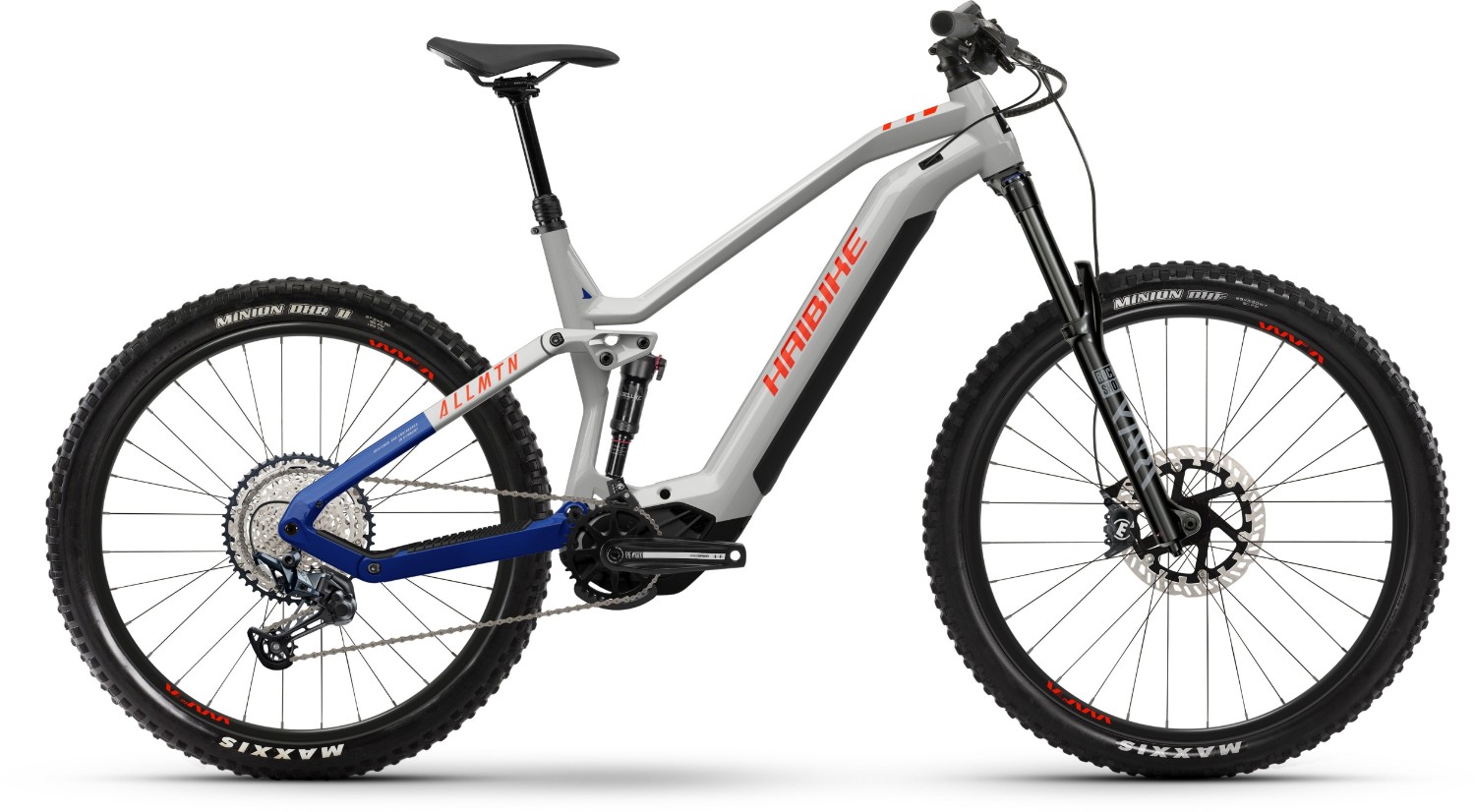

Haibike AllMtn 7 2024 - Electric Mountain Bike
The Haibike AllMtn 7 is a full-suspension electric mountain bike designed to balance climbing efficiency with downhill stability. Its aluminium frame is designed for durability and stiffness, with 160mm of rear travel delivered by a RockShox Deluxe Select Plus shock. At the front, the RockShox Yari RC fork offers another 160mm of suspension, keeping the bike composed over rocky trails and steep descents.
Key Features:
- Aluminium frame, 160mm travel, trail-focused geometry
- RockShox Yari RC fork, 160mm travel
- RockShox Deluxe Select Plus rear shock, 160mm travel
- Shimano SLX M7100 drivetrain, 12-speed
- Magura MT5 4-piston hydraulic disc brakes
- 29” front / 27.5” rear WTB rims with Maxxis Minion tyres
- Dropper post for adjustable saddle height
- Available with 0% APR finance
Drive Information:
- Motor: Yamaha PW-X3, 85Nm torque
- Battery: InTube 720Wh
- User Interface: Yamaha Interface-X display with remote
Power comes from the Yamaha PW-X3 motor, delivering up to 85Nm of torque for confident climbing and responsive assistance. Paired with the 720Wh InTube battery, you can expect extended range for long days in the mountains. The system is controlled via the Yamaha Interface-X display and remote, keeping the cockpit uncluttered while still providing key ride data.
Haibike has equipped the AllMtn 7 with a mullet wheel setup with a 29” front wheel for stability and rollover confidence, and a 27.5” rear wheel for agility. The WTB tubeless-ready rims are fitted with aggressive Maxxis Minion DHF and DHR II tyres, ensuring dependable traction on technical terrain.
A Shimano SLX 12-speed drivetrain offers smooth and precise shifting, while Magura MT5 four-piston brakes with 203mm rotors provide consistent stopping power, even on long descents. Finishing touches include a dropper seatpost for quick saddle adjustment, wide 780mm handlebars for confident handling, and a Selle Royal Vivo saddle for comfort on longer rides.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, through axle M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | RockShox Yari RC, air, Travel: 160mm, aluminum shaft 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | Acros BlockLock |
| Stem | Haibike Components TheStem +++ |
| Bars | Haibike Components TheBar +++ 780mm |
| Front Brake | Magura MT5, 203mm |
| Rear Brake | Magura MT5, 203mm |
| Brake Lever | Magura MT5 HC-lever, aluminium |
| Rear Mech | Shimano SLX M7100, 12-speed |
| Shifters | Shimano Deore SLX M7100 |
| Speed | 12 |
| Rims | WTB ST i30 TCS, double-walled rim / WTB ST i35 TCS, double-walled rim |
| Front Hub | Haibike Components The Hub ++ through axle 15x110mm |
| Rear Hub | Haibike Components TheHub ++ |
| Spokes | Sapim Race |
| Front Tyre | Maxxis Minion DHF, 65-622 |
| Rear Tyre | Maxxis Minion DHR II, 66-584 |
| Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | aluminium, Haibike Components, 36 |
| Bottom Bracket | Integrated |
| Chain | Shimano M6100 |
| Cassette | Shimano M6100, 10-51 teeth |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | InTube 720 |
| Motor | Yamaha PW-X3, 250W, 85Nm, 25km/h |
| User Interface | Yamaha Interface - X |
Haibike AllMtn Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 44cm |
170 – 175 |
5’3” – 5’9” |
|
L / 47cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 49cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
