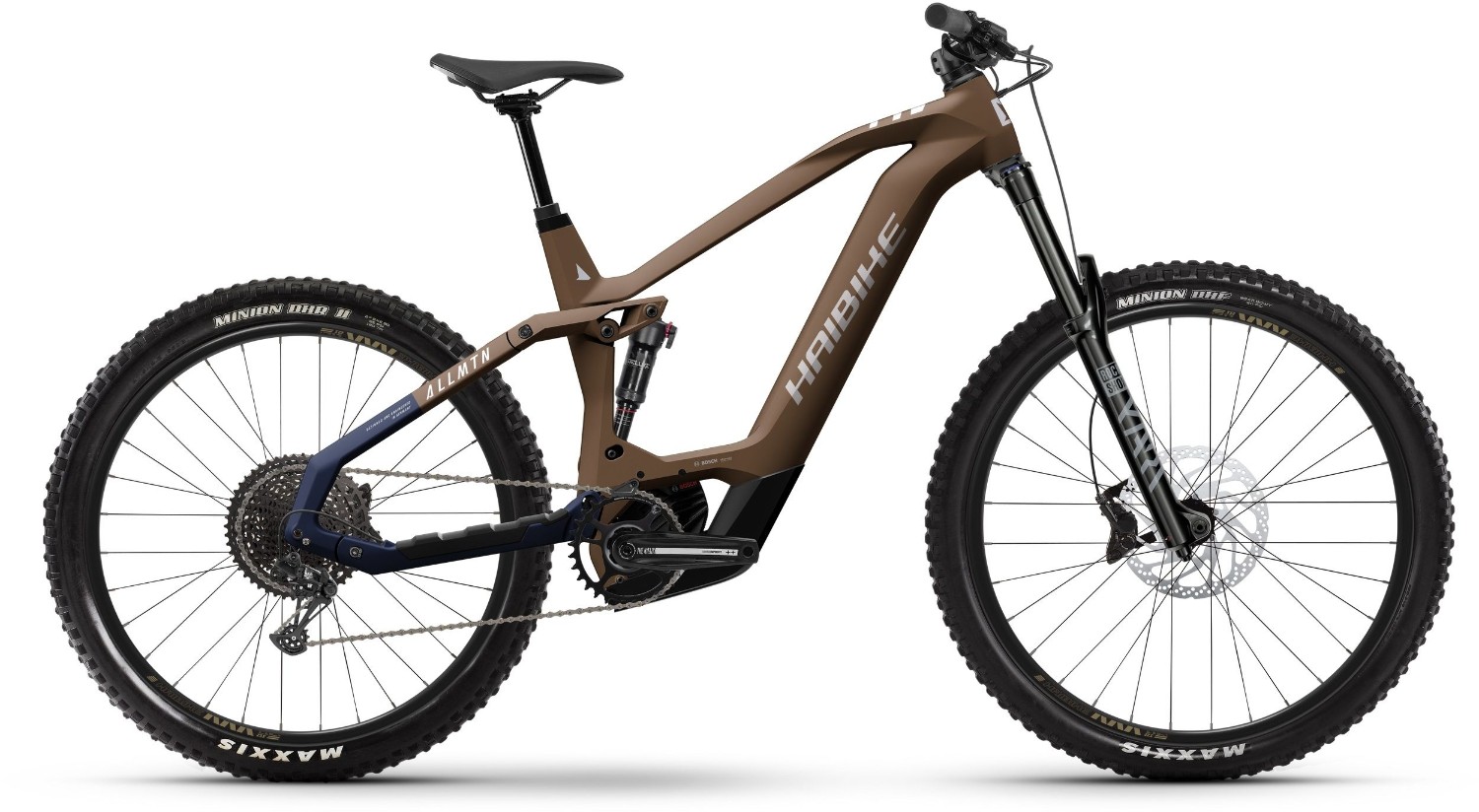

Haibike AllMtn CF 8 2024 - Electric Mountain Bike
The Haibike AllMtn CF 8 combines a lightweight frame with 160mm suspension travel offering superior handling and power.
Key Features:
- Frame: Carbon/aluminium, 150mm travel, post mount disc brake
- Front Suspension: RockShox Yari RC, 160mm travel
- Rear Suspension: RockShox Deluxe Select Plus, air shock
- Drivetrain: SRAM NX Eagle, 12-speed
- Brakes: Magura MT5 hydraulic disc brakes, 203mm rotors
- Wheels: Rodi Tryp 30 and 35, double-walled aluminium rims
- Tyres: Maxxis Minion DHF (front), Maxxis Minion DHR II (rear)
- Other Standout Feature: Dropper post with remote control
- Finance: Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance CX Smart System, 85Nm torque
- Battery: Bosch PowerTube 750Wh
- User Interface: Bosch Kiox 300 + LED remote
The Haibike AllMtn CF 8 is designed to cater to every rider, offering a balance of power and control for both uphill and downhill adventures. The carbon and aluminium frame ensures strength and durability while maintaining a lightweight profile. With 150mm of rear travel and a RockShox Yari RC fork providing 160mm of front travel, this bike handles rough terrains and steep descents with ease.
The Bosch Performance CX Smart System motor delivers 85Nm of torque, providing robust support for challenging climbs. Paired with the Bosch PowerTube 750Wh battery, riders can enjoy extended adventures with a reliable power source. The Bosch Kiox 300 display and LED remote offer intuitive control and easy access to ride data.
Equipped with SRAM NX Eagle 12-speed gearing, the AllMtn CF 8 ensures smooth and precise shifting across a wide range of terrains. The Magura MT5 hydraulic disc brakes offer exceptional stopping power, giving riders confidence on steep descents and technical trails. The bike’s Rodi Tryp 30 and 35 double-walled rims, coupled with Maxxis Minion tyres, provide excellent grip and durability.
The dropper post with remote control adds convenience and enhances riding comfort, allowing for quick adjustments on the go.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon/Aluminum, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm |
| Fork | RockShox Yari RC, air, Travel: 160mm, aluminum shaft 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | Acros Cable integration |
| Stem | Alu, A-head, Bar bore: 31.8mm |
| Bars | Haibike Components TheBar ++ 780mm |
| Front Brake | Magura MT5, 203mm |
| Rear Brake | Magura MT5, 203mm |
| Brake Lever | Magura MT5 HC-lever, aluminium |
| Rear Mech | SRAM NX Eagle, 12-speed |
| Shifters | Sram SX Eagle, trigger switch |
| Speed | 12 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium / Rodi Tryp 35, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader |
| Front Tyre | Maxxis Minion DHF, 65-622 |
| Rear Tyre | Maxxis Minion DHR II, 66-584 |
| Seat Post | Dropper-Post Remote, telescope, 31.6mm, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | aluminium, Sram X-Sync II, 36 |
| Bottom Bracket | Integrated |
| Chain | SRAM SX Eagle |
| Cassette | Sram PG1210, 11-50 teeth |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 750 |
| Motor | Bosch Performance CX Smart System, 250W, 85Nm, 25km/h |
| User Interface | Bosch Kiox 300 + LED Remote |
Haibike AllMtn Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 44cm |
170 – 175 |
5’3” – 5’9” |
|
L / 47cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 49cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
