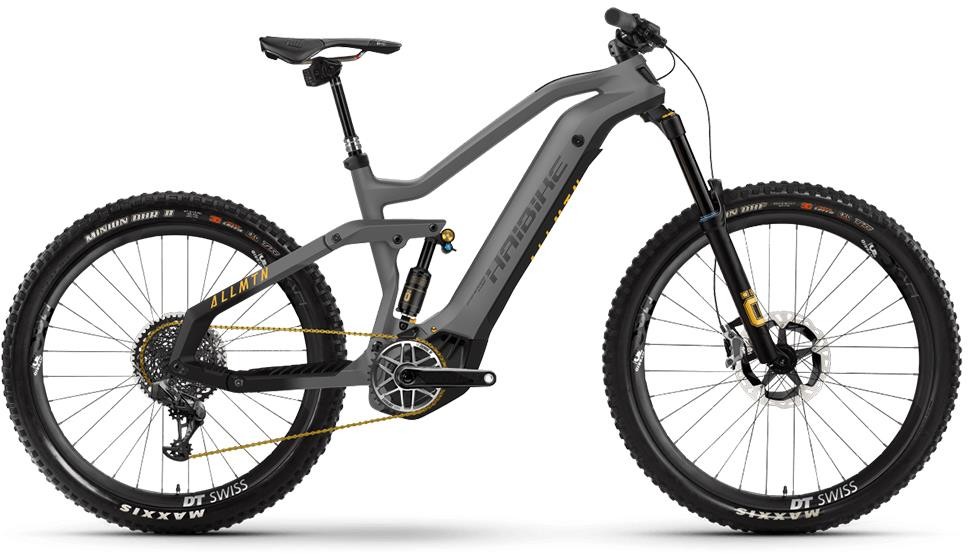

Haibike AllMtn SE 2021 - Electric Mountain Bike
- Frame Material - Carbon
- Drive Unit - Yamaha PW-X2, 250W, 80Nm, 25km/h
- Battery - Yamaha InTube 600Wh
- Fork - Öhlins RXF36, air, 160mm
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | carbon, SkidPlate, Integrated Motor, UD-Carbon Frame, FullCarbon Interface, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm |
| Fork | Öhlins RXF36, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | Öhlins TTX Air Extended, air |
| Headset | Acros BlockLock |
| Stem | Haibike Components TheStem 2, A-head, Bar bore: 31.8mm |
| Bars | Raceface Six C Carbon 785mm |
| Front Brake | Shimano XTR M9120, 203mm |
| Rear Brake | Shimano XTR M9120, 203mm |
| Brake Lever | Shimano XTR M9120, adjustable grip width, aluminium |
| Front Mech | N/A |
| Rear Mech | Sram XX1 Eagle AXS, 12-speed |
| Shifters | Sram Eagle XX1 AXS, trigger switch |
| Speed | 12 |
| Front Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 71-584 |
| Rear Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 71-584 |
| Seat Post | Sram Reverb AXS, telescope, 31.6mm, aluminium |
| Saddle | Prologo Proxim W450 |
| Chainset | Sram XX1 Eagle Gold |
| Chain | Sram XX1 Eagle Gold |
| Cassette | SRAM Eagle PG1295 (10-52T) |
| Battery Size (WH) | Yamaha InTube 600Wh |
| Motor | Yamaha PW-X2, 250W, 80Nm, 25km/h |
| User Interface | Yamaha Side Switch |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
