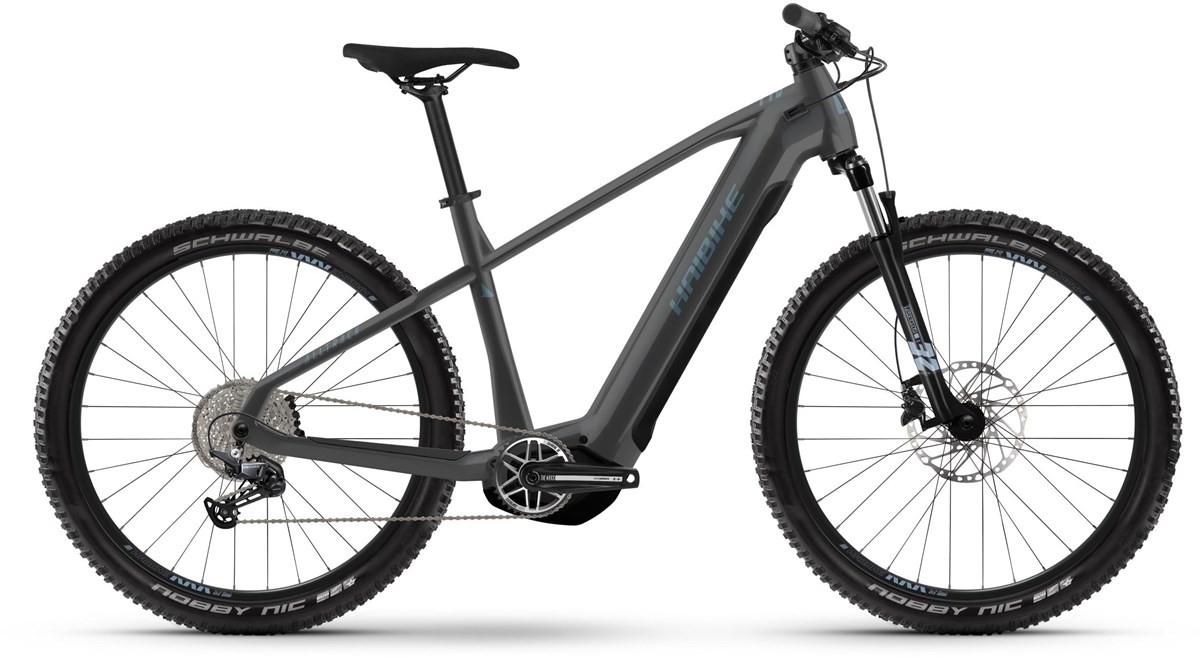

Haibike AllTrack 5 27.5 - Nearly New - M 2023 - Electric Mountain Bike
This AllTrack 5 27.5 - Nearly New - M electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the seat stay, chainstay/dropout and chainstay.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Asphalt or off-road? With the Haibike ALLTRACK 5 you don't have to choose! This hardtail eMTB is your ideal companion for on, and off-road, adventures. The SR Suntour suspension fork with 120 mm travel and the hydraulic disc brakes from Shimano ensure safety and comfort even on rough terrain. The new Yamaha PW-S2 motor with 75 Nm of torque and 720 Wh battery supports you on steep climbs and the reliable Shimano Deore 10-speed rear derailleur ensures smooth riding fun. The ALLTRACK 5 is available in frame sizes S and M with 27.5" wheels and sizes M to XL with 29" wheels.
Key features:
- Haibike Aluminium frame
- SR Suntour XCM32 Boost fork with 120mm of bump soaking travel
- Shimano 1x9 gears give smooth and consistent shifting
- Shimano brakes offer all-weather stopping power
Drive Information:
- Motor: Yamaha, PW-S2, 250W, 75 Nm
- Battery: Intube, PW S2 720Wh
- InterfaceSide Switch
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
| Fork | SR Suntour XCM32 Boost DS, steel spring/oil, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Headset | A-Head Tapered |
| Stem | XLC A-Head, A-head, Bar bore: 31.8mm |
| Bars | XLC 720mm |
| Front Brake | Shimano MT200, aluminium, 180mm |
| Rear Brake | Shimano MT200, aluminium, 180mm |
| Brake Lever | Shimano MT201, aluminium |
| Rear Mech | Shimano Deore M4120, 10-speed |
| Shifters | Shimano Deore M4100, trigger switch |
| Speed | 9 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Front Tyre | Schwalbe, Nobby Nic Performance, 65-584, 27.5" x 2.6" |
| Rear Tyre | Schwalbe, Nobby Nic Performance, 65-584, 27.5" x 2.6" |
| Seat Post | patent, 34.9mm, aluminium |
| Saddle | XLC MTB |
| Chainset | steel, 38T |
| Bottom Bracket | Integrated |
| Chain | KMC E10S |
| Cassette | Shimano M4100, 11-46 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Intube, PW S2 720Wh |
| Motor | Yamaha, PW-S2, 250W, 75 Nm |
| User Interface | Side Switch |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
