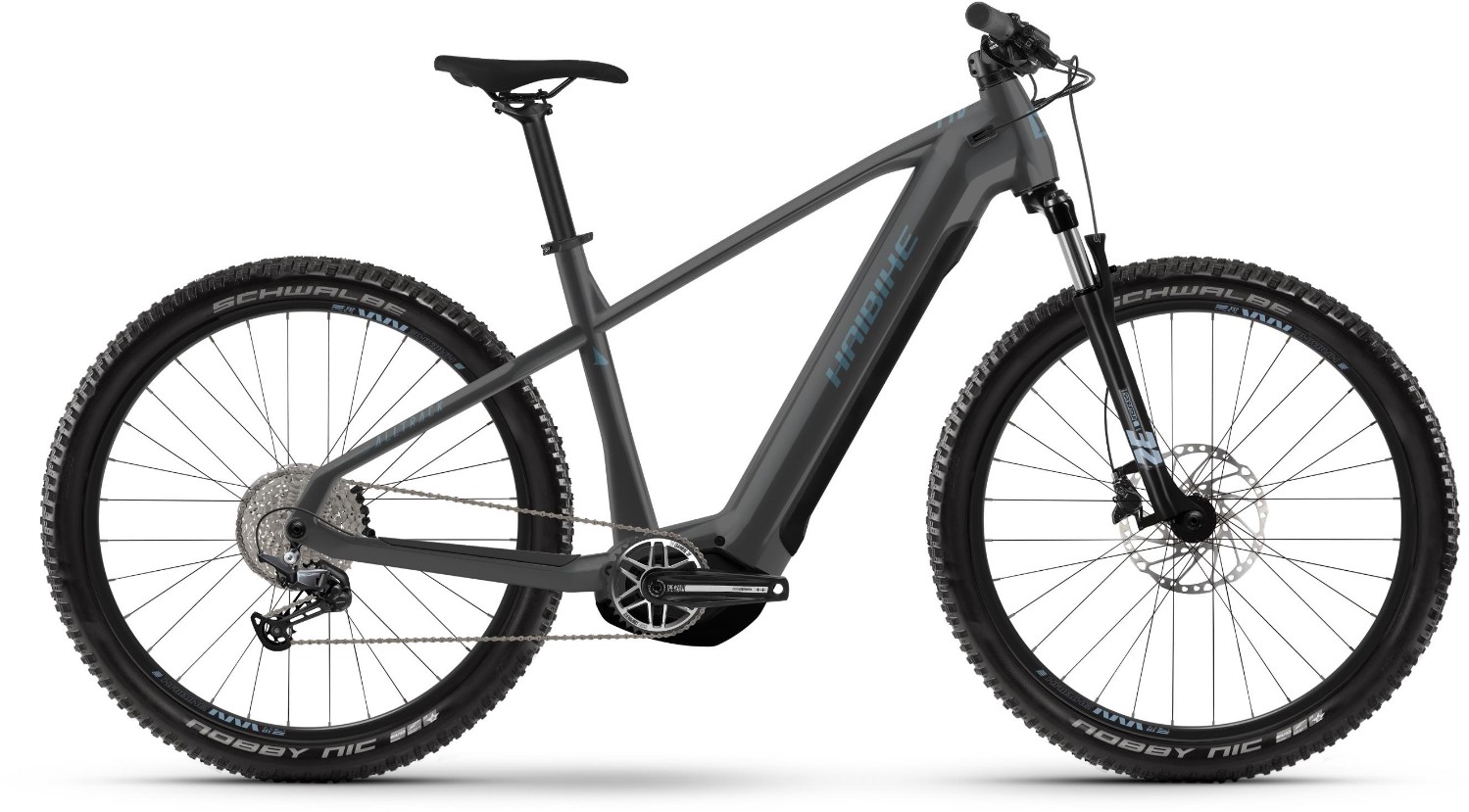

Haibike AllTrack 5 29" 2025 - Electric Mountain Bike
The Haibike AllTrack 5 29 is built for riders who want the freedom to explore both paved paths and challenging trails. Its aluminium frame offers a balance of strength and lightness, designed with a modern geometry that ensures stability and control on varied terrain. The SR Suntour XCM32 Boost DS fork with 120mm of travel smooths out bumps and rocks, making your ride more comfortable and enjoyable.
Key Features:
- Frame: Aluminium frame with modern geometry for stability and performance
- Front Suspension: SR Suntour XCM32 Boost DS, 120mm travel for smooth trail absorption
- Rear Suspension: Hardtail design for efficient climbing and reduced weight
- Drivetrain: Shimano Deore 10-speed drivetrain for precise and reliable shifting
- Brakes: Shimano MT200 hydraulic disc brakes for consistent stopping power
- Wheels: 29-inch wheels with Schwalbe Nobby Nic 2.6” tyres for grip and durability
- Other Feature: Tubeless-ready rims for improved puncture resistance and lower rolling resistance
- Finance Option: Available with 0% APR finance for flexible payment
Drive Information:
- Motor: Yamaha PW-S2, 250W, 75Nm of torque for seamless assistance
- Battery: Intube 720Wh battery for extended range and longer rides
- User Interface: Yamaha Side Switch for intuitive control and ride monitoring
The powerful Yamaha PW-S2 motor provides 75Nm of torque, giving you the confidence to tackle steep climbs and headwinds with ease. The 720Wh battery is seamlessly integrated into the frame, delivering plenty of range for all-day adventures. The intuitive Yamaha Side Switch display allows you to monitor battery life and adjust assistance levels on the go.
Shimano’s Deore 10-speed drivetrain offers smooth gear transitions, while the Shimano MT200 hydraulic disc brakes deliver reliable stopping power in all conditions. The 29-inch wheels, fitted with Schwalbe Nobby Nic tyres, provide excellent grip and stability on loose or rough surfaces, making this e-MTB an excellent choice for riders who crave adventure.
Whether you're hitting the trails or cruising through the countryside, the Haibike AllTrack 5 29 is designed to make every ride a memorable one. And with 0% APR finance options available, upgrading your riding experience has never been easier.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
| Fork | SR Suntour XCM32 Boost DS, steel spring/oil, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Headset | A-Head Tapered |
| Stem | XLC A-Head, A-head, Bar bore: 31.8mm |
| Bars | XLC 720mm |
| Front Brake | Shimano MT200, aluminium, 180mm |
| Rear Brake | Shimano MT200, aluminium, 180mm |
| Brake Lever | Shimano MT201, aluminium |
| Rear Mech | Shimano Deore M4120, 10-speed |
| Shifters | Shimano Deore M4100, trigger switch |
| Speed | 9 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Front Tyre | Schwalbe, Nobby Nic Performance, 65-622, 29" x 2.6" |
| Rear Tyre | Schwalbe, Nobby Nic Performance, 65-622, 29" x 2.6" |
| Seat Post | patent, 34.9mm, aluminium |
| Saddle | XLC MTB |
| Chainset | steel, 38T |
| Bottom Bracket | Integrated |
| Chain | KMC E10S |
| Cassette | Shimano M4100, 11-46 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Intube, PW S2 720Wh |
| Motor | Yamaha PW-S2, 250W, 75Nm, 25km/h |
| User Interface | Yamaha Side Switch |
Haibike AllTrack Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 45cm |
170 – 175 |
5’3” – 5’9” |
|
L / 50cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 55cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
Haibike AllTrack 2025 Geometry Chart
| Size | S 40 | M 45 |
|---|---|---|
| Stack | 624 | 633 |
| Reach | 405 | 437 |
| Head Tube Length | 125 | 135 |
| Head Tube Angle | 65° | 65° |
| Bottom Bracket Drop | 54 | 54 |
| Chainstay Length | 490 | 490 |
| Wheelbase | 1217 | 1253 |
| Top Tube Length (horizontal) | 574 | 610 |
| Seat Tube Length | 400 | 450 |
| Seat Tube Angle | 75° | 75° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
