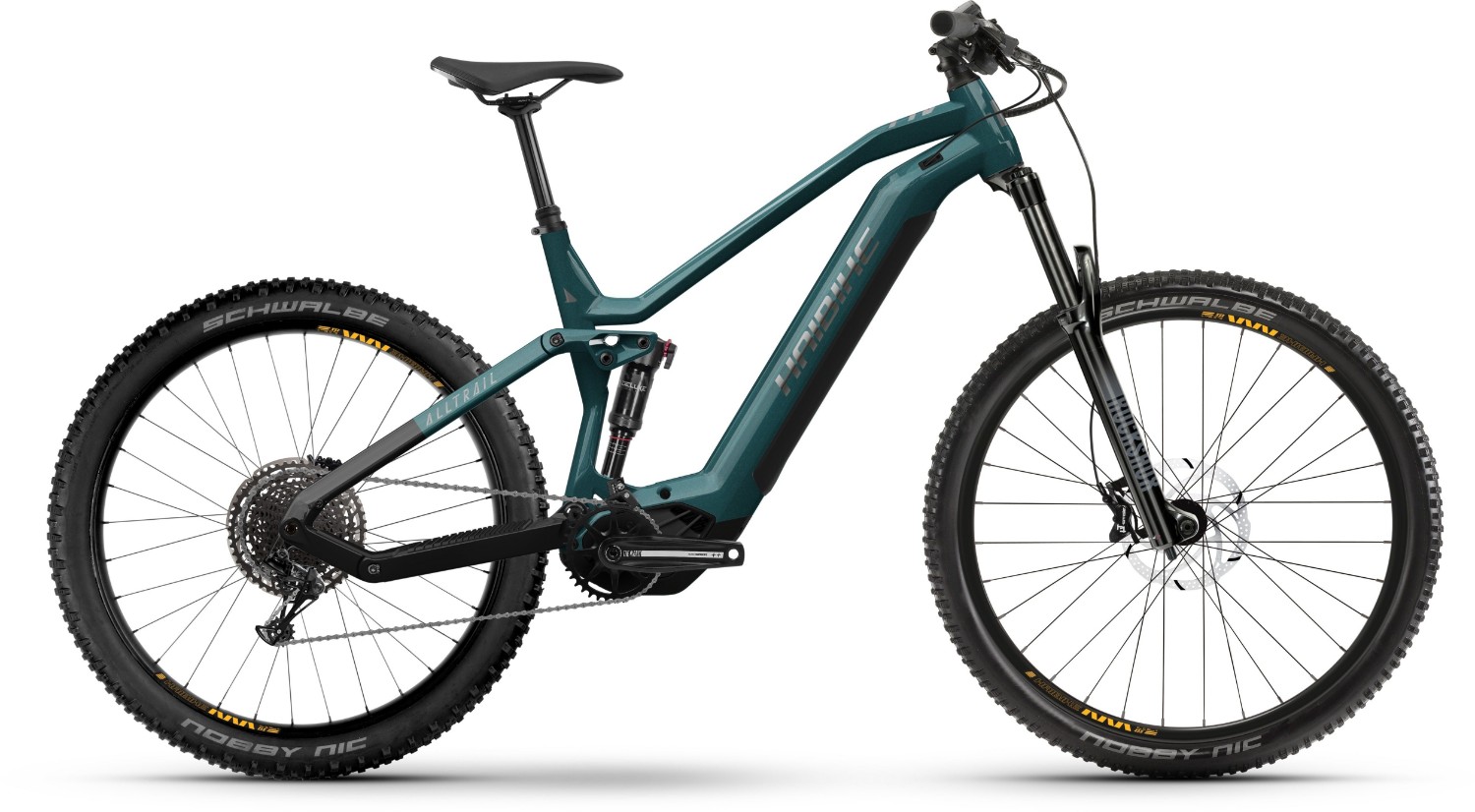

Haibike Alltrail 5 2024 - Electric Mountain Bike
The Haibike AllTrail 5 is your ultimate companion for mastering both steep uphills and demanding downhills on any terrain. With its full-suspension design and powerful Yamaha motor, it offers an exhilarating riding experience for adventurers seeking versatility and performance.
Key Features:
- Frame: Aluminium with through axle M12 (1.00) x 148mm, disc brake post mount, 140mm travel
- Front Suspension: RockShox 35 Silver, steel spring, tapered shaft, Boost thru-axle
- Rear Suspension: RockShox Deluxe Select Plus air shock
- Drivetrain: SRAM NX Eagle 11-speed
- Brakes: TRP Slate T4 hydraulic disc brakes
- Wheels: Rodi Tryp 30 aluminium rims, Schwalbe Nobby Nic tyres
- Standout Feature: Full-suspension design for versatile terrain tackling
- Available with 0% APR finance
Drive Information:
- Motor: Yamaha PW-S2, 250W, 75Nm
- Battery: InTube 720Wh capacity
- User Interface: Yamaha Side Switch remote for intuitive control
Powered by the Yamaha PW-S2 motor with 250W output and 75Nm of torque, this e-bike delivers impressive performance on both uphill climbs and downhill descents. The InTube 720Wh battery provides ample power for extended adventures, while the Yamaha Side Switch remote offers intuitive control over motor assistance levels.
Equipped with a reliable SRAM NX Eagle 11-speed drivetrain and TRP Slate T4 hydraulic disc brakes, the AllTrail 5 delivers smooth shifting and powerful stopping performance in all conditions. Paired with Rodi Tryp 30 aluminium rims and Schwalbe Nobby Nic tyres, this e-bike offers traction and durability on varied terrain.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, through axle M12 (1.00) x 148mm, disc brake Post Mount, Travel: 140mm |
| Fork | RockShox 35 Silver, steel spring, alum shaft 1 1/8" - 1 1/2" tapered, thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | Acros BlockLock |
| Stem | aluminum, A-head |
| Bars | Haibike Components TheBar ++ 780mm |
| Front Brake | TRP Slate T4, aluminium, 203mm |
| Rear Brake | TRP Slate T4, aluminium, 203mm |
| Brake Lever | TRP Slate T4, aluminium |
| Rear Mech | SRAM NX, 11-speed |
| Shifters | Sram NX, trigger switch |
| Speed | 11 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Alu Nabe |
| Rear Hub | Alu Nabe |
| Spokes | Sapim Race |
| Front Tyre | Schwalbe Nobby Nic Performance, 60-622 |
| Rear Tyre | Schwalbe Nobby Nic Performance, 65-584 |
| Seat Post | Haibike Components TheSeatpost ++, 31.6mm, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | steel, 38 |
| Bottom Bracket | Integrated |
| Chain | Sram NX |
| Cassette | Sram PG1130, 11-42 teeth |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | InTube 720 |
| Motor | Yamaha PW-S2, 250W, 75Nm, 25km/h |
| User Interface | Yamaha Side Switch |
Haibike AllTrail Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
XS / 38cm |
140 – 150 |
4’7” – 4’11” |
|
S / 42cm |
150 – 160 |
4’11” – 5’3” |
|
M / 46cm |
160 – 175 |
5’3” – 5’9” |
|
L / 50cm |
175 – 185 |
5’9” – 6’1” |
|
XL / 54cm |
185 - 195 |
6’1” – 6’5” |
What size frame do I need if I am between sizes? - read here
