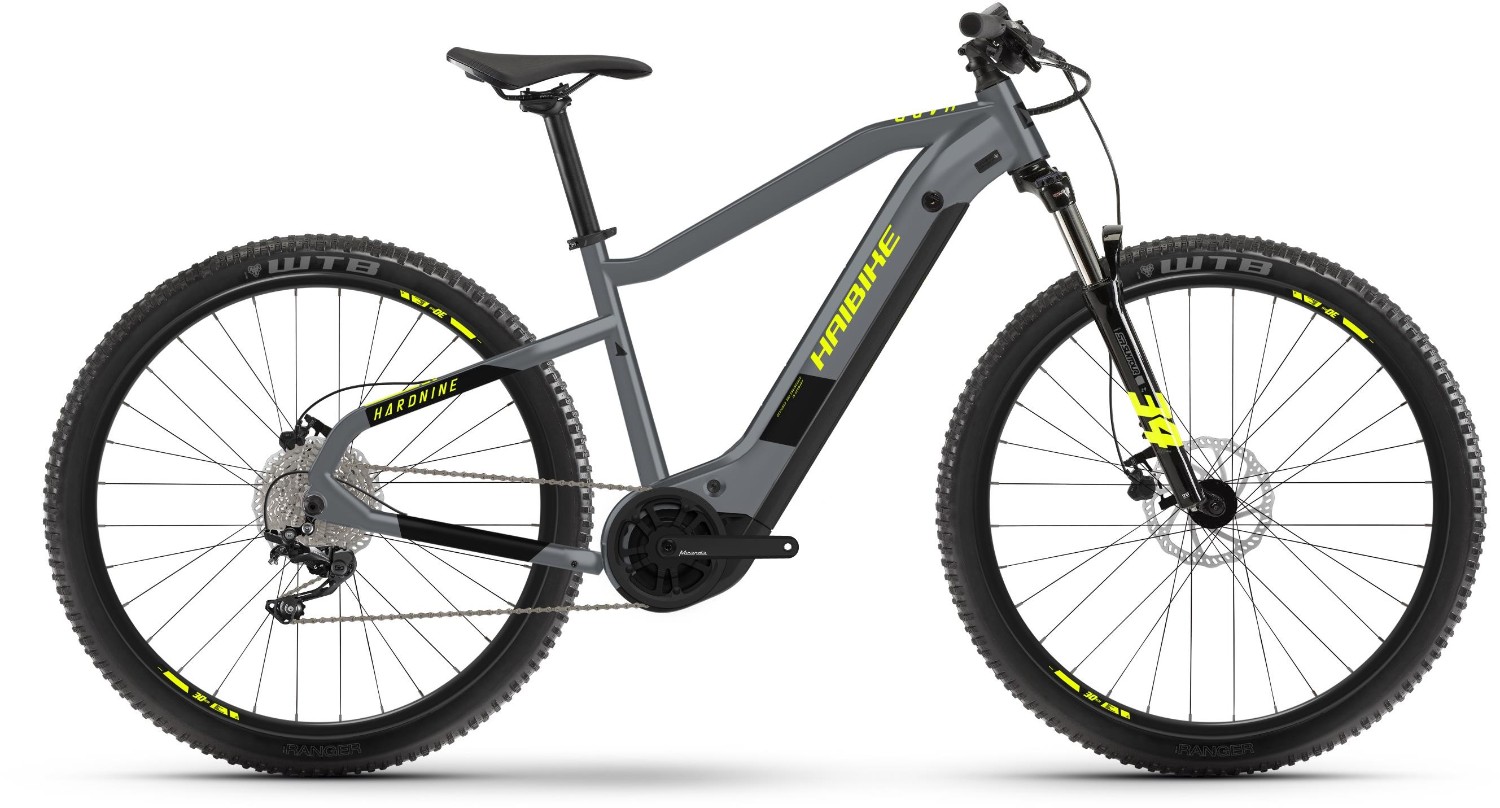

Haibike HardNine 6 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium 6061, Steckachse X-12 (1.00) x 148mm, disc brake Post Mount |
Fork | SR Suntour XCM34 NLO DS, steel spring/oil, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
Headset | A-Head Tapered |
Stem | XLC Alu, A-head |
Bars | XLC Topflat 740mm |
Front Brake | Tektro M275, 180mm |
Rear Brake | Tektro M275, 180mm |
Brake Lever | Tektro M275, aluminium |
Rear Mech | Shimano Deore M4100, 10-speed |
Shifters | Shimano Deore M4120, trigger switch |
Speed | 10 |
Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
Front Hub | Haibike Alunabe |
Rear Hub | Haibike Alu Nabe |
Spokes | Sapim Leader, black |
Front Tyre | WTB Ranger Comp, 65-622 |
Rear Tyre | WTB Ranger Comp, 65-622 |
Seat Post | XLC, patent, 31.6mm, aluminium |
Saddle | XLC MTB |
Chainset | Haibike forged Aluminium, Steel 38 teeth |
Bottom Bracket | Integrated |
Chain | KMC E10S |
Cassette | Shimano M4100, 11-42 teeth |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | InTube 630Wh |
Motor | Yamaha PW-ST System, 250W, 70Nm, 25km/h |
User Interface | Yamaha Side Switch |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
