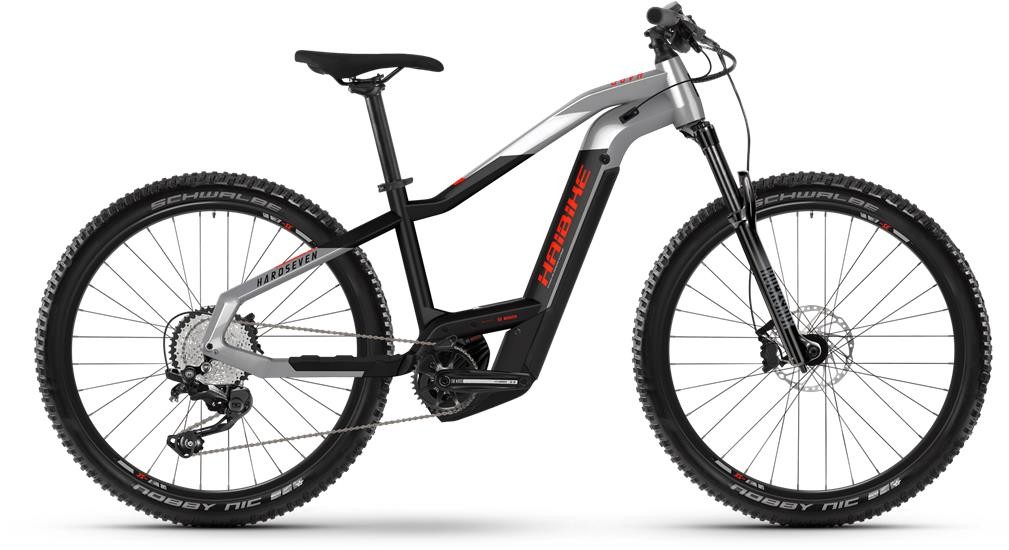

Haibike HardSeven 9 2023 - Electric Mountain Bike
The new HardSeven 9 is up for any adventure! Long rides with short trail detours, quick after-work laps or your daily commute to work - with the new compact and powerful Bosch Performance CX Gen 4 motor, the Shimano Deore 11-speed gear combination, 4-piston disc brakes and 120mm suspension travel, you are perfectly equipped for tours in easy terrain. With the Range Extender you can increase your range from 625Wh to a total of 1.125Wh capacity - riding fun with no limits!
Key Features:
- Frame Material - Aluminium
- Drive unit - Bosch Performance CX GEN4, 85Nm, 25km/h
- Battery - Bosch PowerTube 625Wh
- Fork
-
RockShox 35 Silver, Travel: 120mm
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium 6061, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 120mm |
Fork | RockShox 35 Silver, steel spring, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
Headset | A-Head Tapered |
Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 7˚ |
Bars | Haibike Components TheBar + Topflat 720mm |
Front Brake | Shimano MT420, aluminium, 203mm / Shimano MT420, aluminium, 180mm |
Rear Brake | Shimano MT420, aluminium, 203mm / Shimano MT420, aluminium, 180mm |
Brake Lever | Shimano MT401, aluminium |
Rear Mech | Shimano Deore M5100, 11-speed |
Shifters | Shimano Deore M5100, trigger switch |
Speed | 11 |
Rims | Rodi Tryp 35, eyed, double-walled rim, aluminium |
Front Hub | Shimano MT400-B |
Rear Hub | Shimano MT400-B |
Spokes | Sapim Leader, black |
Front Tyre | Schwalbe Nobby Nic Evo, 70-584 |
Rear Tyre | Schwalbe Nobby Nic Evo, 70-584 |
Seat Post | Haibike Components TheSeatpost ++, patent, 34.9mm, aluminium |
Saddle | XLC MTB |
Chainset | Haibike Components, The Crank ++, Aluminium, Steel, 38 teeth |
Bottom Bracket | Integrated in the motor |
Chain | KMC X11 |
Cassette | Shimano HG5100 (11-51T) |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | Bosch PowerTube 625Wh |
Motor | Bosch Performance CX GEN4, 250W, 85Nm, 25km/h |
User Interface | Bosch Purion |
Haibike HardSeven 2022 Size Chart
Size |
Height (cm) |
Height (Inches) |
S / 40cm |
158 - 167 |
5’2” – 5’6” |
M / 44cm |
167 - 177 |
5’6” – 5’10” |
L / 48cm |
178 - 188 |
5’10” – 6’2” |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike HardSeven 9 2023 - Electric Mountain Bike.
This product is no longer available.
