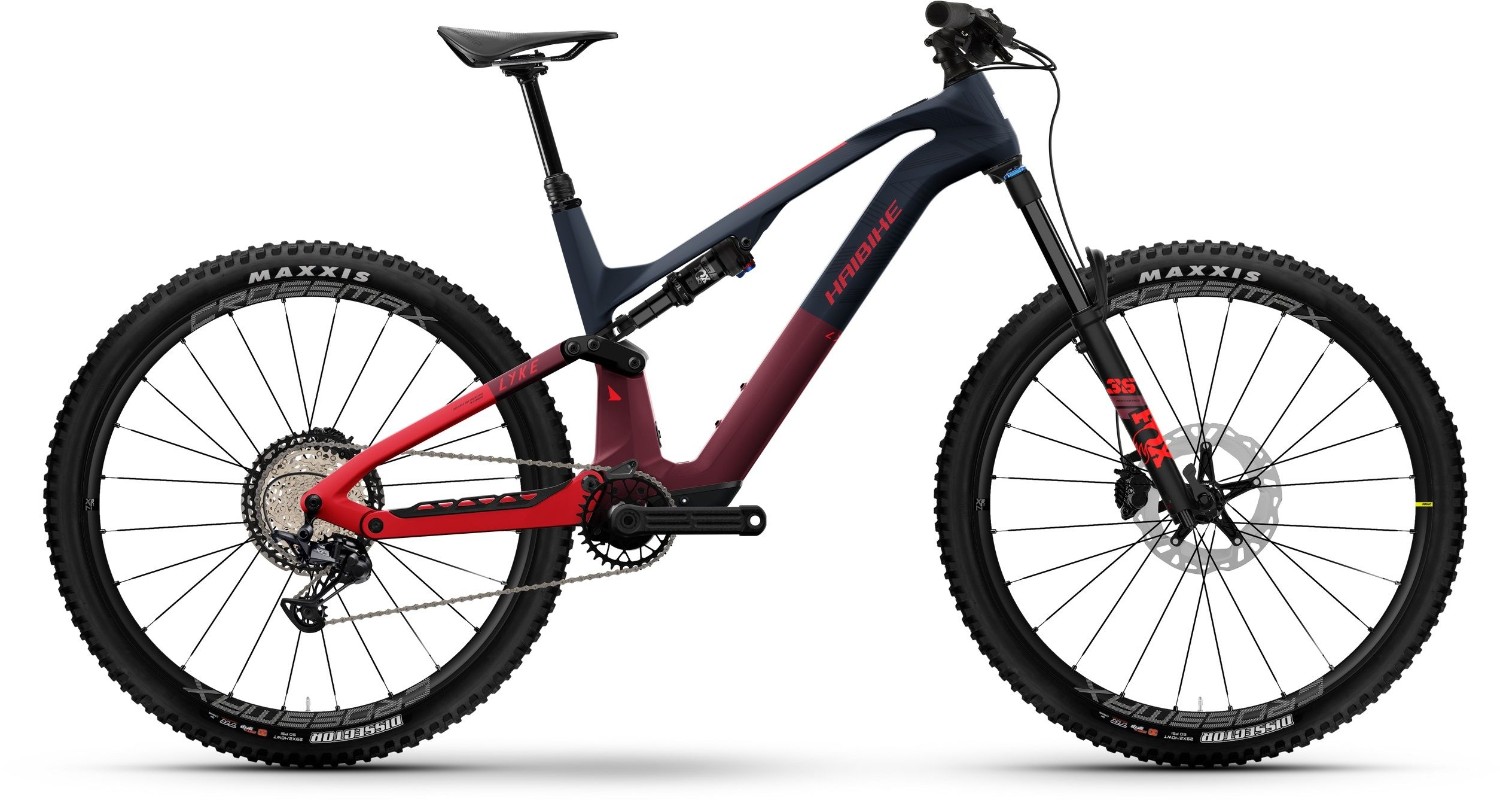

Haibike Lyke CF 11 2025 - Electric Mountain Bike
The Haibike Lyke CF 11 is a high-performance e-bike designed for versatile riding adventures. With its carbon frame and integrated Fazua Ride60 motor, it strikes the perfect balance between agility and power. The FOX 36 Float Performance fork and FOX Float Performance DPS EVOL rear shock provide 140mm of plush suspension travel, ensuring a smooth and controlled ride over rough terrain. Equipped with Shimano XT/SLX 12-speed gearing and Shimano XT M8100 brakes, it offers precise shifting and reliable stopping power. The Mavic E-Crossmax XL S wheelset paired with Maxxis Dissector tyres delivers excellent traction and stability, making it suitable for a wide range of riding conditions.
Key Features:
- Haibike Carbon Frame: Lightweight and durable carbon construction for enhanced performance.
- FOX Suspension: FOX 36 Float Performance fork and FOX Float Performance DPS EVOL rear shock provide 140mm of plush suspension travel.
- Fazua Ride60 Motor: Compact and powerful motor integrated into the seat tube for seamless assistance.
- Shimano XT/SLX Drivetrain: High-quality 12-speed gearing for smooth and reliable shifting.
- Shimano XT M8100 Brakes: Shimano XT hydraulic disc brakes offer precise control and stopping power.
- Mavic E-Crossmax XL S Wheelset: Durable and lightweight wheelset for agile handling and stability.
- Maxxis Dissector Tyres: Maxxis Dissector tyres offer excellent traction and grip on varied terrain.
- Available with 0%APR Finance
Drive Information:
- Motor: Fazua Ride60 motor with 250W power output and 60Nm of torque, reaching speeds up to 25km/h.
- Battery: Fazua Energy InTube battery with 430Wh capacity for long-lasting power.
- User Interface: Fazua LED Hub display for intuitive control and monitoring of ride data.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | carbon, through axle M12 (1.00) x 148mm, disc brake Post Mount, Travel: 140mm |
| Fork | FOX 36 Float Performance, air, Travel: 140mm, aluminum shaft 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | FOX Float DPS Performance EVOL, air |
| Headset | Acros BlockLock |
| Stem | XLC FlowBy, A-head, Bar bore: 31.8mm |
| Bars | XLC FlowBy 780mm |
| Front Brake | Shimano Deore XT M8120, 203mm / Shimano Deore XT M8120, 180mm |
| Rear Brake | Shimano Deore XT M8120, 203mm / Shimano Deore XT M8120, 180mm |
| Brake Lever | Shimano Deore XT M8100, aluminium |
| Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
| Shifters | Shimano Deore XT M8100, trigger switch |
| Speed | 12 |
| Rims | Mavic E- Crossmax XL S |
| Front Hub | Mavic E- Crossmax XL S |
| Rear Hub | Mavic E- Crossmax XL S |
| Front Tyre | Maxxis Dissector MaxxTerra EXO+, 62-622 |
| Rear Tyre | Maxxis Dissector MaxxTerra EXO, 62-622 |
| Seat Post | Dropper-Post Remote, telescope, 31.6mm, aluminium |
| Saddle | Selle Italia Model X |
| Chainset | aluminium, Rotor CNC, 32 |
| Bottom Bracket | Integrated |
| Chain | Shimano SLX M7100 |
| Cassette | Shimano M7100, 10-51 teeth |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | Fazua Energy InTube 430 |
| Motor | Fazua Ride60, 250W, 60Nm, 25km/h |
| User Interface | Fazua LED Hub |
Haibike Lyke 2025 Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
Haibike 2025 Geometry Chart
| Size | S 41 | M 44 | L 47 | XL 50 |
|---|---|---|---|---|
| Stack | 640 | 655 | 670 | 685 |
| Reach | 405 | 429 | 449 | 469 |
| Head Tube Length | 110 | 120 | 130 | 140 |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Bottom Bracket Drop | 35 | 35 | 35 | 35 |
| Fork Length | 557 | 557 | 557 | 557 |
| Fork Rake/Offset | 57 | 57 | 57 | 57 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1195 | 1220 | 1250 | 1275 |
| Top Tube Length (horizontal) | 560 | 592 | 620 | 650 |
| Seat Tube Length | 410 | 440 | 470 | 500 |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Wheel Size | 29 | 29 | 29 | 29 |
| Body Height (cm) | 158-170 | 168-179 | 177-187 | 185-197 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
