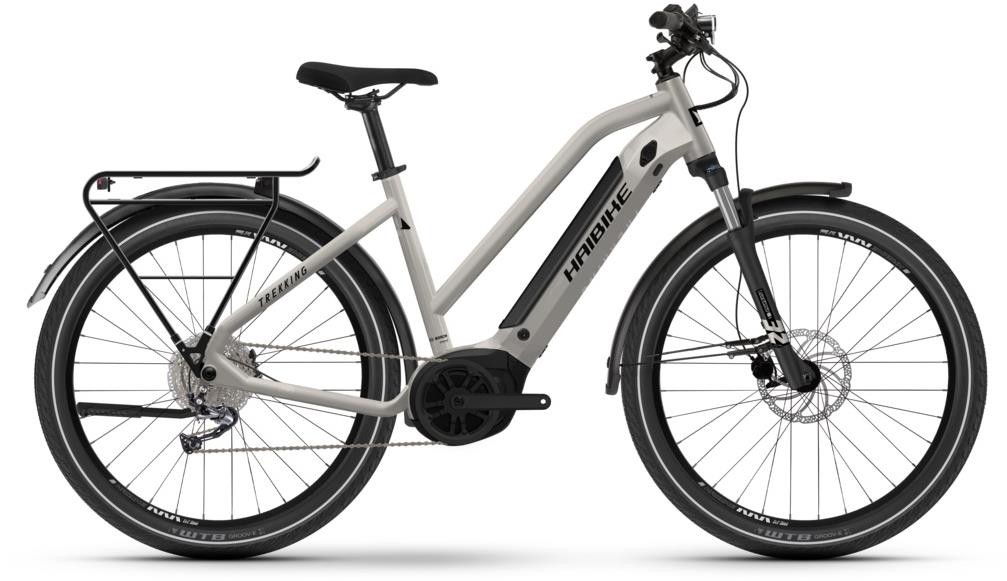

Haibike Trekking 3 Mid Womens 2025 - Electric Hybrid Bike
- Frame: Aluminium frame with a low step-through design for easy mounting and comfort
- Front Suspension: SR Suntour XCM ATB HLO fork with 65mm travel for added comfort on uneven terrain
- Rear Suspension: Hardtail design for efficient pedalling and lightweight performance
- Drivetrain: Shimano Alivio M3100 9-speed drivetrain for reliable and smooth gear changes
- Brakes: Alhonga HT474 hydraulic disc brakes for powerful and consistent stopping
- Wheels: 27.5-inch wheels with WTB Groov-E reflex tyres for grip and visibility
- Other Feature: Includes integrated lights, mudguards, and a pannier rack for practicality
- Finance Option: Available with 0% APR finance for flexible payment
- Motor: Bosch Performance Line Smart System, 250W, 75Nm for efficient pedal assistance
- Battery: Bosch PowerTube 500Wh for extended range
- User Interface: Bosch Intuvia 100 display with LED remote for easy control and feedback
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
| Fork | SR Suntour XCM ATB HLO, steel spring, Travel: 65mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Headset | A-Head Tapered |
| Stem | XLC A-Head, A-head, Bar bore: 31.8mm |
| Bars | XLC 720mm |
| Front Brake | Alhonga HT474, aluminium, 180mm |
| Rear Brake | Alhonga HT474, aluminium, 180mm |
| Brake Lever | Alhonga HT474, aluminium |
| Rear Mech | Shimano Alivio M3100, 9-speed |
| Shifters | Shimano Alivio M3100, trigger switch |
| Speed | 9 |
| Rims | Schürmann Yak25, eyed, double-walled rim, aluminium |
| Front Hub | Haibike TheHub ++ |
| Rear Hub | Haibike TheHub ++ |
| Spokes | Sapim Leader, black |
| Front Tyre | WTB Groov-E, 62-584, reflex |
| Rear Tyre | WTB Groov-E, 62-584, reflex |
| Seat Post | XLC, patent, 31.6mm, aluminium |
| Saddle | Selle Royal Wave |
| Chainset | steel, 38 |
| Bottom Bracket | Integrated |
| Chain | KMC e9S |
| Cassette | Shimano HG200, 11-36 teeth |
| Pedals | VP E461 aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 500 Charger - Bosch Standard Charger 4A |
| Motor | Bosch Performance Line Smart System, 250W, 75Nm, 25km/h |
| User Interface | Bosch Intuvia 100 + LED Remote |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
