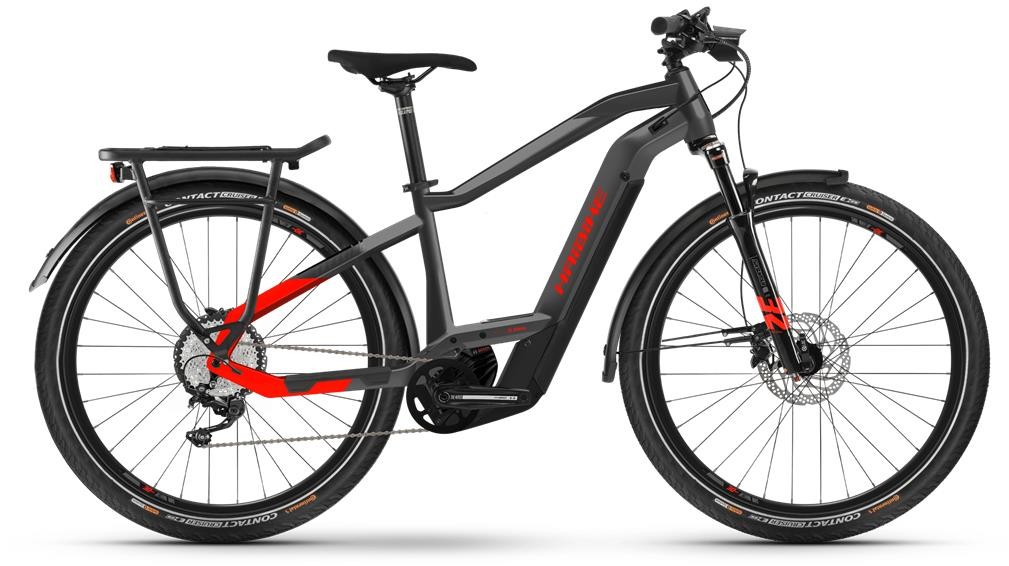

Haibike Trekking 9 2021 - Electric Hybrid Bike
The new Trekking 9 is your powerful supporter for all your adventures. The now even more powerful Bosch Performance CX Gen 4 motor, with a maximum torque of 85Nm, will not let you down even on steep climbs. Thanks to the high-volume tyres, you will reach your destination not only safely and quickly, but also with the necessary riding comfort. The Shimano Deore groupset and the SR Suntour suspension fork are robust components for many miles.
Key Features
- Frame material - Aluminium
- Drive unit - Bosch Performance CX GEN4, 85Nm, 25km/h
- Battery - Bosch PowerTube 625Wh
- Fork - SR Suntour Mobie 25 LOR, Travel: 100mm
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 100mm |
Fork | SR Suntour Mobie 25 LOR, air, Travel: 75mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle |
Headset | A-Head Alloy Tapered |
Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 12˚ |
Bars | Haibike Components TheBar ++ 740mm |
Front Brake | Shimano MT400, aluminium, 180mm |
Rear Brake | Shimano MT400, aluminium, 180mm |
Brake Lever | Shimano MT401, aluminium |
Front Mech | N/A |
Rear Mech | Shimano Deore M5100, 11-speed |
Shifters | Shimano Deore M5100, trigger switch |
Speed | 11 |
Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
Front Hub | Shimano MT400-B |
Rear Hub | Shimano MT410 |
Spokes | Sapim Leader, black |
Front Tyre | Continental Contact Cruiser, 60-584, reflex |
Rear Tyre | Continental Contact Cruiser, 60-584, reflex |
Seat Post | Haibike Components TheSeatpost ++, patent, 34.9mm, aluminium |
Saddle | Haibike Components TheSaddle |
Chainset | KMC X11 |
Bottom Bracket | Integrated in the motor |
Chain | KMC X11 |
Cassette | Shimano HG5100 (11-51T) |
Pedals | VP E461 aluminium, mit Reflektor |
Battery Size (WH) | Bosch PowerTube 625Wh |
Motor | Bosch Performance CX GEN4, 250W, 85Nm, 25km/h |
User Interface | Bosch Intuvia |
Haibike Trekking 9 2021 Size Chart
Size |
Height (cm) |
Height (Inches) |
S / 50cm |
161 - 170 |
5’3” – 5’7” |
M / 54cm |
170 - 179 |
5’7” – 5’11” |
L / 58cm |
179 - 188 |
5’11” – 6’2” |
XL / 62cm |
188 - 197 |
6’2” – 6’6” |
What size frame do I need if I am between sizes? - read here
