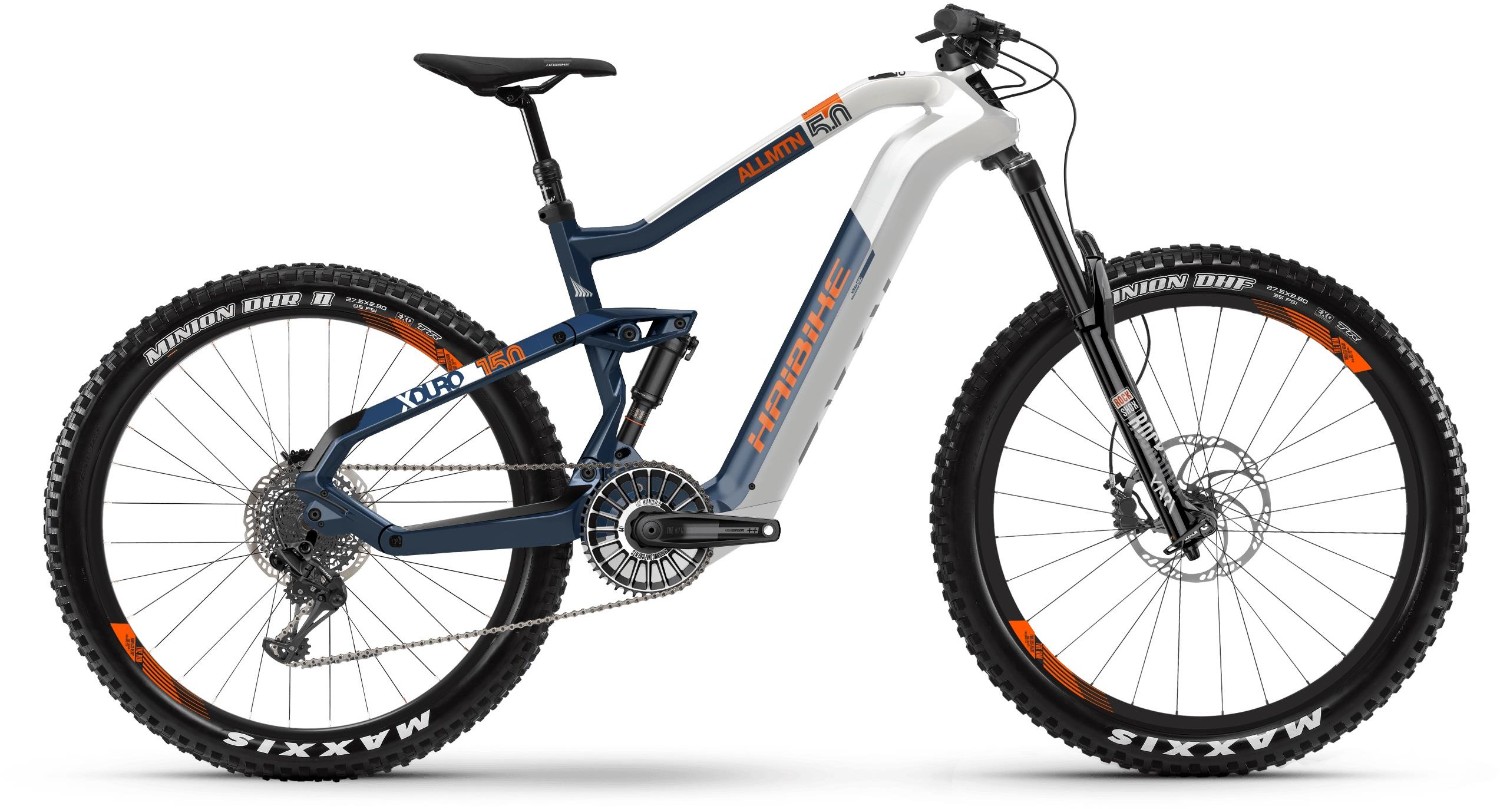

Haibike XDURO AllMtn 5.0 FlyOn 29" 2020 - Electric Mountain Bike

£5,299.00
Price Match
or £110.40 / month
Finance Options
Be the first to write a review
Sizing
Size
Colour
Add to Basket

Cycle to Work

Product Description

More power, so you can ride further and faster. The Haibike XDURO AllMtn 5.0 is an electric mountain bike that features the new FlyOn drive system. Offering up to 120Nm of torque combined with a long lasting 630Wh battery pack, this FlyOn equipped e bike offers more power than it’s competitors, so you can enjoy more trails.

Key Features:

  • Carbon full sus frame for full e bike integration
  • RockShox Yari RC fork for 150mm of plush suspension travel
  • RockShox Deluxe RT air shock shock controls the 150mm of rear wheel travel
  • SRAM NX 1x11 speed drivetrain for a very wide gear range
  • Magura MT5 hydraulic disc brakes for powerful speed control
  • Sizes:  41cm (Small), 44cm (Medium), 47cm (Large), 50cm (X Large)
  • Colour: White Blue Orange
  • The Haibike XDURO AllMtn 5.0 FlyOn is available with 0% APR finance

Drive Information:

  • Motor: Haibike FlyOn HPR 120s, 250w, 120Nm
  • Battery: Haibike Intube, 48V, 630Wh
  • User interface/remote: Haibike HMI system control and remote
  • Connectivity: eConnect smartphone app

XDURO represent the most extreme, cutting edge, innovation and performance focused eBikes on the planet. The 2019 XDURO line up has been re-invented once again, offering a wider range of options than ever before.

Our all-new long travel FLYON models were designed to get you to the top of your favourite trails faster than ever before, ready to shred back down, again, and again.

Whilst other motors struggle to stay over 15 km/h on steep climbs, our HPR 120S motor with 120 Nm of torque keeps you at a steady 25 km/h in the new XTREME mode! Flying uphill was never this fun before!

Highlights:

Haibike frame: We designed and engineered a completely new frame platform around the FLYON models, made of high-quality carbon and utilising a strong and sturdy form language. The Haibike ePerformance system was designed with the goal of achieving a high level of integration through the development of a new, space-saving mounting system for the battery. The battery is inserted longitudinally into a closed profile down tube, which allows for a lighter and more stable construction.

Haibike Motor: Conquer steep ascents, “fly” overtrails, explore new frontiers andextend them: An extra strong power package — made in Germany — ensures the necessary power when you need it, with perfect modulation possible through the five custom assist modes. Together with the technology supplier TQ we developed a dynamic motor that is the most powerful mid motor on the market at the moment providing up to 120 Nm torque. Thanks to it’s patented transmission the motor offers extreme power and efficiency in a compact package.

Haibike Chain Wheel: A specially constructed and designed Direct Mount chain ring is available with 38 or 42 teeth to give you an optimum cadence and transmit power to the drivetrain. The alternating narrow wide tooth design helps to lock the chain to the chainring and stops your chain falling off over rough terrain.

Haibike speed sensor disc: A newly developed speed sensor disc sends 18 signals per rotation of the wheel to the system and measures the speed 18 times more accurately than any other system available on the market.

Haibike eConnect system: Haibike Connect networks your eBike and makes it even smarter: GPS-based anti-theft monitoring, automatic emergency function, bike tracking and route recording and export.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on baskets over £99
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Carbon, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm
Fork:RockShox Yari RC air 150
Rear Shock:RockShox Deluxe RT air
Headset:A-Head Tapered aluminium mit Lenkanschlag Feimin FP-H858B Alloy 1,5" IS41/28,6 - IS52/39,8
Stem:Haibike Components TheStem 2 A-head JD-ST202A
Bars:Haibike Components The Bar +++ DI2 Holes 780 JD-MTB479AH.7
Front Brake:Magura MT5
Rear Brake:Magura MT5
Brake Lever:Magura MT5 HC-lever aluminium carbotecture
Rear Mech:Sram NX 11 Speed
Shifters:Sram NX
Speed:11
Rims:Rodi Tryp 30
Front Hub:Haibike Components TheHub ++ thru-axle 15x110mm Formula DC-511
Rear Hub:Haibike Components TheHub ++ Steckachse 12x148mm Formula EHL148S
Spokes:DT Swiss Industry black
Front Tyre:Maxxis Minion DHF, 63-622, 29" x 2.5", foldabl
Rear Tyre:Maxxis Minion DHR II, 71-584, 27.5" x 2.8", foldable
Seat Post:XLC AllMtn, Remote aluminium telescope 34.9 JD-YSP39PL
Saddle:Haibike Components TheSaddle 2058
Chainset:Haibike XDURO forged
Bottom Bracket:Integrated In Motor
Chain:Sram PC1110
Cassette:Sram PG1130 11 42
Pedals:MTB Platform pedal aluminium Feimin FP-969
Battery (Wh):630 Wh
Motor:Bosch
User Interface:Bosch Purion

There are currently no customer reviews

Write your own review

Xduro Allmtn Sizing

haibike logo

Haibike XDuro AllMtn 2020 Size Chart

Size

Height (cm)

Height (Inches)

S / 41cm

160 – 170

4’11” – 5’3”

M / 44cm

170 – 175

5’3” – 5’9”

L / 47cm

175 – 184

5’9” – 6’0”

XL / 50cm

180 - 193

5’11” – 6’4”



What size frame do I need if I am between sizes? - read here



Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
