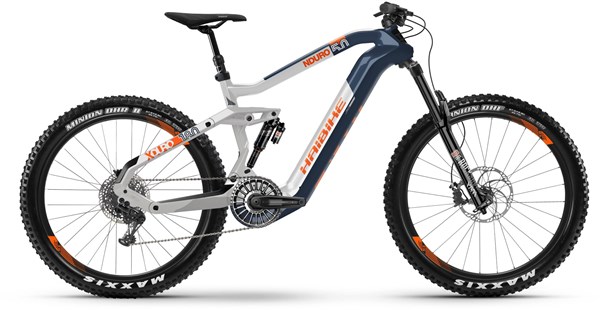

Haibike XDURO Nduro 5.0 FlyOn 27.5" 2020 - Electric Mountain Bike

Haibike XDURO Nduro 5.0 FlyOn 27.5" 2020 - Electric Mountain Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Electric Mountain Bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

XDURO represent the most extreme, cutting edge, innovation and performance focused eBikes on the planet. The 2019 XDURO line up has been re-invented once again, offering a wider range of options than ever before.

From the renowned Yamaha PW-X system, choice of experienced eMTBers everywhere, to the established Bosch CX platform, and now to the revolutionary FlyOn TQ equipped models – our Xduro models continue to set higher standards and push the boundaries of e-mountainbiking.

Our all-new long travel FLYON models were designed to get you to the top of your favourite trails faster than ever before, ready to shred back down, again, and again.

Whilst other motors struggle to stay over 15 km/h on steep climbs, our HPR 120S motor with 120 Nm of torque keeps you at a steady 25 km/h in the new XTREME mode! Flying uphill was never this fun before!

Key Features:

  • Haibike Frame: We designed and engineered a completely new frame platform around the FLYON models, made of high-quality carbon and utilising a strong and sturdy form language. The Haibike ePerformance system was designed with the goal of achieving a high level of integration through the development of a new, space-saving mounting system for the battery. The battery is inserted longitudinally into a closed profile down tube, which allows for a lighter and morestable construction.
  • Haibike Motor: Conquer steep ascents, “fly” overtrails, explore new frontiers andextend them: An extra strong power package — made in Germany — ensures the necessary power when you need it, with perfect modulation possible through the five custom assist modes. Together with the technology supplier TQ we developed a dynamic motor that is the most powerful mid motor on the market at the moment providing up to 120 Nm torque. Thanks to it’s patented transmission the motor offers extreme power and efficiency in a compact package.
  • Haibike Chain Wheel: A specially constructed and designed Direct Mount chain ring is available with 38 or 42 teeth to give you an optimum cadence and transmit power to the drivetrain. The alternatting narrow wide tooth design helps to lock the chain to the chainring and stops your chain falling off over rough terrain.
  • Haibike speed sensor disc: A newly developed speed sensor disc sends 18 signals per rotation of the wheel to the system and measures the speed 18 times more accurately than any other system available on the market.
  • Haibike Flip-Chip: All full-suspended FLYON models have a so-called flip-chip, an aluminium part which enables relocating the mounting position of the damper by 9mm and thus changing the characteristics of the bike. By adjusting the steering angle by 1° and changing the bottom bracket height by 10mm, you get a bike aimed to Downhill or All-round.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Carbon, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 180mm
Fork:RockShox Yari RC air 180
Rear Shock:RockShox Super Deluxe RC3 air
Headset:A-Head Tapered aluminium mit Lenkanschlag Feimin FP-H858B Alloy 1,5" IS41/28,6 - IS52/39,8
Stem:Haibike Components TheStem 2 A-head JD-ST202A
Bars:Haibike Components The Bar +++ DI2 Holes 780 JD-MTB479AH.7
Front Brake:Magura MT5
Rear Brake:Magura MT5
Brake Lever:Magura MT5 HC-lever aluminium carbotecture
Rear Mech:Sram NX 11 Speed
Shifters:Sram NX
Speed:11
Rims:Rodi Tryp 35
Front Hub:Haibike Components TheHub ++ thru-axle 15x110mm Formula DC-511
Rear Hub:Haibike Components TheHub ++ Steckachse 12x148mm Formula EHL148S
Spokes:DT Swiss Industry black
Front Tyre:Maxxis Minion DHF 66-584
Rear Tyre:Maxxis Minion DHR II 66-584
Seat Post:XLC AllMtn, Remote aluminium telescope 34.9 JD-YSP39PL
Saddle:Haibike Components TheSaddle 2058
Chainset:Haibike Components The Crank ++ HB19
Bottom Bracket:Integrated In Motor
Chain:Sram PC1110
Cassette:Sram PG1130 11 42
Pedals:MTB Platform pedal aluminium Feimin FP-969
Battery (Wh):630 Wh
Motor:Flyon
User Interface:Flyon The Display
