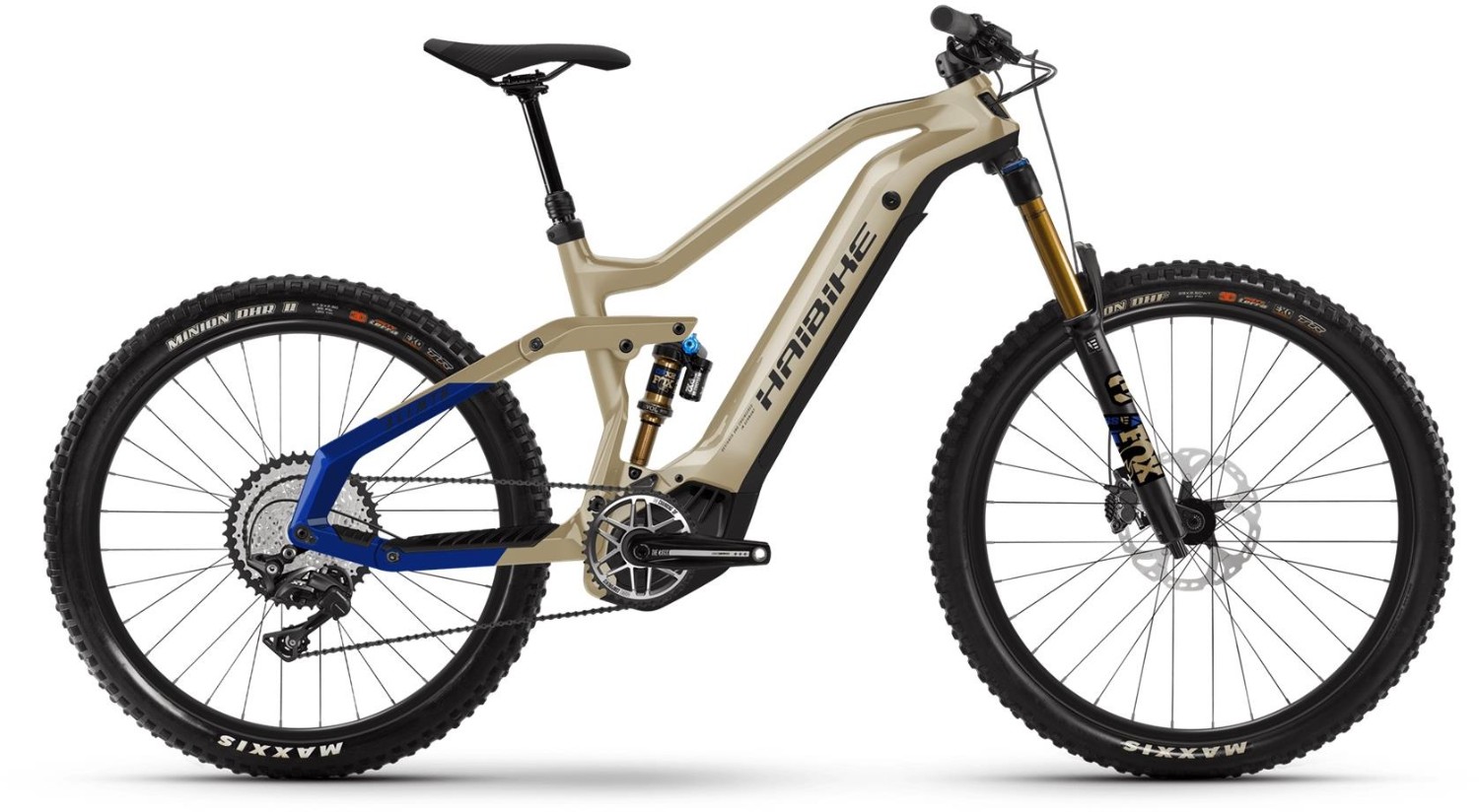

Haibike xDuro AllMtn 7 2021 - Electric Mountain Bike
The new 2021 Haibike AllMtn 7, made of robust and light full carbon, offers you uncompromising ePerformance on the trail: thanks to the completely revised modern geometry and kinematics, this full suspension convinces with its easy handling. The new Yamaha PW-X2 motor offers significantly improved support at higher cadences and the larger 600Wh battery provides even more range for long rides. The wheel size mix ensures optimum traction uphill and good rollover behaviour downhill. With the 160mm FOX Kashima chassis and Shimano Deore XT shifting and braking components, you are perfectly equipped for every trail and can master jumps or new lines safely and confidently.
Key Features
- Frame material - Full Carbon
- Drive unit - Yamaha PW-X2, 80Nm, 25km/h
- Battery - Yamaha InTube 600Wh
- Fork - FOX 38 Factory Kashima, Travel: 160mm
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | carbon, SkidPlate, Integrated Motor, UD-Carbon Frame, FullCarbon Interface, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm |
Fork | FOX 38 Factory Kashima, air, Travel: 160mm |
Rear Shock | FOX DPX2 Factory Kashima, air |
Headset | Acros BlockLock |
Stem | Haibike Components TheStem 2, A-head, Bar bore: 31.8mm |
Bars | Haibike Components TheBar +++ Gravity 780mm |
Front Brake | Shimano Deore XT M8120, 203mm |
Rear Brake | Shimano Deore XT M8120, 203mm |
Brake Lever | Shimano Deore XT M8100, aluminium |
Front Mech | N/A |
Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
Shifters | Shimano Deore XT M8100, trigger switch |
Speed | 12 |
Rims | Syntace V30i, eyed, double-walled rim, aluminium |
Front Hub | Syntace V Hub |
Rear Hub | Syntace V Hub |
Spokes | Syntace Straight Pull butted |
Front Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 71-584 |
Rear Tyre | Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 71-584 |
Seat Post | Haibike Components Dropper-Post Remote 31.6, telescope, aluminium |
Saddle | Selle Royal Vivo |
Chainset | Shimano SLX M7100 |
Chain | Shimano SLX M7100 |
Cassette | Shimano M7100 (10-51T) |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | Yamaha InTube 600Wh |
Motor | Yamaha PW-X2, 250W, 80Nm, 25km/h |
User Interface | Yamaha Side Switch |
Haibike XDURO ALLMTN 2021 Size Chart
Size | Height cm | Height inch |
41 | 164 - 175 | 5'4 - 5'8 |
44 | 170 - 178 | 5'7 - 5'10 |
47 | 175 - 185 | 5'8 - 6'1 |
51 | 180 - 188 | 5'11 - 6'2 |
Haibike XDURO ALLMTN 2021 Geometry
FRAME SIZE | 41 | 44 | 47 | 51 |
---|---|---|---|---|
SEAT TUBE ANGLE | 74.0 degrees | 74.0 degrees | 74.0 degrees | 74.0 degrees |
SEAT TUBE OFFSET (MM) | 12.0 mm | 12.0 mm | 12.0 mm | 12.0 mm |
SEAT ANGLE | 75.0 degrees | 75.0 degrees | 75.0 degrees | 75.0 degrees |
HEAD TUBE LENGTH | 110.0 mm | 110.0 mm | 130.0 mm | 130.0 mm |
HEAD TUBE ANGLE | 65.5 degrees | 65.5 degrees | 65.5 degrees | 65.5 degrees |
TOP TUBE HORIZONTAL | 570.0 mm | 600.0 mm | 630.0 mm | 660.0 mm |
CHAIN STAY LENGTH | 470.0 mm | 470.0 mm | 470.0 mm | 470.0 mm |
BOTTOM BRACKET DROP | -25.0 mm | -25.0 mm | -25.0 mm | -25.0 mm |
WHEELBASE | 1196.0 mm | 1226.0 mm | 1259.0 mm | 1289.0 mm |
STACK | 629.0 mm | 629.0 mm | 647.0 mm | 647.0 mm |
REACH | 402.0 mm | 432.0 mm | 457.0 mm | 487.0 mm |
STAND-OVER HEIGHT | 84.0 cm | 83.0 cm | 85.0 cm | 86.0 cm |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike xDuro AllMtn 7 2021 - Electric Mountain Bike.
This product is no longer available.
