The AllMtn models are some of the best all-rounders in our lineup. With 150 mm of travel, plus tires and aggressive geometry, the XDURO AllMtn can help you climb the most demanding trails, find your groove flowing down singletracks and still shred the downhills with confidence.
The Haibike SkidPlate:
Especially eMTBs often suffer from impacts or stone chipping which damage the low-situated motor severly. Therefore, we were the first manufacturer to introduce the SkidPlate back in 2012, a protection element which protects the bottom side of the motor.
Bottom side protection
Here the concept of a 'sacrifice part' applies: Similar to a helmet, the SkidPlate absorbs impact forces by deformation or destruction which would otherwise damage the significantly more expensive motor.
Plastic as ideal raw material
This is why we also use a special, shock-resistant plastic. This material conducts the incoming forces very well but stays dimensionally stable even under severe deformation at the same time compared to other materials which do not switch back to their original shape after deformation. The production in the corresponding colour perfectly hide scratches and smaller damage. If required, the SkidPlate can simply and cheaply be exchanged.
The double chain ring option:
Yamaha, as one of a few drive unit manufacturers, offers the possibility of a double chain ring.
Bigger speed ranges
Here, the rider benefits from an increased transmission spectrum, compared to single sprockets. Whether riding in low gears in mountainous areas, with high transmission down the hills or on long rides, the rider, as well as the system, stay in the ideal cadence range.
The Haibike Gravity Casting interface:
It is the heart of the frame: the motor interface. Here, many crucial functions such as motor mount, rocker and damper mount, as well as the interlocking battery and lower connection. A robust frame is based on a sturdy interface.
Casting technique known from the motorcycle industry
Therefore, since 2010, we use a casting technique which is known from the motorcycle industry, the so-called Gravity-Casting technique. In this process, negative forms made of compressed sand are placed in big forms. These sand froms are then filled with an alloy of alu and zinc and afterwards rotate in precisely calculated axes. Due to gravity, the alloy spreads evenly and results in an even casting thickness.
Light, robust and precise
Thanks to this procedure, extremely robust components can be produced which are then exposed to an extensive X-ray control in order to achieve the casting seal of approval. A subsequent, computer-controlled postprocessing ensures stable precision.
The new Yamaha PW-X drive unit
The new compact and more powerful Yamaha PW-X motor was designed and developed for demanding ePerformance use. In comparison to the PW motor, its weight was reduced by nearly 400g to 3.1 kg, as well as its size, which was reduced by -13%.
An additional support level provides more power all the way up to high cadence ranges of 120 revolutions per minute. Despite having torque of up to 80Nm, the PW-X system provides a smooth, more silent and more natural driving experience. All rotating parts have been optimized with a focus on weight reduction.
As a result of the lower inertia caused by this weight reduction, these parts can move with greater efficiency relative to the input from your pedals. Combined with the new refined freewheel design which creates a rapid engagement of the cranks, the result is a significantly more responsive motor, which provides a new level of a natural riding feel.
The YAMAHA LCD-X Display:
The new, compact display of Yamaha LCD-X Systems offers a variety of information and functions, in spite of its small construction size.
This includes the selection and display of the support levels. Furthermore, it displays information about the battery charge, the remaining range, driving, average, and maximum speed as well as the daily and total distance. Time and the current cadence can also be displayed.
All functions can be conveniently controlled via a remote control which also offers a pushing aid up to a walking Speed of 6 km/h. A Bluetooth interface provides convenient digital connectivity. Practical: an LED in different colours indicates the currently selected level of assistance!
- Drive unit: Yamaha PW-X System, 250W, 80Nm, 25km/h
- Display: Yamaha LCD - X
- Battery: Yamaha Lithium Ion, 500 Wh
- Charger: Yamaha quick charger 4A

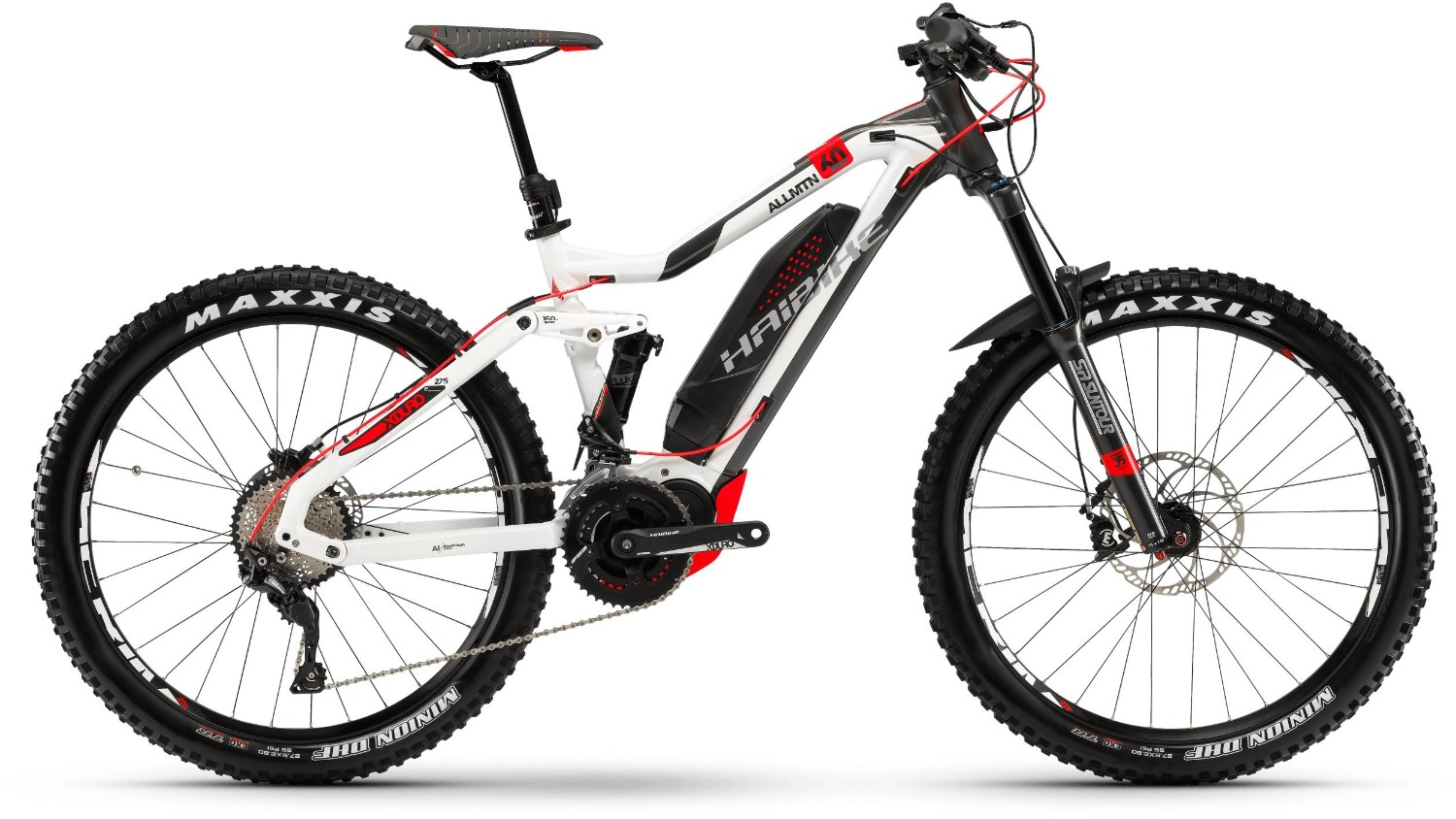

The Haibike xDuro Allmtn 6.0 27.5"+ 2018 Features are:
Frame: Aluminium 6061, Gravity Casting Interface, hydroformed, Tapered head tube, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm
Fork: SR Suntour Aion 35 RC, air, Travel: 150mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, thru-axle
Rear Shock: RockShox Deluxe RT, air
Headset: A-Head Tapered, Cartridge, aluminium
Bars: Haibike Components TheBar ++ 780mm
Stem: Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 12°
Front Mech: Shimano Deore M6000
Rear Mech: Shimano Deore M6000
Shifters Shimano Deore M6000, rapidfire
Chainset: FSA, 32-44, aluminium
Cassette: SunRace CSMS2, 11-40 teeth
Chain: KMC X10
Front Brake: Magura MT32, 203mm, hydraulic disc brakes
Rear Brake: Magura MT32, 180mm, hydraulic disc brakes
Rims: Rodi TR35, with eylets, aluminium
Front Hub: Haibike Components TheHub ++ thru-axle 15x110mm
Rear Hub: Haibike Components TheHub ++ thru-axle 12x148mm
Spokes: DT Swiss Industry, black
Tyres: Maxxis Minion DHF, 70-584 Front - Maxxis Minion DHR II, 70-584 Rear
Seatpost: XLC AllMtn, Remote, telescope, 31.6mm
Pedals: Haibike Freeride-Pedal, aluminium
Occasionally without notice, manufacturers sometimes change product specifications
