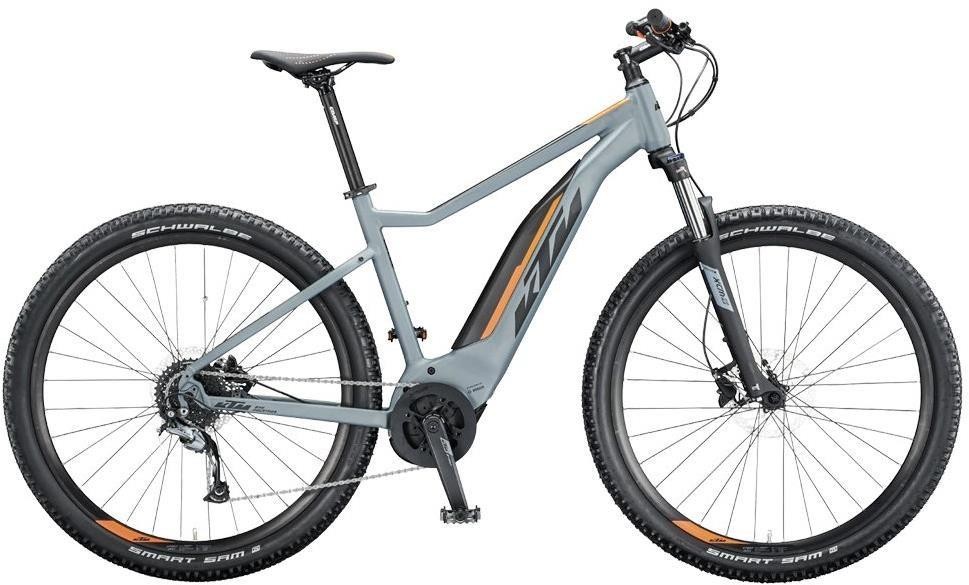

KTM Macina Ride 291 29" 43cm 2020 - Electric Mountain Bike
The Macina Ride comes in both 29 and 27.5 wheel sizes and 2 spec options. All versions of the Macina Ride feature Bosch's new Activeline plus motor, which provides near silent assistance and is controlled by the Purion display. The top spec (291 / 271) is supplied with a 500wh battery, whilst the lower spec (292/272) features the 400wh version.
The bike is "LFC" ready, so can easily be upgrade with lights, mudguards and a rack, if you are looking for the bike to be more utility, than sport. Click here for the details of what "LFC" means
The new UnderCover frame hides the classic style frame mounted Bosch battery.
The Macina Ride is the perfect bike for anyone looking for entry level MTB adventures whilst also being a great for commuting or more urban activities where the larger tyres and MTB spec offer more comfort and robust components over a more traditional hybrid style bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Macina MTB 29" |
| Fork | Suntour XCM-ATB coil 29" NLO 100mm |
| Stem | KTM Comp ST-92A, 7° |
| Bars | KTM Comp HB-RB11L, rizer-15-9°, 680 |
| Front Brake | Shimano MT200 / 180mm |
| Rear Brake | Shimano MT200 / 180mm |
| Rear Mech | Shimano Acera M3000 |
| Shifters | Shimano Acera |
| Speed | 9 |
| Rims | Ambrosio sport 23mm, 32H |
| Front Tyre | Schwalbe Smart Sam, 57-622, K-Guard |
| Rear Tyre | Schwalbe Smart Sam, 57-622, K-Guard |
| Seat Post | KTM Line SP-612N 30.9/350 |
| Saddle | KTM VL-3381 |
| Chainset | KTM Delta 170mm (mini-ISIS) 38T |
| Bottom Bracket | Integrated |
| Chain | Shimano CNE6070-9 E-Bike |
| Cassette | Shimano HG200-9 black 11-36 |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerPACK 500Wh |
| Motor | Bosch ACTIVE PLUS Gen.3 - 25km/h (50Nm) |
| User Interface | Bosch PURION LCD Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
