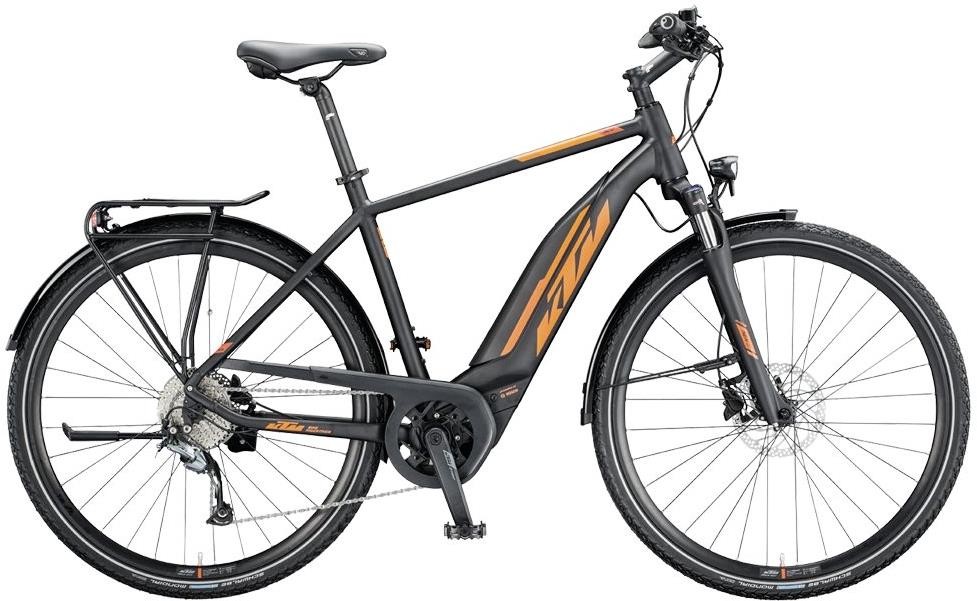

KTM Macina Sport 520 HE 2020 - Electric Hybrid Bike
KTM proves its many years of experience in touring bikes again and again! The latest technologies and production standards, as well as high-quality and carefully selected components, ensure safety, comfort and have made the fully equipped e-trekking models bestsellers for years. The reduced and sporty shape offers high suitability for everyday use and results, among other things, from the integrated stand holder, fully integrated speed sensor and internal ropes, cables and wires. No matter whether for sporty, extended cycling trips or the daily way to work - you are guaranteed to find the right companion here!
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Macina Trekking Onroad Alloy |
| Fork | Suntour NEX-E25 coil NLO 63mm |
| Stem | KTM Comp |
| Bars | KTM Comp |
| Front Brake | Shimano MT200 2-Piston |
| Rear Brake | Shimano MT200 2-Piston |
| Rear Mech | Shimano Acera M3000-9 SGS |
| Shifters | Shimano Altus M2010 |
| Speed | 9 |
| Rims | KTM Line – Shimano Acera M3050 |
| Front Tyre | Schwalbe Marathon Mondial Perf tires. RaceGuard 42-622 |
| Rear Tyre | Schwalbe Marathon Mondial Perf tires. RaceGuard 42-622 |
| Seat Post | KTM Team 30.9 |
| Saddle | Selle Royal Rio+ |
| Chainset | KTM Comp ISIS 170mm |
| Bottom Bracket | Intregrated |
| Cassette | Shimano M7000-11 11-46 |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerPACK 500Wh |
| Motor | Bosch Performance CX Gen. 4 - 25km / h (75Nm) |
| User Interface | Bosch INTUVIA LCD |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
