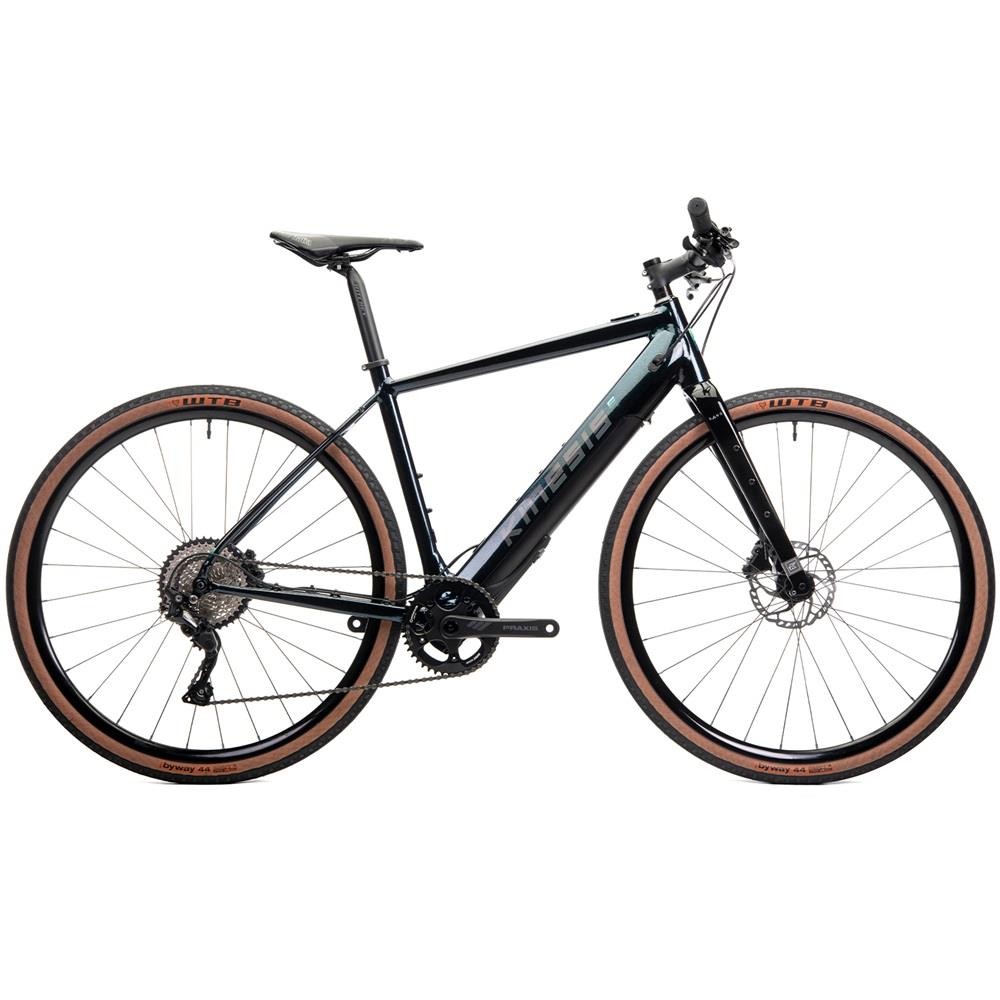

Kinesis Range Flat Bar 2020 - Electric Hybrid Bike
Enjoy every moment on two wheels
RANGE Flat Bar is an elegant electric fitness bike that makes light work of hills and allows you to travel faster, further and more frequently than ever before. It features a lightweight Aluminium frame paired with the excellent Fazua Evation motor system, for a carefree and enjoyable experience on every journey.
Fazua Motor: There when you need it
The Fazua system kicks in below 15.5mph, providing you with up to 400 Watts of assistance, offering you a welcome helping hand when moving off from a standstill, or taking on hills. Above 15.5mph, the Fazua motor seamlessly decouples from the drivetrain, so you can push on without any extra resistance. With three customisable levels of assistance and an integrated top tube remote, you remain in complete control of the level of power that you need. Need to go further? Spare batteries are available and easy to change, so you can carry as much battery as you need.
Take it all on…
RANGE is equipped with award winning Shimano Deore gears and brakes, for smooth faultless shifting and powerful controlled braking. The inclusion of high volume all-terrain tyres means that RANGE is perfectly equipped for journeys off road, whether it’s a canal path, or a trip into the woods.
Regardless of whether you ride for fun, fitness or exploration, RANGE is a rewarding ride that is the perfect complement to a modern lifestyle. Empower you riding and reach further with the RANGE fitness E-bike.
Key Features:
- Aluminium Frame with 50C Tyre Clearance.
- Galactic Iridescent Paint Job.
- Full Carbon RANGE Fork with Luggage Mounting Points.
- Fazua Evation Drive System with Top Tube Remote.
- Removable 252Wh Battery.
- Rack and Mudguard Compatible.
- Shimano Deore 1x10 Drivetrain.
- Shimano hydraulic brakes.
- Weight: 14.9kg (size medium).
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Kinesis RANGE |
Fork | Kinesis Range Carbon Fork |
Headset | FSA no.42 Cartridge Bearing |
Stem | Ritchey 4-Axis |
Bars | Ritchey MTN Rizer Trail |
Front Brake | Shimano BR-300 |
Rear Brake | Shimano BR-300 |
Rear Mech | Shimano Deore |
Shifters | Shimano Deore 1x10 |
Speed | 10 |
Rims | Sector GCe E-Specific |
Front Tyre | WTB Riddler 700x45c TCS Light |
Rear Tyre | WTB Riddler 700x45c TCS Light |
Seat Post | Ritchey 2-Bolt |
Saddle | Selle Italia X3 |
Chainset | Praxis Alloy E-Crank 42r Ring |
Cassette | Shimano CS-HG500 11-42 |
Pedals | Basic Resin Flat |
Battery Size (WH) | 252wh |
Motor | Fazua Evation |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
