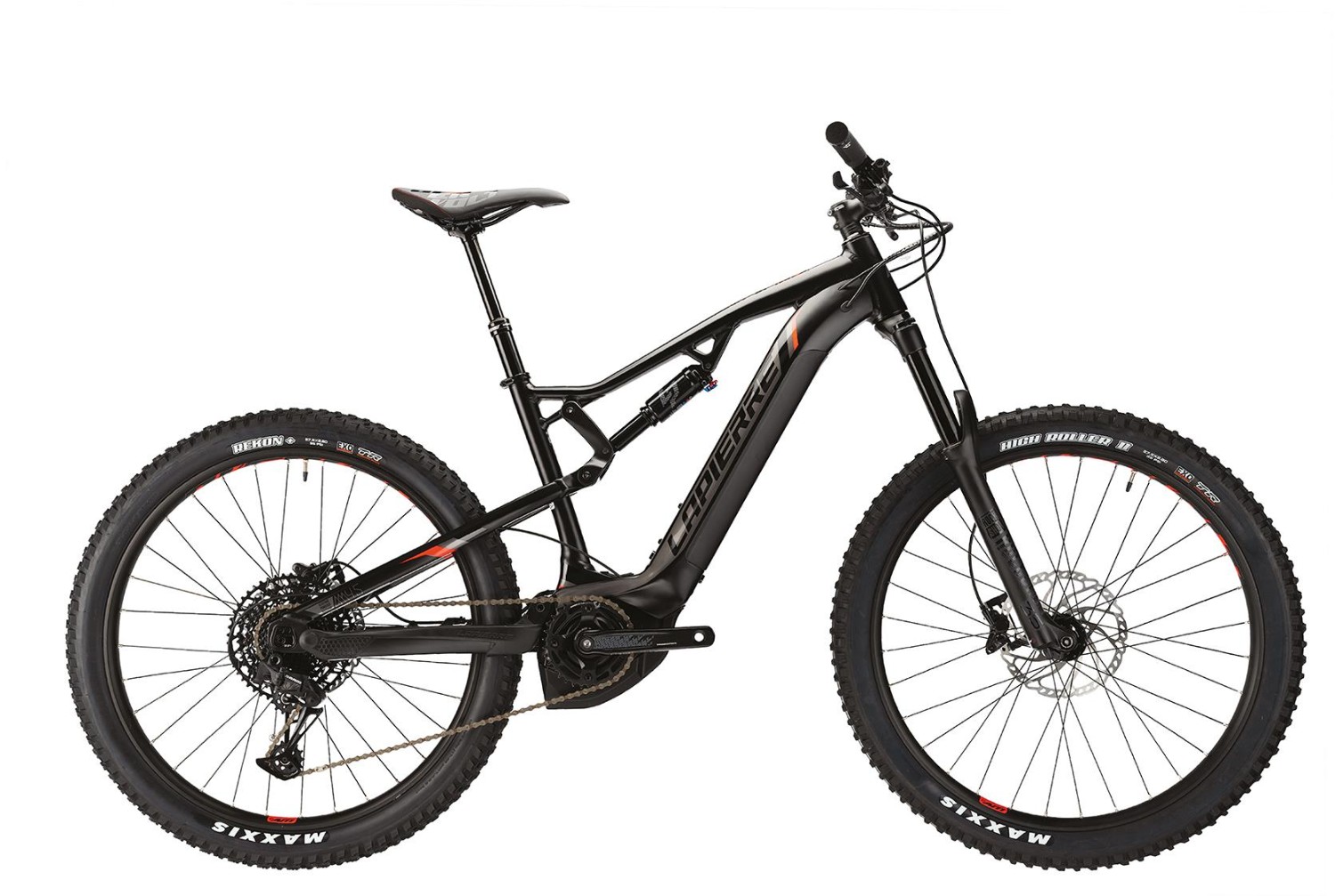

Lapierre Overvolt AM 4.5 2020 - Electric Mountain Bike

If you are shopping for an electric bike that resembles a mountain bike in every way, then the integrated Overvolt AM is the model for you. Its integrated, and thus invisible, battery provides you with the assistance needed to navigate anywhere. Its 150 mm of clearance both front and back, associated with the OST+ suspension, will ensure that you experience the true sensations of a mountain bike, with that little extra boost. This bike offers outstanding versatility and easily adapts to the rider's level of competence.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | OVERVOLT OST+ 150mm INTEGRATED YAMAHA SUPREME 5 ALLOY |
| Fork | ROCKSHOX 35 GOLD RL BOOST 15x110MM 29'' 150MM TRAVEL (E-MTB decals) |
| Rear Shock | LAPIERRE METRIC 210x47.5 |
| Headset | FSA Orbit 1.5 ZS NO.57SC |
| Stem | Lapierre Alloy Ø: 31.8mm L: 50mm (S, M, L, XL) |
| Bars | Lapierre Alloy 6061DB W: 760mm R: 15mm Ø: 31.8mm |
| Front Brake | Shimano MT401 with Shimano RT66 203mm |
| Rear Brake | Shimano MT401 with Shimano RT66 203mm |
| Brake Lever | Shimano MT401 |
| Front Mech | 0 |
| Rear Mech | SRAM SX Eagle 12 Spd |
| Shifters | SRAM SX 12 Spd |
| Speed | 12 |
| Rims | Lapierre eAM+ 32H 584-35c |
| Front Hub | SHIMANO MT400 THRU AXLE |
| Rear Hub | Shimano MT400 Thru Axle |
| Front Tyre | MAXXIS 27.5x2.8 HIGH ROLLER II TUBELESS READY |
| Rear Tyre | MAXXIS 27.5x2.8 HIGH ROLLER II TUBELESS READY |
| Seat Post | Lapierre DROPPER by JD 130mm travel (100m on S) Ø: 31.6mm L: 350mm |
| Saddle | LAPIERRE by VELO |
| Chainset | Lapierre OVERVOLT YAMAHA 170mm |
| Chain | SRAM SX Eagle |
| Cassette | SRAM PG1210 Eagle 11-50T |
| Pedals | VP VPE-527 |
| Battery Size (WH) | 500wh |
| Motor | Yamaha PW-ST |
Overvolt AM Sizing
See the table below to find the right size Lapierre Overvolt AM.
|
Size |
Height
|
|
S |
150 – 170 |
|
M |
168 – 178 |
|
L |
177 – 186 |
|
XL |
> 184 |
Read our bike size guide for more information on sizing.
Overvolt AM Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube Length (cm) |
39 |
43 |
46 |
50 |
|
Top Tube (cm) |
585 |
600 |
620 |
645 |
|
Head Angle |
65 |
65.5 |
65.5 |
65.5 |
|
Seat Angle |
75.5 |
75.5 |
75.5 |
75.5 |
|
Chainstay |
445 |
445 |
445 |
445 |
|
Head Tube |
120 |
130 |
140 |
150 |
|
Bottom Bracket |
-15 |
-10 |
-10 |
-10 |
|
Reach |
429 |
442 |
459 |
482 |
|
Stack |
605 |
612 |
621 |
630 |
