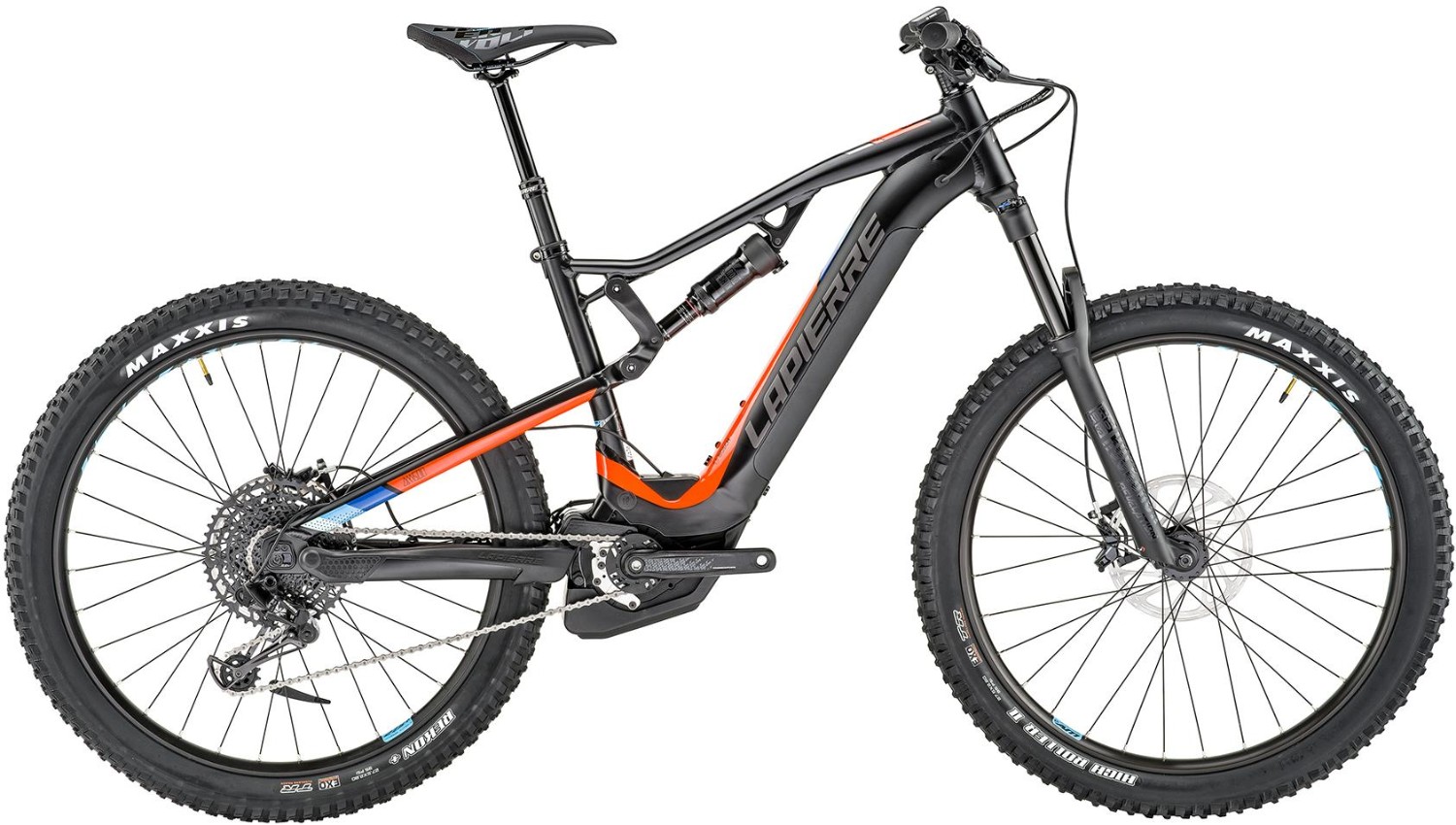

Lapierre Overvolt AM 600I 500Wh 2019 - Electric Mountain Bike

If you're shopping for an electric bike that resembles a mountain bike in every way, then the integrated Lapierre Overvolt AM is the model for you. Its integrated, and thus invisible, battery offers you with the assistance needed to navigate anywhere. Its 150 mm of clearance both front and back, associated with the OST+ suspension, will ensure that you experience the true sensations of a mountain bike, with that little extra boost. This bike offers outstanding versatility and easily adapts to the its rider's level of competence.
The Lapierre Overvolt AM 600i comes equipped with the new Bosch Powertube 500 battery, which perfectly integrates into the frame a sophisticated lithium-ion technology combined with a compact and elegant aluminium design. Featuring the new E-MTB mode, the level of assistance is automatically adapted to optimise battery autonomy.
Drive Information:
- Motor: Bosch
- Battery: Bosch Powertube 500Wh
- User Interface/remote: Bosch Purion
Accessories have been carefully selected to satisfy all requirements inherent in an electrically-assisted mountain bike, like oversized tires offering the rider added skid resistance and comfort, associated with wheels dedicated to the Overvolt line, strengthened well beyond those of non-motorized models. Its Supreme 5 aluminium frame serves to keep weight low and enhance reliability, two keys to the success of this type of bike.
The Overvolt AM 600i+ is fitted with an 11-50 SRAM NX cassette, associated with a 1 x 11-speed transmission and a SRAM NX EAGLE derailleur, allowing you to easily ascend all the climbs while preserving battery autonomy. The 200mm SRAM brakes will ensure you maintain a degree of secured control despite the bike's heavier build and increased power.
Moreover, the Overvolt AM 600i is fitted with a telescopic seat post controlled from the handlebars to facilitate descents and crossings. Thanks to the integrated technology, you'll also have the option of adding a bottle holder on the downtube.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Overvolt OST+ 150mm Integrated Bosch Supreme 5 Alloy Boost |
| Fork | Rockshox Revelation Rc Motion Control 29'' Boost 15X110 150mm Travel |
| Headset | FSA Orbit 1.5 ZS NO.57SC |
| Stem | Lapierre As-M05 Ø: 31.8mm L: 35mm (S,M), 45mm (L,Xl) |
| Bars | Lapierre Mtb479A 6061DB W: 760mm R: 15mm Ø: 31.8mm |
| Front Brake | SRAM Guide T |
| Rear Brake | SRAM Guide T |
| Rear Mech | SRAM NX Eagle |
| Shifters | Sram NX Eagle Single Click 12S |
| Rims | Lapierre eAM+ 32H 584-35c |
| Front Hub | Formula Sealed Bearings 15X110 Boost 32H |
| Rear Hub | Formula Sealed Bearings 12X148 Boost Shimano Driver 32H |
| Front Tyre | Maxxis 27.5X2.8 High Roller II |
| Rear Tyre | Maxxis Rekon+ Exo Protection Tubeless Ready |
| Seat Post | Lapierre YSP-15L Dropper 125mm Travel (100M On S) Ø: 31.6mm L: 350mm |
| Chain | SRAM NX Eagle PowerLock |
| Cassette | SRAM NX Eagle 11-50T |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500 Wh |
| Motor | Bosch |
| User Interface | Bosch Purion |
Overvolt AM Sizing
See the table below to find the right size Lapierre Overvolt AM.
|
Size |
Height
|
|
S |
150 – 170 |
|
M |
168 – 178 |
|
L |
177 – 186 |
|
XL |
> 184 |
Read our bike size guide for more information on sizing.
Overvolt AM Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube Length (cm) |
39 |
43 |
46 |
50 |
|
Top Tube (cm) |
585 |
600 |
620 |
645 |
|
Head Angle |
65 |
65.5 |
65.5 |
65.5 |
|
Seat Angle |
75.5 |
75.5 |
75.5 |
75.5 |
|
Chainstay |
445 |
445 |
445 |
445 |
|
Head Tube |
120 |
130 |
140 |
150 |
|
Bottom Bracket |
-15 |
-10 |
-10 |
-10 |
|
Reach |
429 |
442 |
459 |
482 |
|
Stack |
605 |
612 |
621 |
630 |
